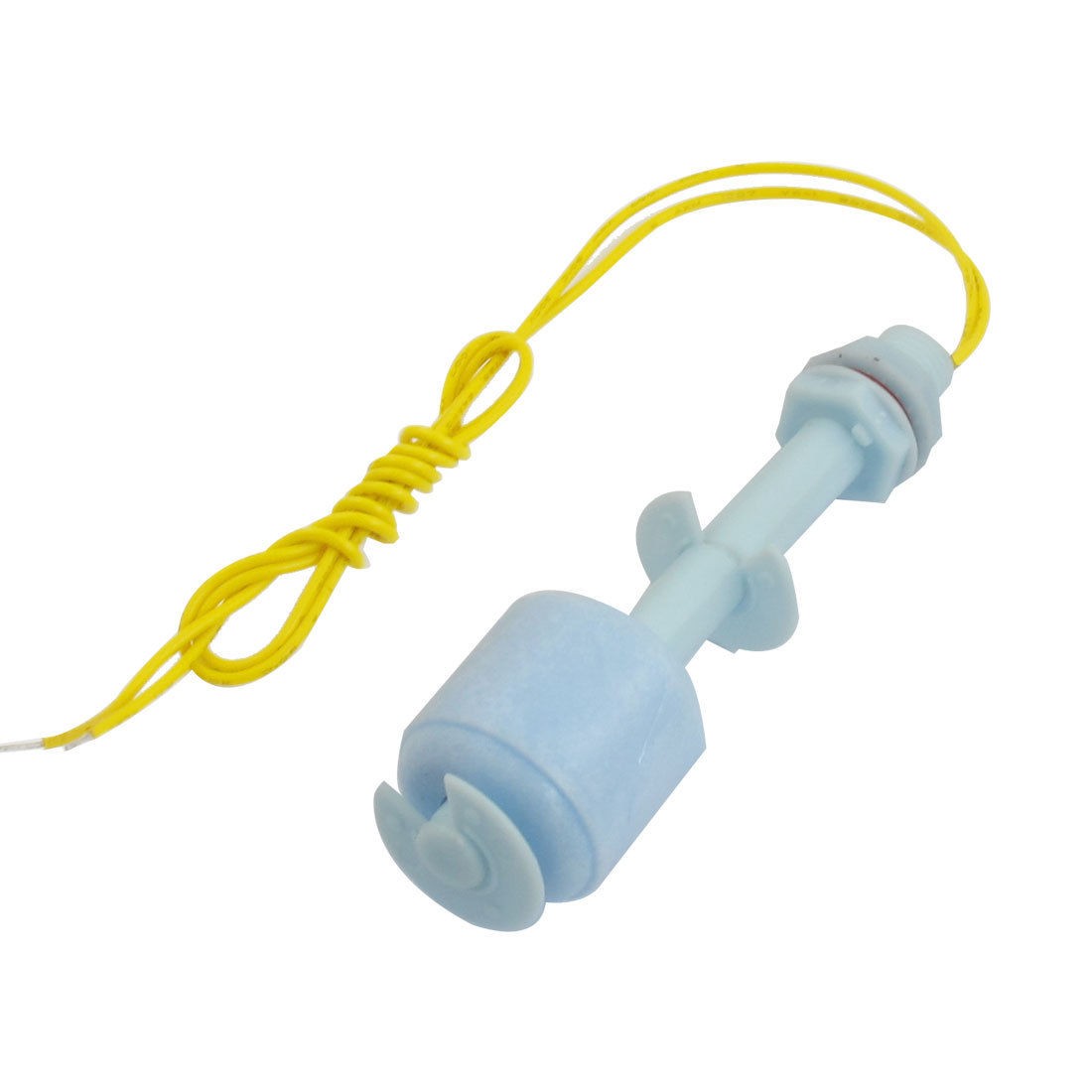

ZP7510-P SPST Blue Tank Pool Liquid Water Level Sensor Vertical Float Switch

ZP7510-P SPST Blue Tank Pool Liquid Water Level Sensor Vertical Float Switch

More Views

ZP7510-P SPST Blue Tank Pool Liquid Water Level Sensor Vertical Float Switch
$4.23

Availability: In stock

OR
Description

Details

ZP7510-P SPST Blue Tank Pool Liquid Water Level Sensor Vertical Float Switch

Product Name Water Level Sensor
Model ZP7510-P
Contacts SPST

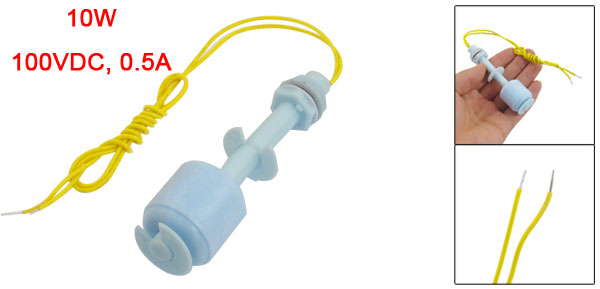

Max Contact Rating
10W
Max Switch Voltage 100V DC
Max Switch Current 0.5A
Max Breakdown Voltage 220VDC
Max Working Current 1A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +85 Degree
Float Ball Material PP
Float Body Material PP
Float Ball Size 24 x 25mm / 0.96" x 0.97"(D*H)
Screw Thread Diameter 9.5mm / 0.37"
Retaining Clip Diameter 20mm / 0.79"
Body Total Length 11.4cm / 4.5"
Cable Length 34cm / 13.4"
Color Blue, Yellow
Weight 18g
Package Content 1 x Water Level Sensor
