  • White Wired PP 22x24mm Water Level Sensor Vertical Liquid Float Switch

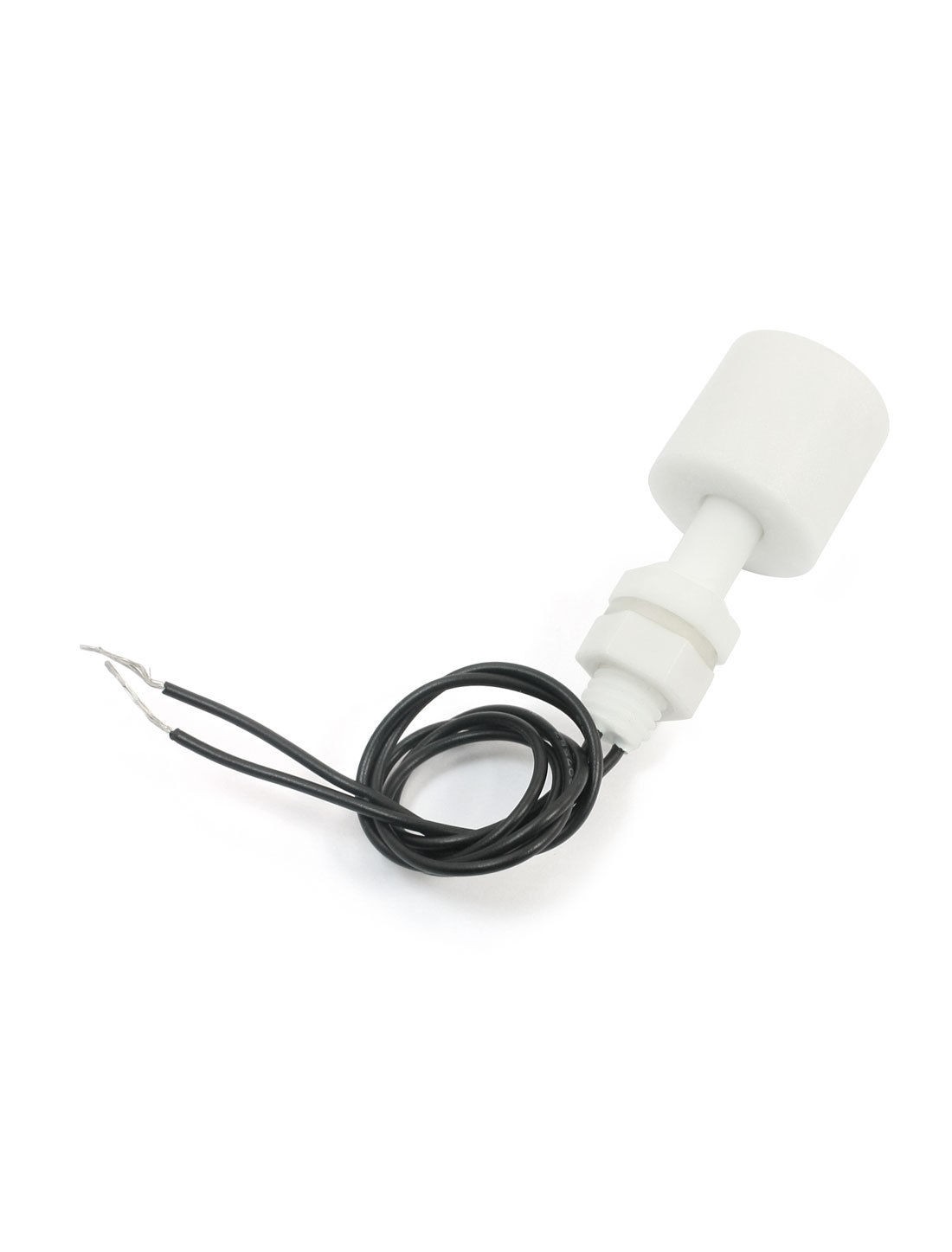

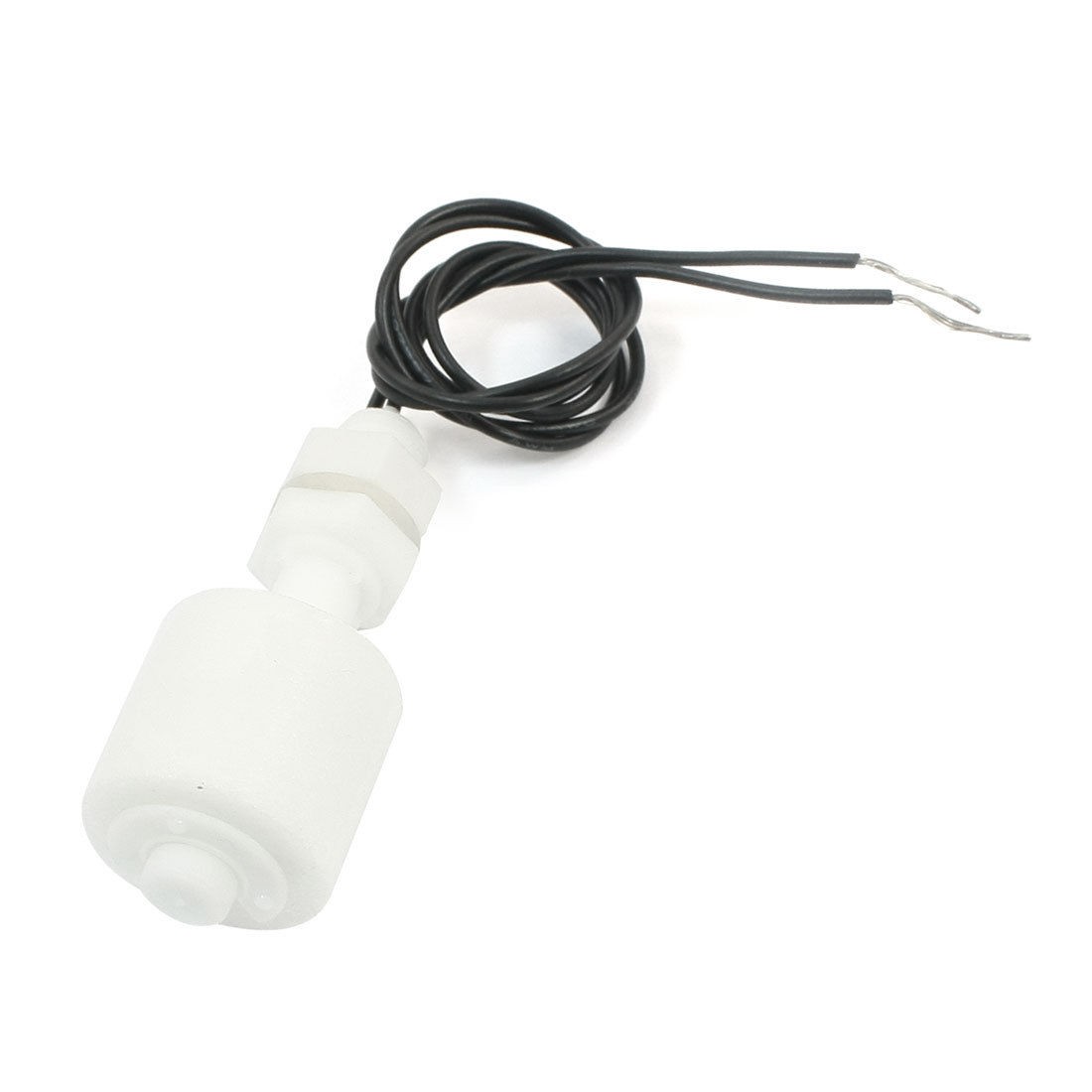

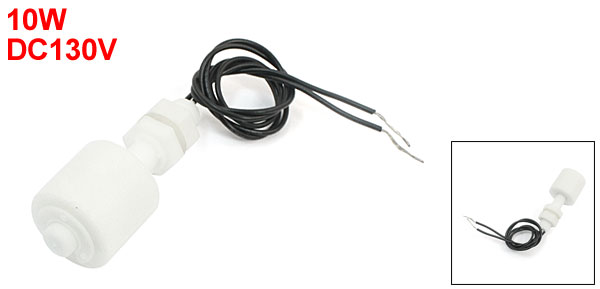

White Wired PP 22x24mm Water Level Sensor Vertical Liquid Float Switch

White Wired PP 22x24mm Water Level Sensor Vertical Liquid Float Switch

More Views

White Wired PP 22x24mm Water Level Sensor Vertical Liquid Float Switch
$4.48

Availability: In stock

OR
Description

Details

White Wired PP 22x24mm Water Level Sensor Vertical Liquid Float Switch

Product Name Float Switch
Max Contact Rating
10W
Max Switching Voltage DC130V
Model SEN-PPI35
Max Switching Current 0.5A
Max Breakdown Voltage DC220V
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / +85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 22 x 24mm / 0.87" x 0.94"(L*D)
Thread Dia(Approx) 10mm / 0.4"
Hex Nut Diameter 14.5mm / 0.57"
Bottom Clip Dia(Approx) 17mm / 0.67"
Body Total Length 60mm / 2.4"
Cable Length 30cm / 11.8"
Color White, Black
Net Weight 15g
Package Content 1 x Float Switch
