White Liquid Water Level Sensor Vertical Float Floating Switch

White Liquid Water Level Sensor Vertical Float Floating Switch

More Views

White Liquid Water Level Sensor Vertical Float Floating Switch
$4.26

Availability: In stock

OR
Description

Details

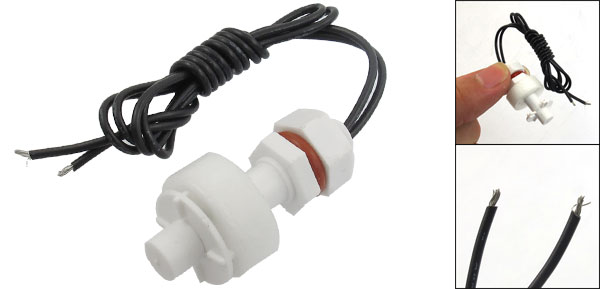

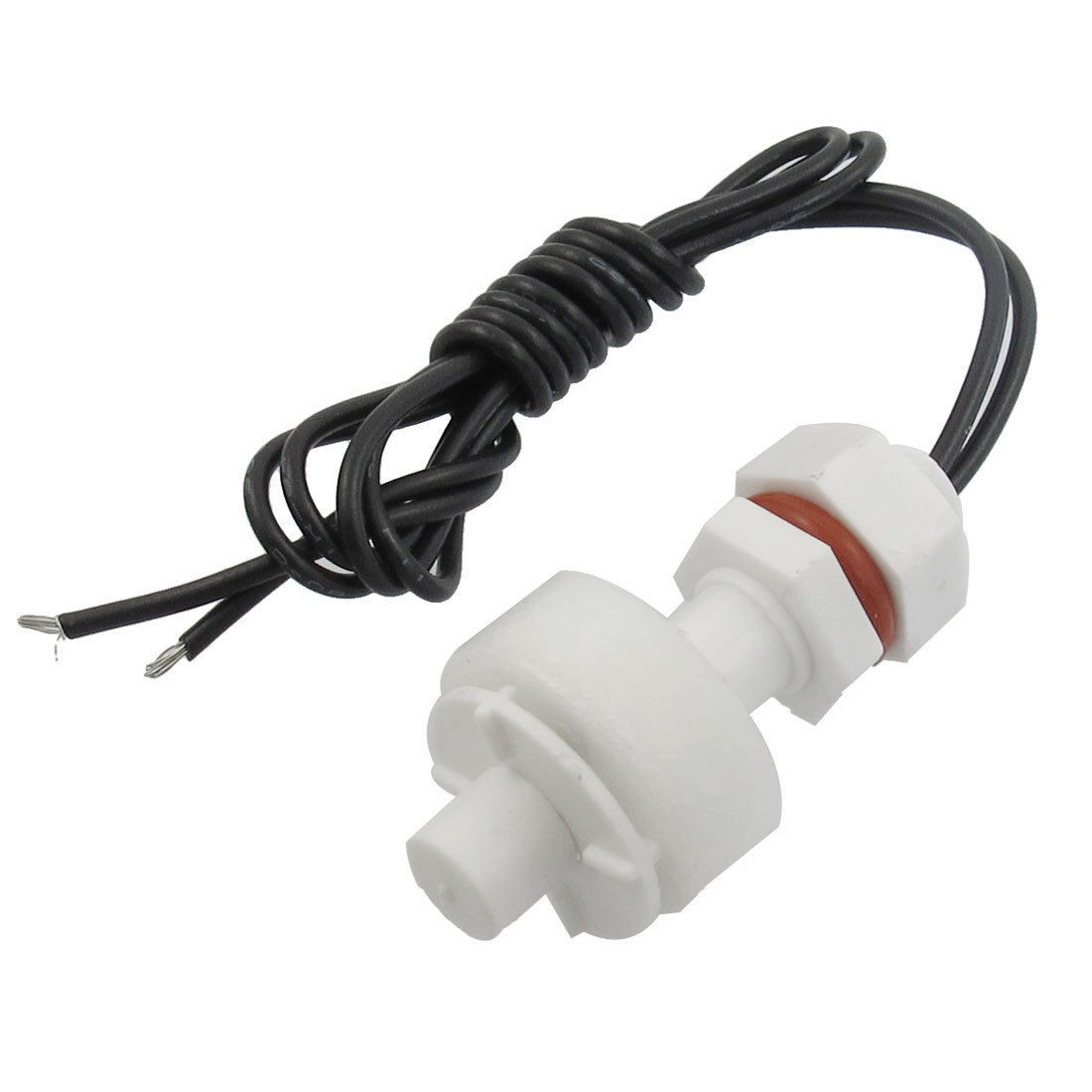

White Liquid Water Level Sensor Vertical Float Floating Switch

Product Name Water Level Sensor
Model No. SGL-0825-P
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 - +60 °C / 85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 7 x 18mm / 0.28" x 0.71"(L*D)
Thread Dia(Approx) 7mm / 0.276"
Bottom Clip Dia(Approx) 15.5mm / 0.61"
Body Total Length(Approx) 36mm / 1.42"
Cable Length 32cm / 12.6"
Color White, Black
Net Weight 8g
Package Content 1 x Water Level Sensor
