  • White 0.8Mpa G1/4 Wired Hall Effect Water Flow Sensor 0.15-1.5L/min

White 0.8Mpa G1/4 Wired Hall Effect Water Flow Sensor 0.15-1.5L/min

White 0.8Mpa G1/4 Wired Hall Effect Water Flow Sensor 0.15-1.5L/min

More Views

White 0.8Mpa G1/4 Wired Hall Effect Water Flow Sensor 0.15-1.5L/min
$10.00

Availability: In stock

OR
Description

Details

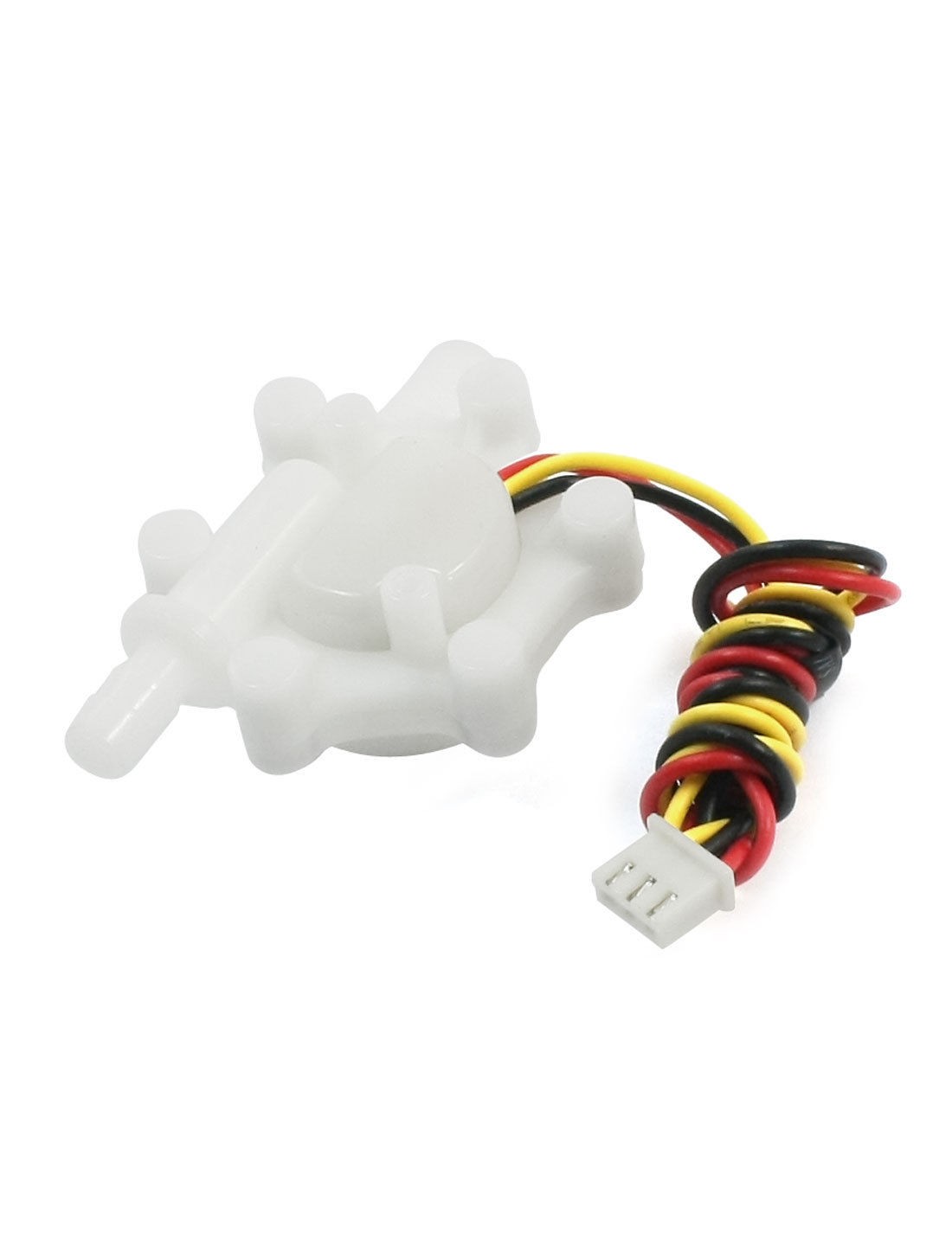

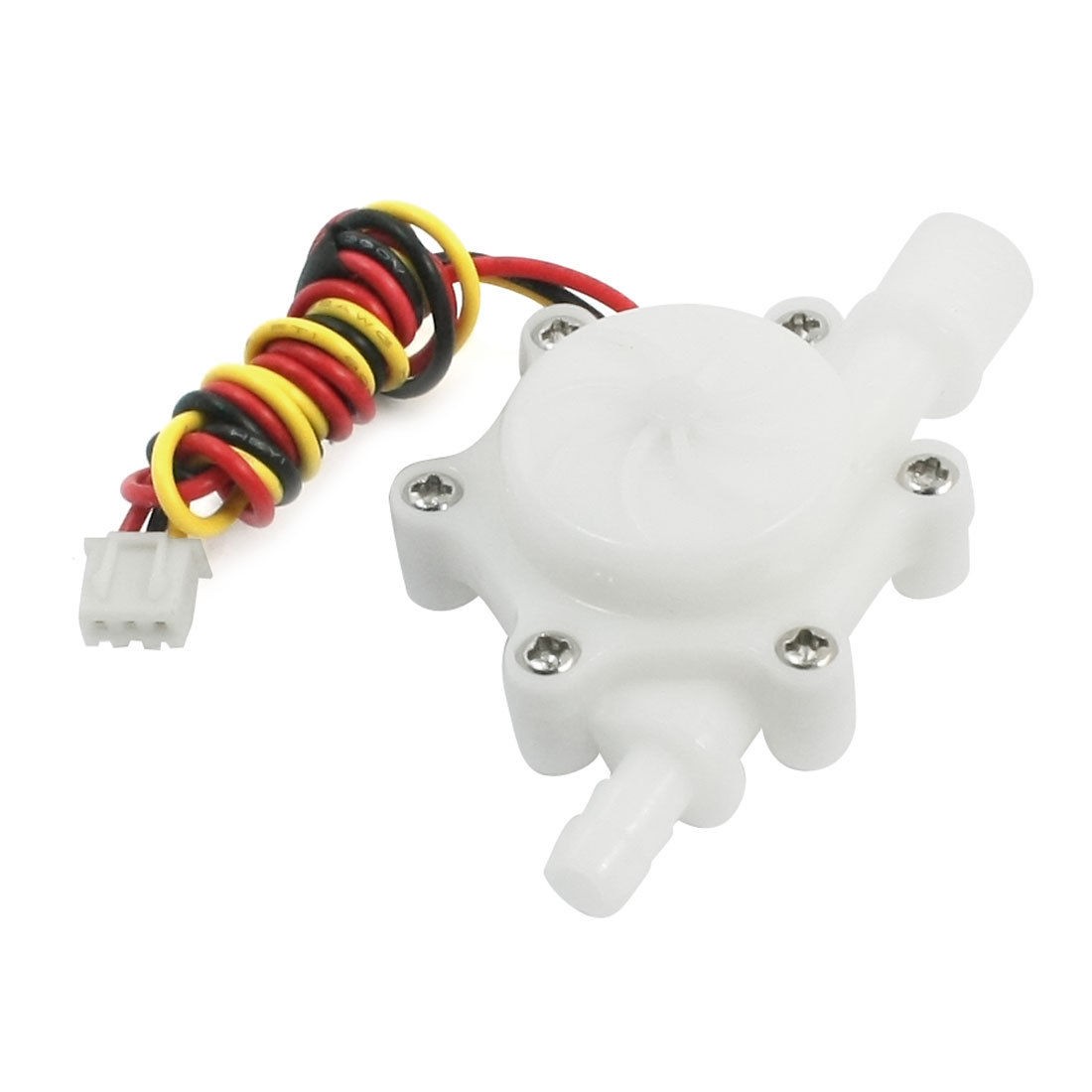

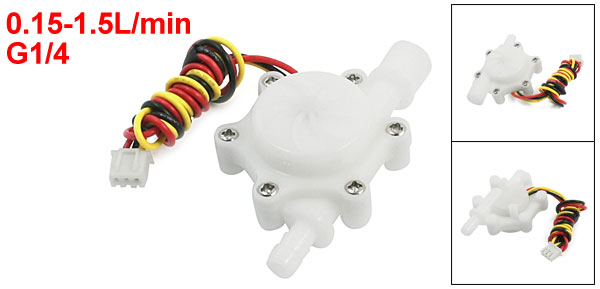

White 0.8Mpa G1/4 Wired Hall Effect Water Flow Sensor 0.15-1.5L/min

Product Name Water Flow Sensor
Model SEN-HZ06FA
Flow Range 0.15-1.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V (DC5V)
Low Level of Pulse Output <0.5V (DC5V)
Max Pressure 0.8Mpa
Insulation Performance 100MΩ
Connector Type 3Pin JST Connector
Main Material Plastic
Total Size 63 x 40 x 22mm / 2.5" x 1.6" x 0.87"(L*W*T)
Outlet Diameter 6mm/0.24"
Male Thread Port Diameter G1/4
Cable Length 32cm / 12.6"
Body Color White
Weight 26g
Package Content 1 x Water Flow Sensor
