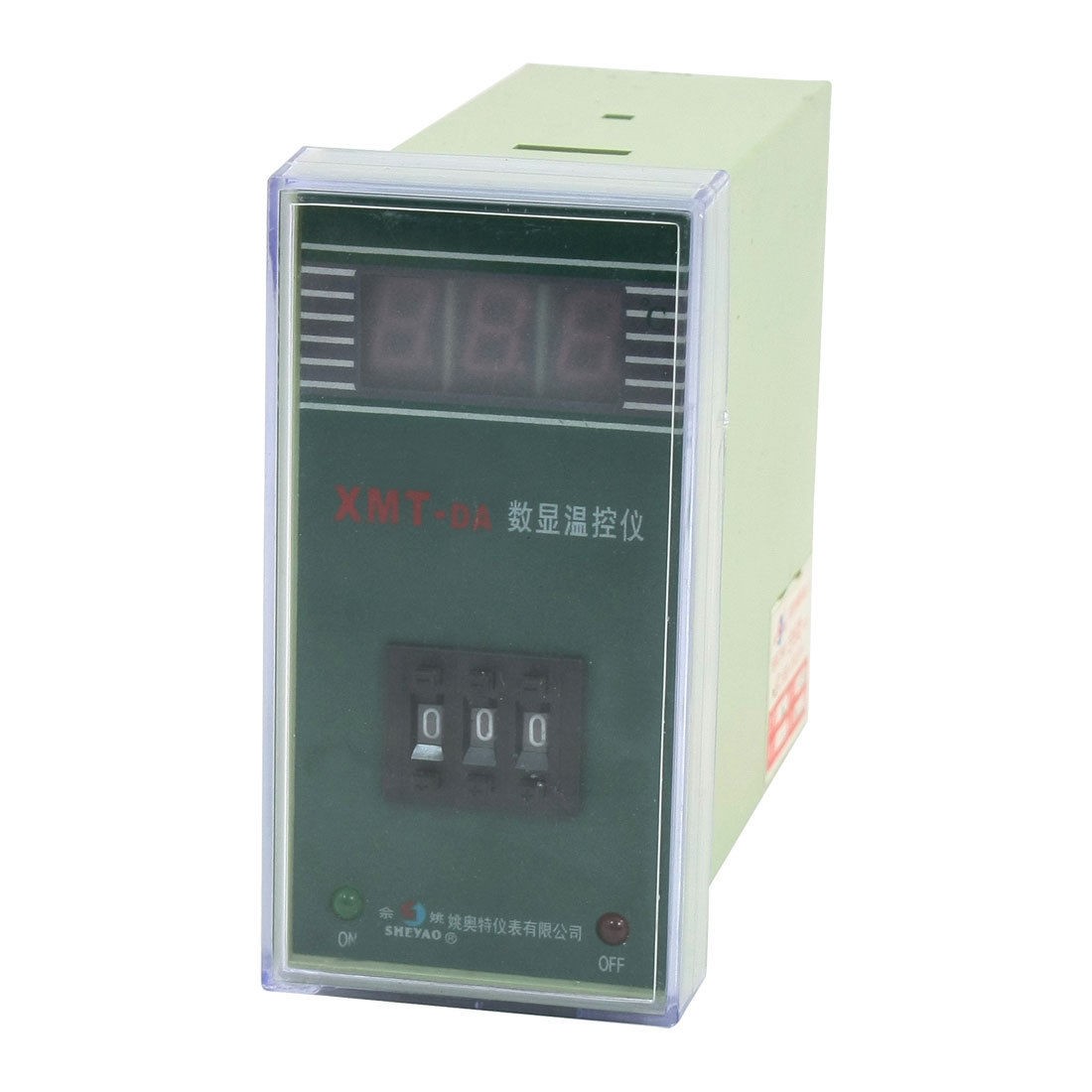

TDA-8001 AC 220V 0-399C K Type Digital Display Temperature Temp Controller

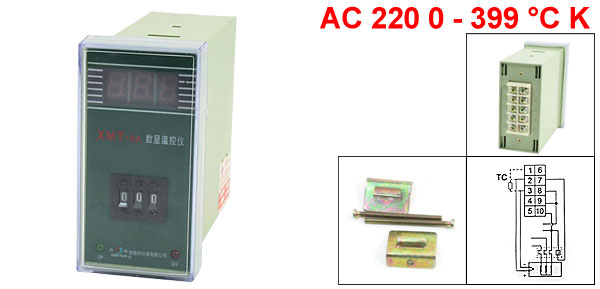

Product Name Temperature Controller Model TDA-8001 Input Singal K Type Thermocouple(TC, not included here) Relay Capacity 220V 3A Power Supply AC 220V, 50/60 Hz Temp Display Digital LED Display Display Range 0 - 399 °C Accuracy Class ±1.0% Wiring (as for heater control) A:Terminal 2 for thermocouple" + ", 3 for thermocouple "-"
B:Short-Circuit terminal 8 & 9,and then conncect them to AC 220V Null Line
C:Connect any coil terminal of your AC 220V contactor and Terminal 10 to AC 220V Live Line
D:Connect Terminal 7 to the other coil terminal of your contactor
Install Size 115x 54mm / 4.5" x 2.1"(W*H) Overall Size 140 x 120 x 65mm / 5.5" x 4.7" x 2.6" (L*W*T) Material Plastic & Electronics Net Weight 530g Package Content 1 x Temp Controller
2 x Mounting Clamps
