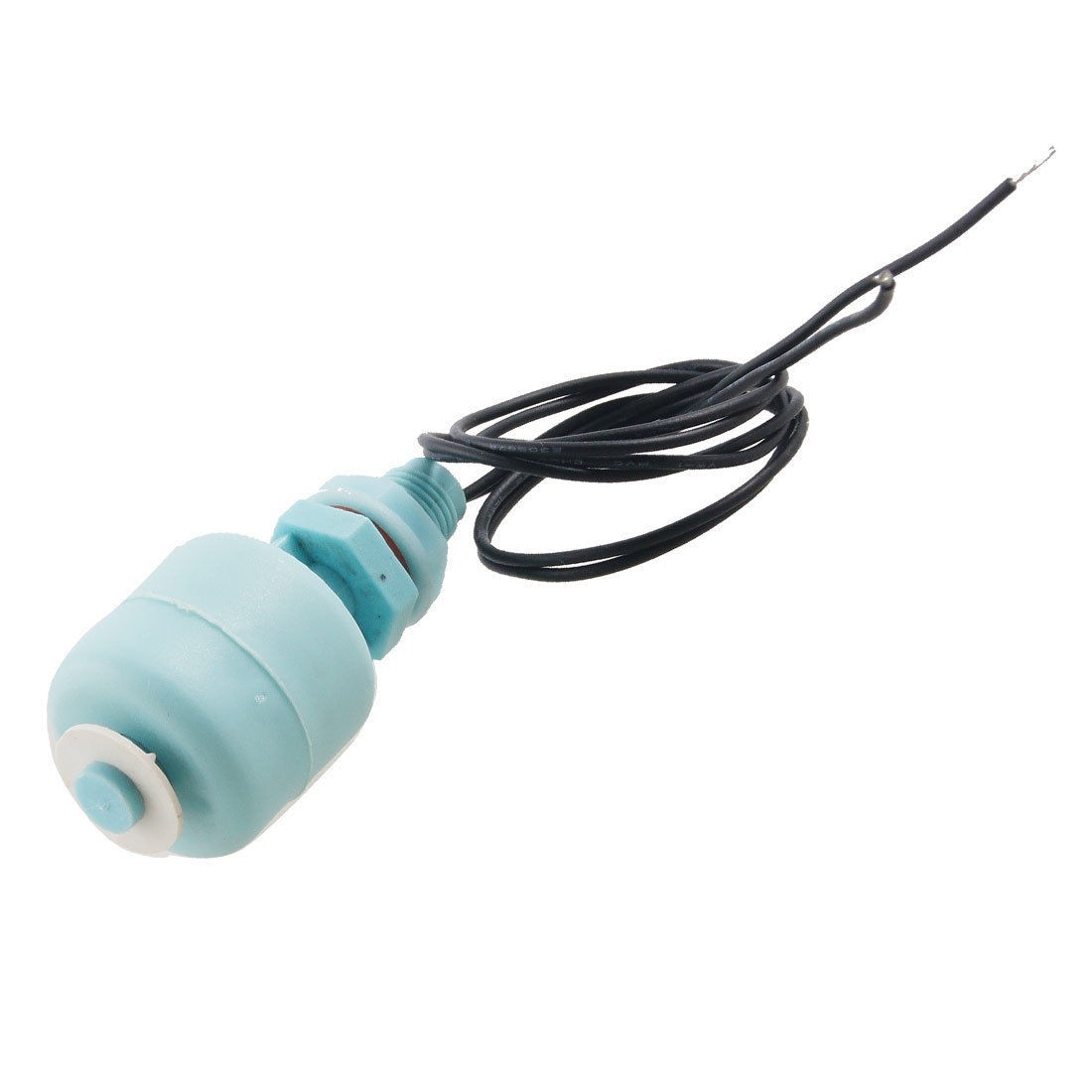

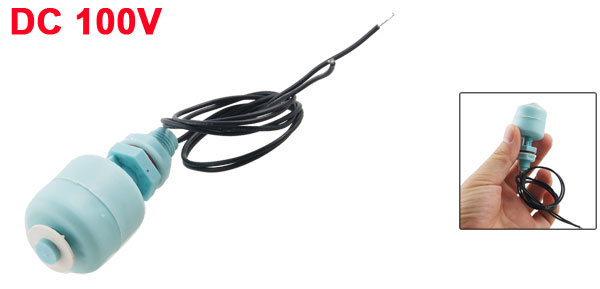

  • Tank Liquid Water Level Sensor Vertical Float Switch Control Blue

Tank Liquid Water Level Sensor Vertical Float Switch Control Blue

Tank Liquid Water Level Sensor Vertical Float Switch Control Blue

More Views

Tank Liquid Water Level Sensor Vertical Float Switch Control Blue
$8.02

Availability: In stock

OR
Description

Details

Tank Liquid Water Level Sensor Vertical Float Switch Control Blue

Product Name Float Switch
Model No. ZP5210-P
Contacts NO+NC
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / +85 °C
Float Ball Material PP
Float Body Material PP
Float Ball Size(Approx) 24 x 26.4mm / 0.9" x 1.04"(L*D)
Thread Dia(Approx) 9.4mm / 0.37"
Nut Dia(Approx) 16.6mm / 0.653"
Bottom Clip Dia(Approx) 15mm / 0.6"
Body Total Length 55mm / 2.2"
Cable Length 39cm / 15.3"
Color Blue
Net Weight 14g
Package Content 1 x Float Switch
