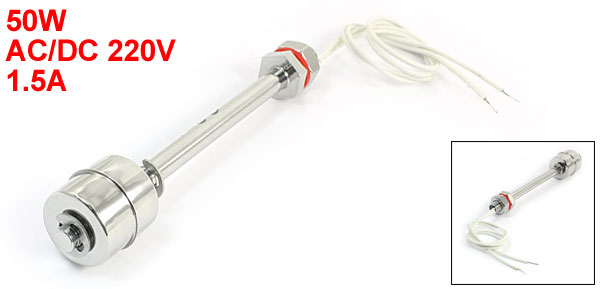

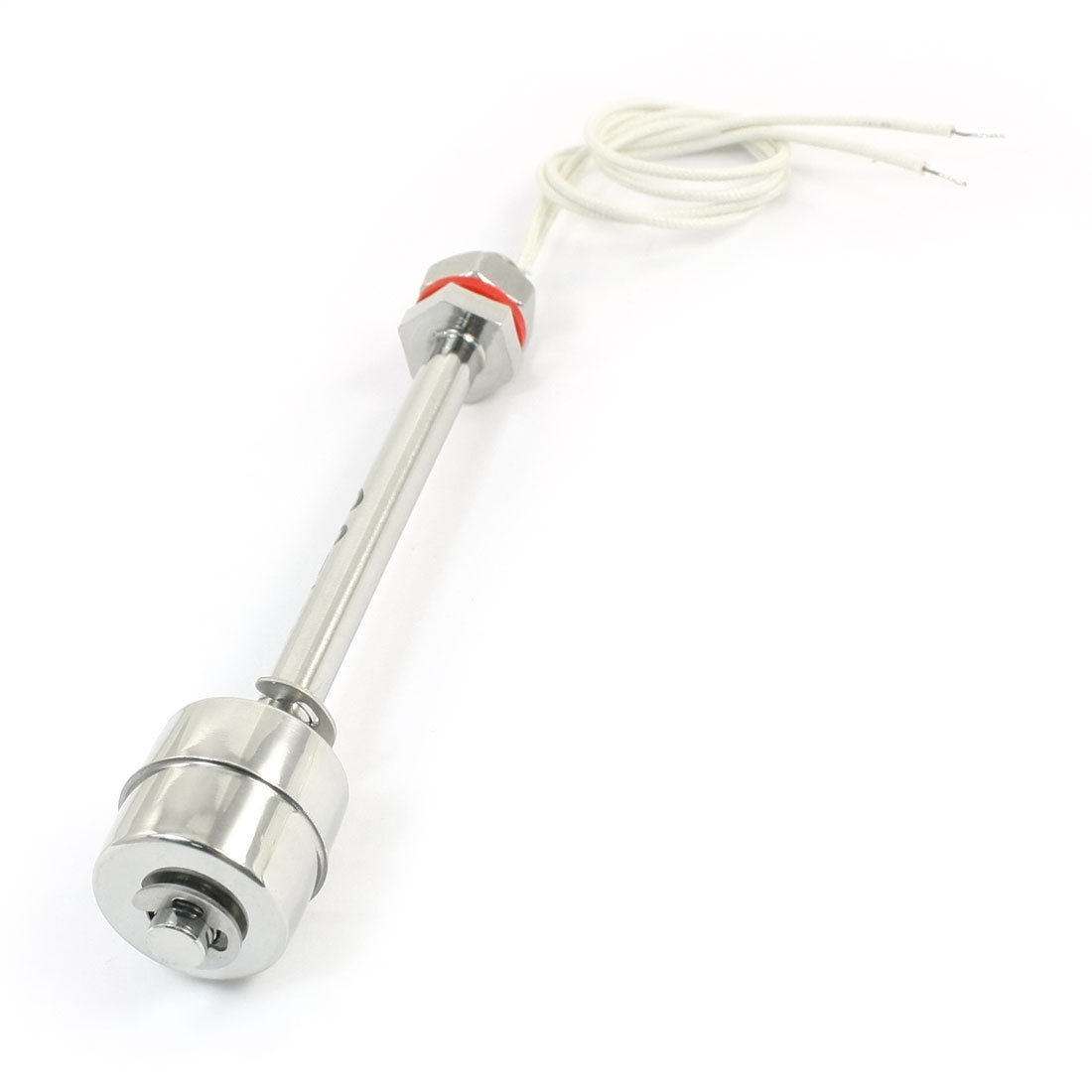

Tank Aquarium 26mm Ball Dia Vertical Water Level Control Sensor Floating Switch

Tank Aquarium 26mm Ball Dia Vertical Water Level Control Sensor Floating Switch

More Views

Tank Aquarium 26mm Ball Dia Vertical Water Level Control Sensor Floating Switch
$13.29

Availability: In stock

OR
Description

Details

Tank Aquarium 26mm Ball Dia Vertical Water Level Control Sensor Floating Switch

Product Name Float Switch
Max Contact Rating
50W
Max Switching Voltage AC/DC 220V
Max Switching Current 1.5A
Max Breakdown Voltage DC 300V
Max Carry Current 3A
Max Contact Resistance 100mΩ
Temperature Rating -30 ~ +180 °C
Float Ball Material Stainless Steel
Float Body Material Stainless Steel
Float Ball Size(Approx) 26 x 26mm / 1" x 1"(L*D)
Thread Dia(Approx) 9.7mm / 0.37"
Nut Dia(Approx) 17mm / 0.7"
Bottom Clip Dia(Approx) 15mm / 0.6"
Body Total Length 140mm / 5.5"
Cable Length 28cm / 11"
Color Silver Tone
Net Weight 60g
Package Content 1 x Float Switch
