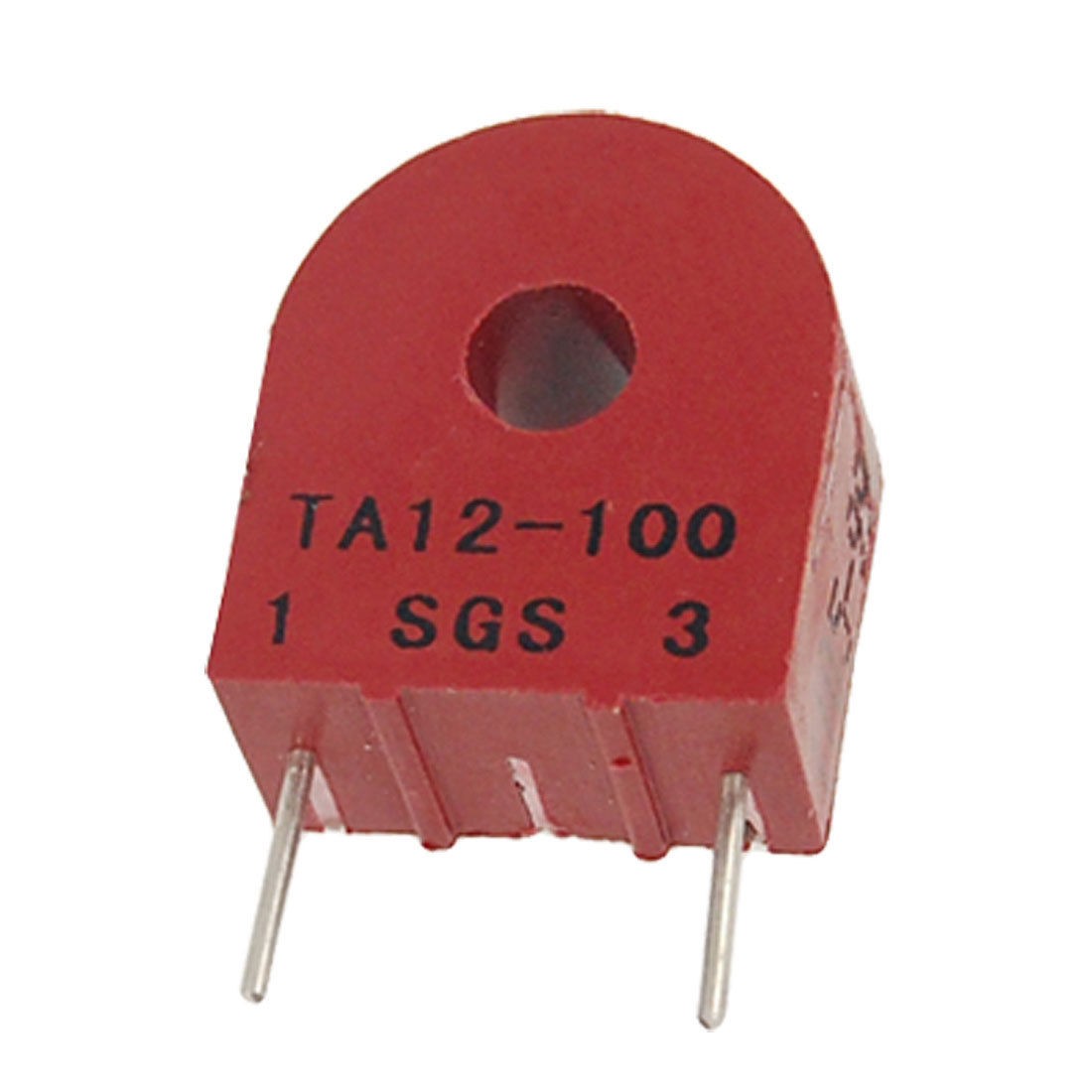

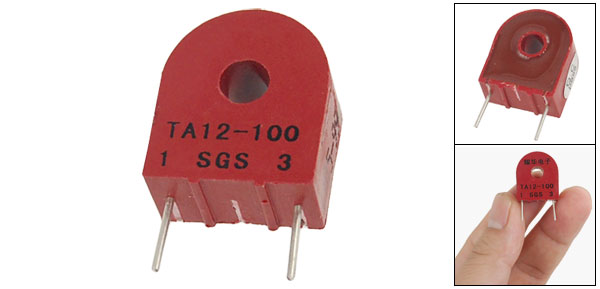

TA12-100 Epoxy Resin Embedding Current Transformer

Product NameCurrent Transformer
Model No.TA12-100
Ratio1000:1
Input Current0-5A
Output Current0-2.5mA
Sample Resistance200Ω
Sampling Voltage1V
Nonlinear Scale<=0.3%
Phase Drift<=10'
Working Frequency20Hz-20KHz
Working Temperature-55°C--+85°C
Dielectric Strength6KV AC/1min
Pin Diameter0.8mm/0.031"
Distance Between Two Pins12mm/0.5"
Shot-hole Diameter5mm/0.196"
Mounting Height20mm/0.787"
Overall Size(Approx.)16.8 x 9 x 27.5mm/0.66" x 0.35" x 1.08"(L*W*H)
ColorRed
Weight6g
Package Content1 x Current Transformer
