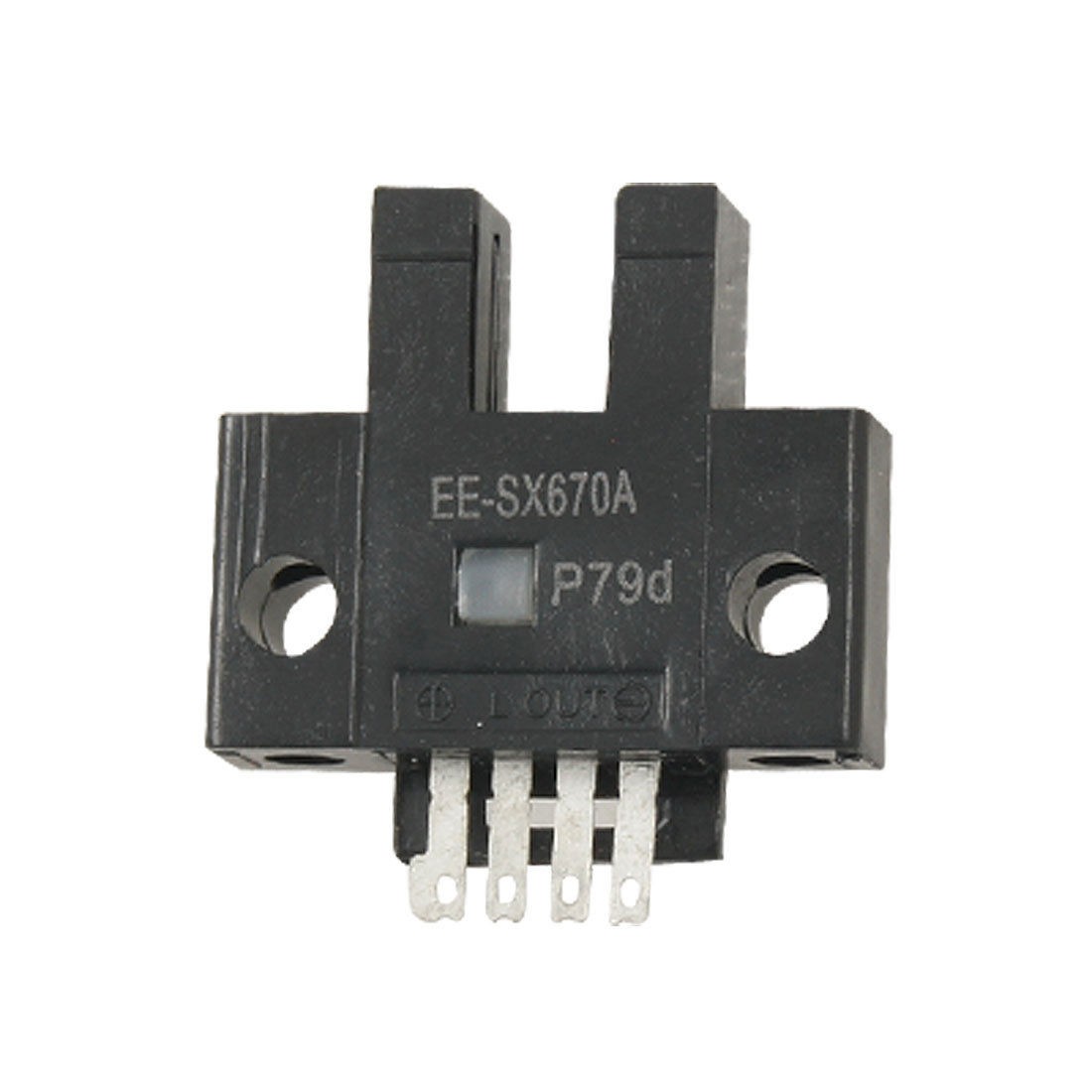

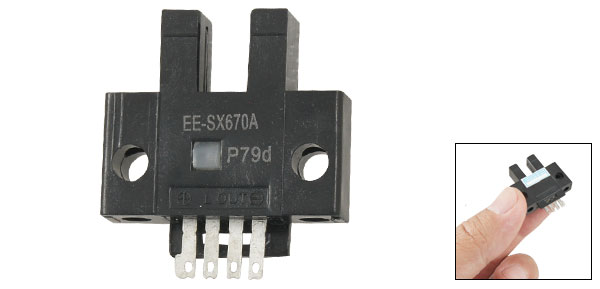

Standard NPN EE-SX670A Photo Micro Sensor Photo Switch
Product Name Photo Micro Sensor Switch Model EE-SX670A Type Standard Type Light Source GaAs Infrared LED (Pulse-Modulated) with a Peak Wavelength of 940 nm Control Output NPN Open Collector Output DC5-24V 100mA Below, Residual Voltage Below 0.8V(When Load Current 100mA), Residual Voltage Below 0.4V(When Load Current 40mA), Detection Distance 5 mm Standard Detection Distance Opaque 2×0.8mm Above Sensor Type Photoelectric Temperature Operating
-10 to +55 °C Power Supply Voltage DC5-24V±10% Consume Current 35mA Below Material Plastic, Electric Parts Size 2.5 x 2.5 x 0.6cm / 1" x 1" x 0.2"(L*W*T) Color Black Weight 3.7g Package Content 1 x Photo Micro Sensor Switch - Reviews
-
