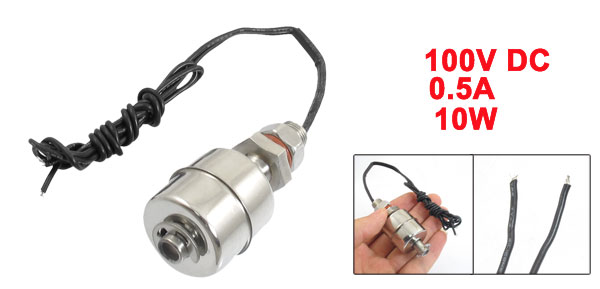

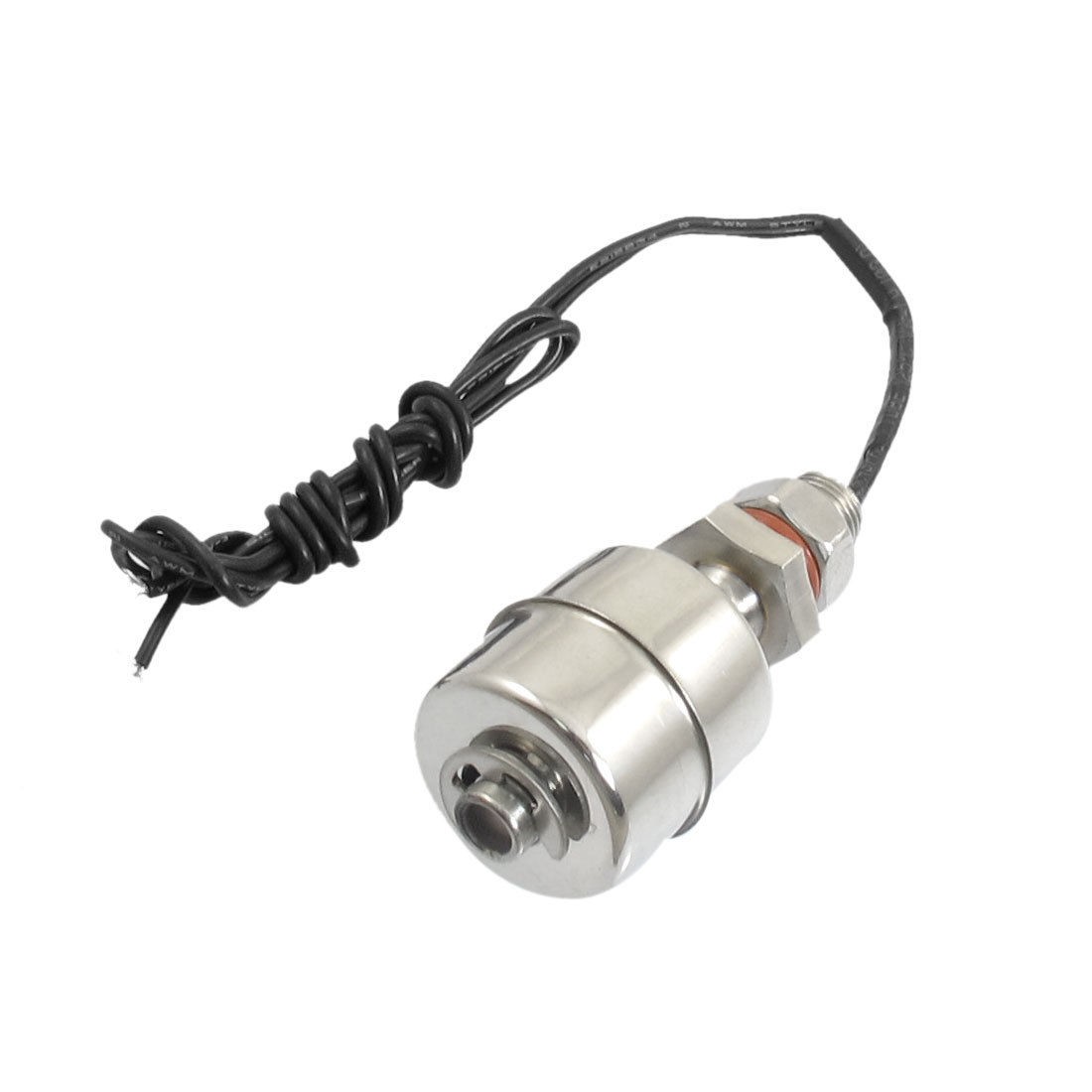

Stainless Steel Ball Tank Liquid Water Level Sensor Vertical Float Switch

Product Name Water Level Sensor
Model No. SGL-1045-S
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 - +60 °C / 85 °C
Float Ball Material Stainless Steel
Float Body Material Stainless Steel
Float Ball Size(Approx) 26 x 28mm / 1.02" x 1.1"(L*D)
Thread Dia(Approx) 9.5mm / 0.37"
Bottom Clip Dia(Approx) 14.5mm / 0.57"
Body Total Length(Approx) 60mm / 2.36"
Cable Length 45cm / 17.7"
Color Silver Tone
Net Weight 39g
Package Content 1 x Water Level Sensor
