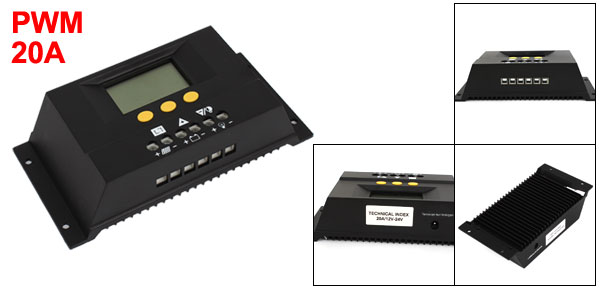

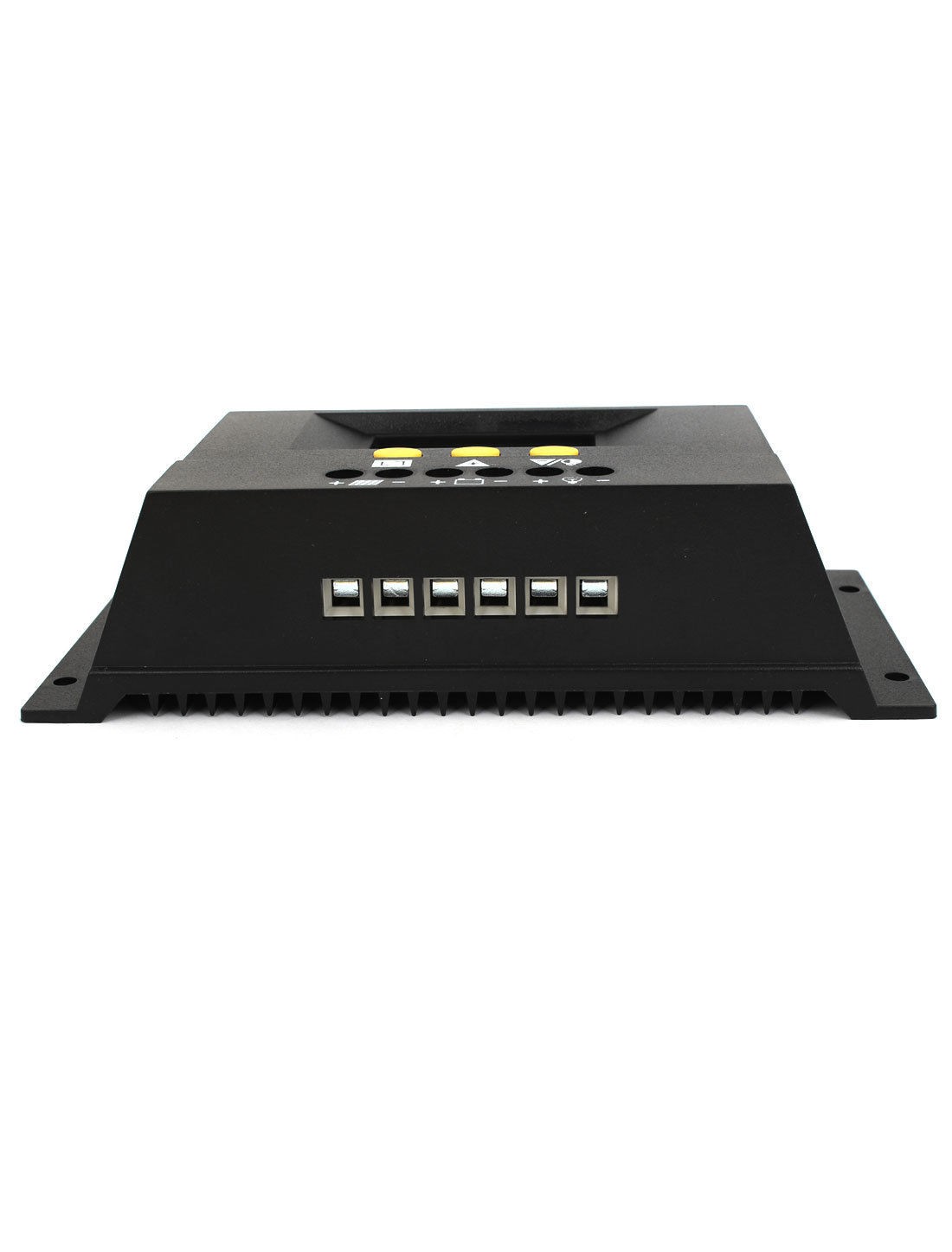

SOLAR20-24 12-24V 20A LCD Display PWM Charging Solar Charge Controller

More Views

$47.04

Availability: In stock

Qty:

Description

Product Name	Solar Charge Controller
Model	SOLAR20-24
Control Mode	PWM
Rate Working Current	20A
Rate Working Voltage	12-24V (Automatic Adjustment)
Voltage of Solar Panels	<=48V
No Load Loss	<=30mA
Loop Voltage Drop	<=170mV
Float Charging Voltage(Settable)	13.8V/27.6V
Low Voltage Protection(Settable)	10.7V/21.4V
Low Voltage Recovery (Settable)	12.5V/25.0V
Temperature	Temerature Compensation	-4mV/Cell/°C
	Storage Temerature	-30°C-70°C
	Temerature Requirement	<=90%,No Condensation
	Working Temerature	-10°C-60°C
Keys Number	3 Keys
Diamension	90 x 188 x 48 mm / 3.5" x 7.4" x 1.9"(LWH)
Mounted Hole Dia	5 mm /0.2"
Distance of Installation Holes	178 x 60 mm / 7.1" x 2.4"(L*W)
Installable Maximum Cable	7# AWG (16m²m²)
Main Color	Yellow,Black
External Material	Metal, Plastic
Net Weight	507g
Package Content	1Pcs x Solar Charge Controller 1 x User's Manual
