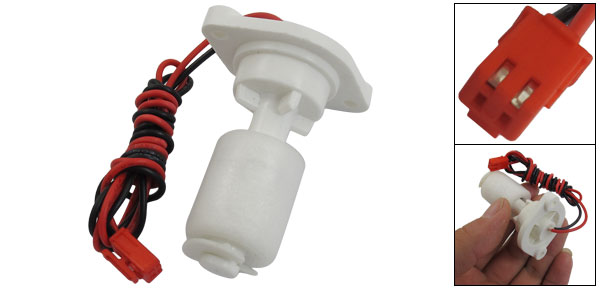

Single PP Ball Liquid Water Level Sensor Floating Float Switch

Single PP Ball Liquid Water Level Sensor Floating Float Switch

More Views

Single PP Ball Liquid Water Level Sensor Floating Float Switch
$4.87

Availability: In stock

OR
Description

Details

Single PP Ball Liquid Water Level Sensor Floating Float Switch

Product Name Water Level Sensor
Model No. SGL-1045-P
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 - +60 °C / 85 °C
Float Ball Material PP
Float Body Material Plastic
Float Ball Size(Approx) 22 x 19mm / 0.87" x 0.75"(L*D)
Installing Hole Diameter 3.4mm / 0.13"
Installing Hole Distance 33mm/ 1.3(Center to Center)
Bottom Clip Dia(Approx) 16.3mm / 0.64"
Lugs Size
 10.6 x 7.1 x 7.6mm/ 0.42" x 0.28" x 0.3"(L*W*H)
Total Size 41 x 30 x 51mm / 1.61" x 1.18" x 2"(L*W*H)
Cable Length 45cm / 17.7"
Color White
Net Weight 15g
Package Content 1 x Water Level Sensor
