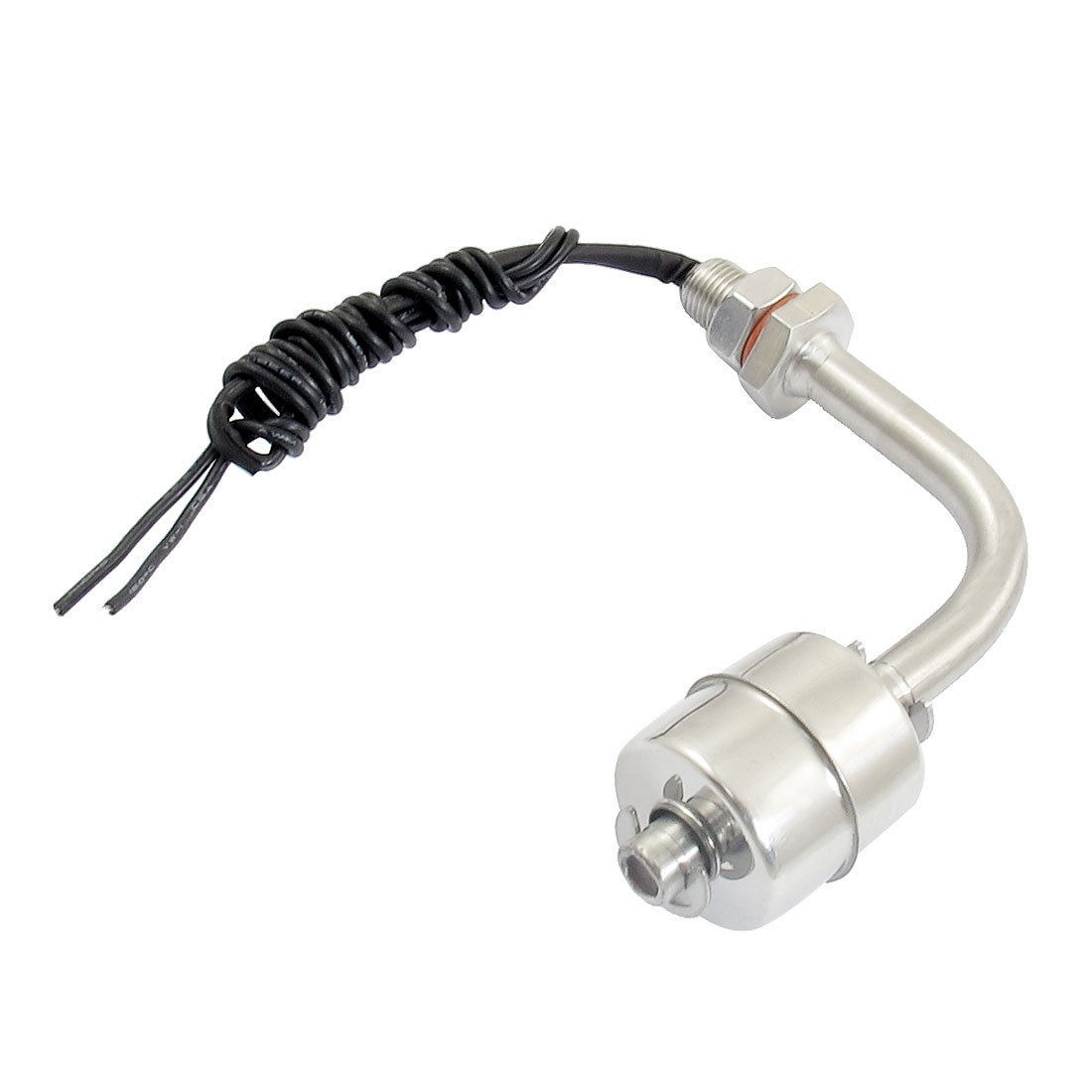

Single Ball Curved Stainless Steel Liquid Level Sensor Horizontal Float Switch

Single Ball Curved Stainless Steel Liquid Level Sensor Horizontal Float Switch

More Views

Single Ball Curved Stainless Steel Liquid Level Sensor Horizontal Float Switch
$11.84

Availability: In stock

OR
Description

Details

Single Ball Curved Stainless Steel Liquid Level Sensor Horizontal Float Switch

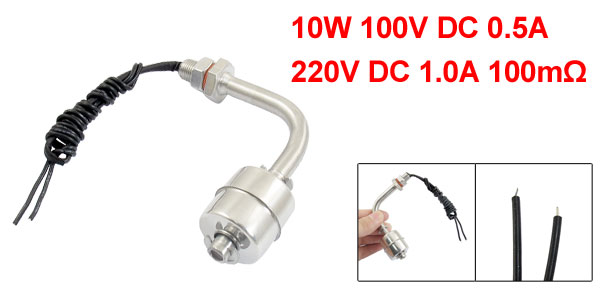

Product Name Water Level Sensor
Model No. SGL-1078-S
Max Contact Rating
10W
Max Switching Voltage 100V DC
Max Switching Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 - +60 °C / 85 °C
Float Ball Material Stainless Steel
Float Body Material Stainless Steel
Float Ball Size(Approx) 26 x 28mm / 1.02" x 1.1"(L*D)
Thread Dia(Approx) 9.5mm / 0.37"
Bottom Clip Dia(Approx) 14.5mm / 0.57"
Body Total Length(Approx) 77mm / 3.03"
Body Total Width(Approx) 67mm/ 2.64
Cable Length 42cm / 16.5"
Color Silver Tone
Net Weight 55g
Package Content 1 x Water Level Sensor
