  • SEN-HW06W G1/4 Inlet Outlet Water Flow Sensor 0.25-3.5L/min 0.8Mpa

SEN-HW06W G1/4 Inlet Outlet Water Flow Sensor 0.25-3.5L/min 0.8Mpa

SEN-HW06W G1/4 Inlet Outlet Water Flow Sensor 0.25-3.5L/min 0.8Mpa

More Views

SEN-HW06W G1/4 Inlet Outlet Water Flow Sensor 0.25-3.5L/min 0.8Mpa
$10.04

Availability: In stock

OR
Description

Details

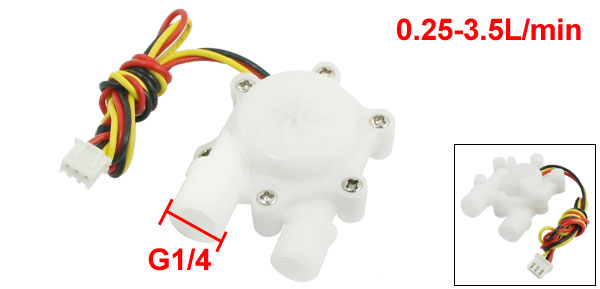

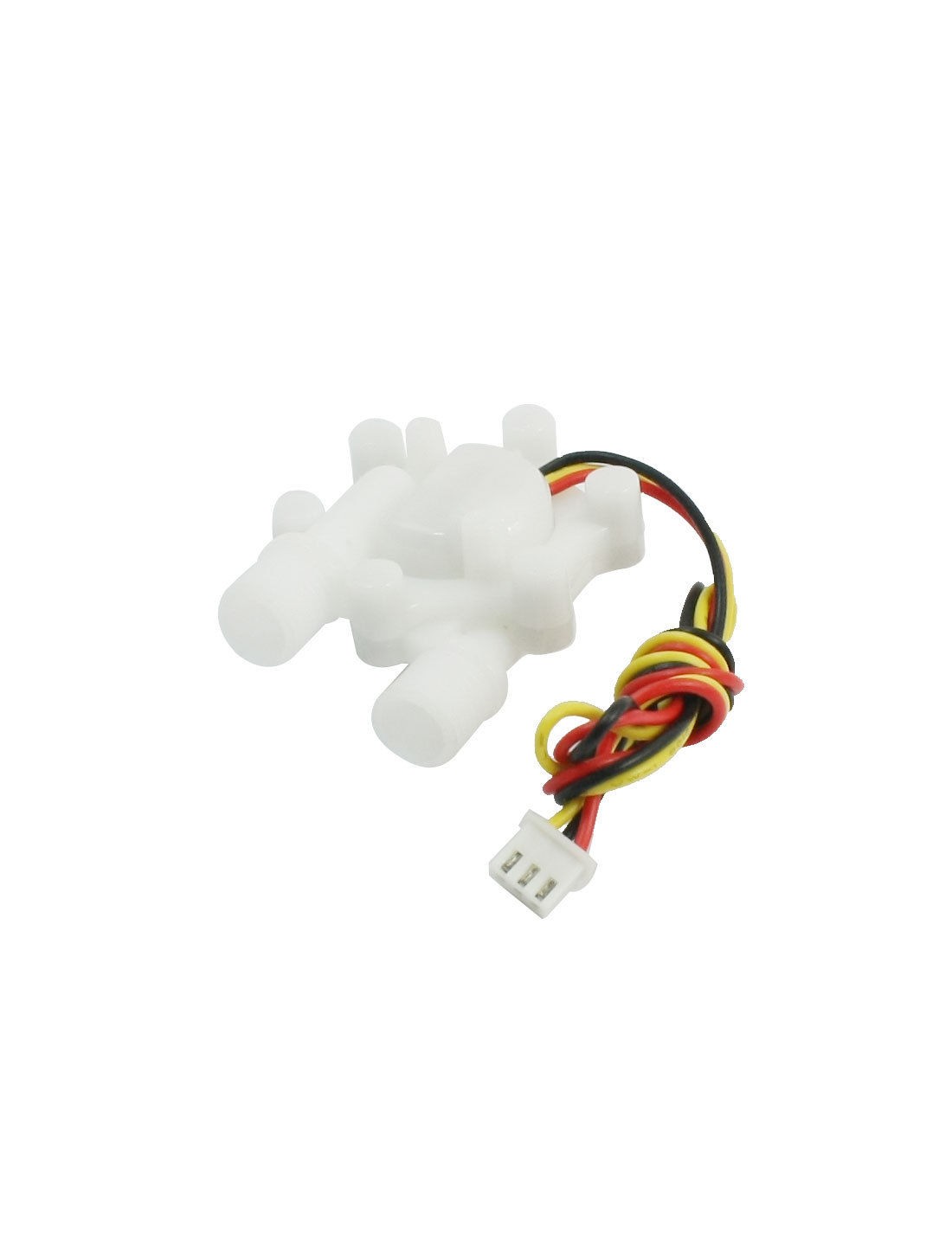

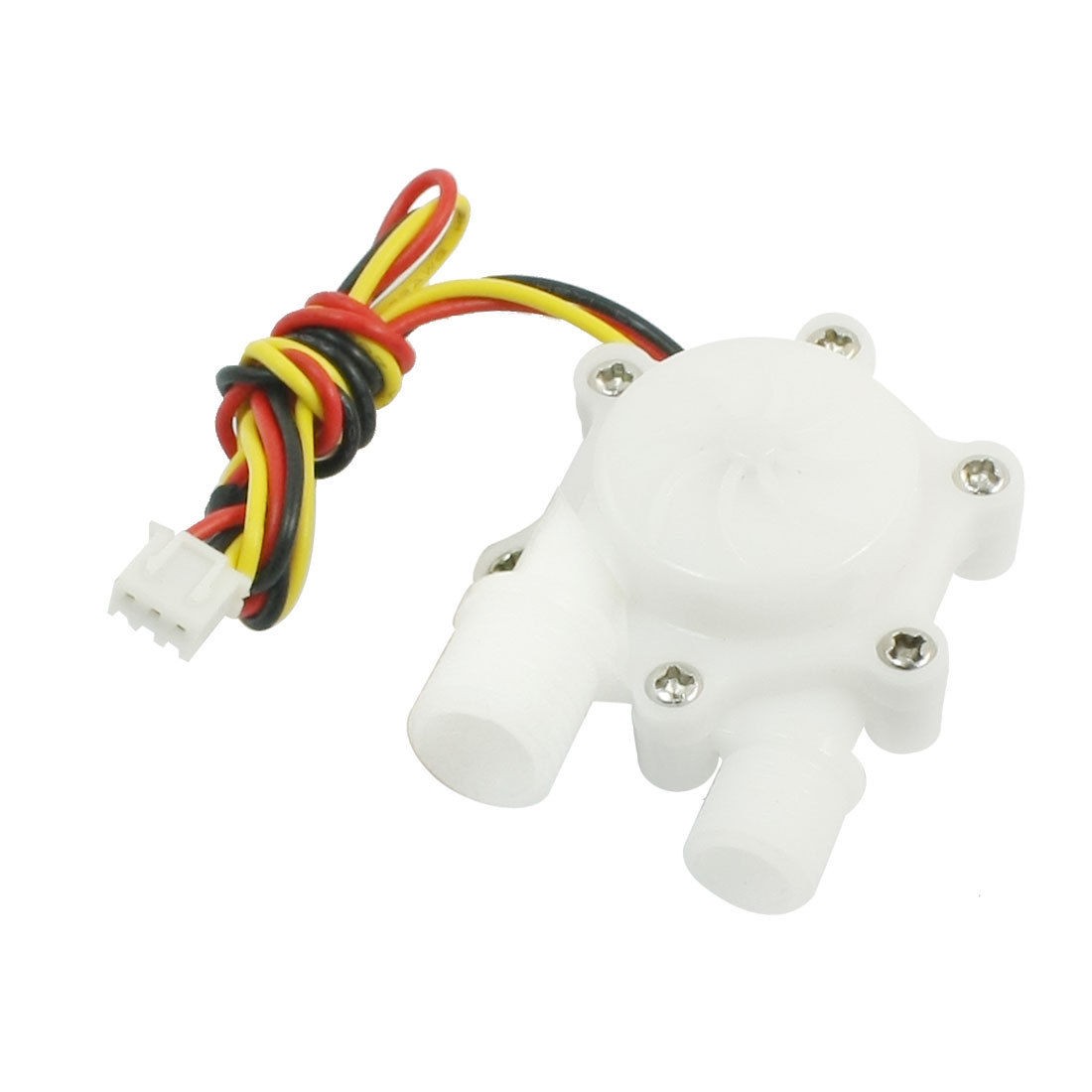

SEN-HW06W G1/4 Inlet Outlet Water Flow Sensor 0.25-3.5L/min 0.8Mpa

Product Name Water Flow Sensor
Model SEN-HW06W
Flow Range 0.25-3.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 0.8Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 53 x 40 x 23mm / 2.1" x 1.6" x 0.91"(L*W*T)
Male Thread Ports Diameter G1/4
Cable Length 33cm / 13"
Body Color White
Weight 26g
Package Content 1 x Water Flow Sensor
