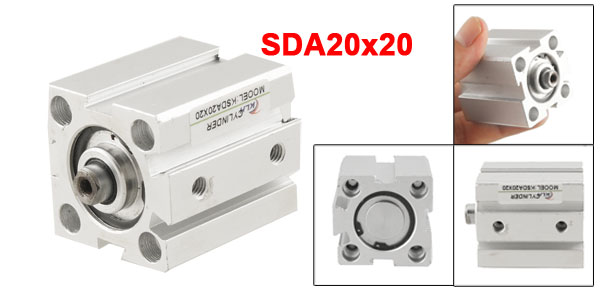

SDA20x20 20mm Bore 20mm Stroke Double Acting Compact Air Cylinder

SDA20x20 20mm Bore 20mm Stroke Double Acting Compact Air Cylinder

More Views

SDA20x20 20mm Bore 20mm Stroke Double Acting Compact Air Cylinder
$15.85

Availability: In stock

OR
Description

Details

SDA20x20 20mm Bore 20mm Stroke Double Acting Compact Air Cylinder

Product Name Air Cylinder
Model SDA20x20
Action Type Double Action
Bore 20mm / 0.78"
Stroke 20mm / 0.78"
Max Presssure 1.0Mpa / 10.2Kg/cm² / 145PSI
Rod Diameter 8mm / 0.31"'
Rod Thread Diameter 4mm / 0.15"
Air Hole Diameter 4mm / 0.15"
Mounting Hole Diameter 5mm / 0.19"
Mounting Hole Distance(center to center) 24mm / 0.94"
Overall Size(Approx) 39 x 39 x 34mm / 1.5"x 1.5"x 1.3"(L*W*H)
Material Aluminum Alloy
Weight 94g
Package Content 1 x Air Cylinder
