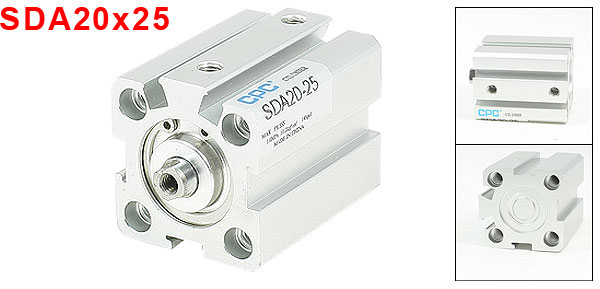

SDA20-25 20mm Bore 25mm Stroke Double Acting Compact Air Cylinder

SDA20-25 20mm Bore 25mm Stroke Double Acting Compact Air Cylinder

More Views

SDA20-25 20mm Bore 25mm Stroke Double Acting Compact Air Cylinder
$14.89

Availability: In stock

OR
Description

Details

SDA20-25 20mm Bore 25mm Stroke Double Acting Compact Air Cylinder

Product Name Air Cylinder
Model SDA20x25
Action Type Double Action
Bore 20mm
Stroke 25mm
Max Presssure 1.0Mpa / 10.2Kg/cm² / 145PSI
Rod Diameter 8mm / 0.31"'
Rod Thread Diameter 2.5mm / 0.1"
Air Hole Diameter 4mm / 0.15"
Mounting Hole Diameter 6mm / 0.23"
Mounting Hole Distance(center to center)

26mm / 1"
Overall Size(Approx) 50 x35x 45mm / 2"x 1.3" x 1.57"(L*W*H)
Material Aluminum Alloy
Weight 115g
Package Content 1 x Air Cylinder
