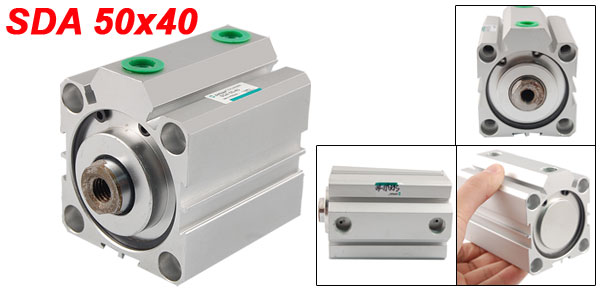

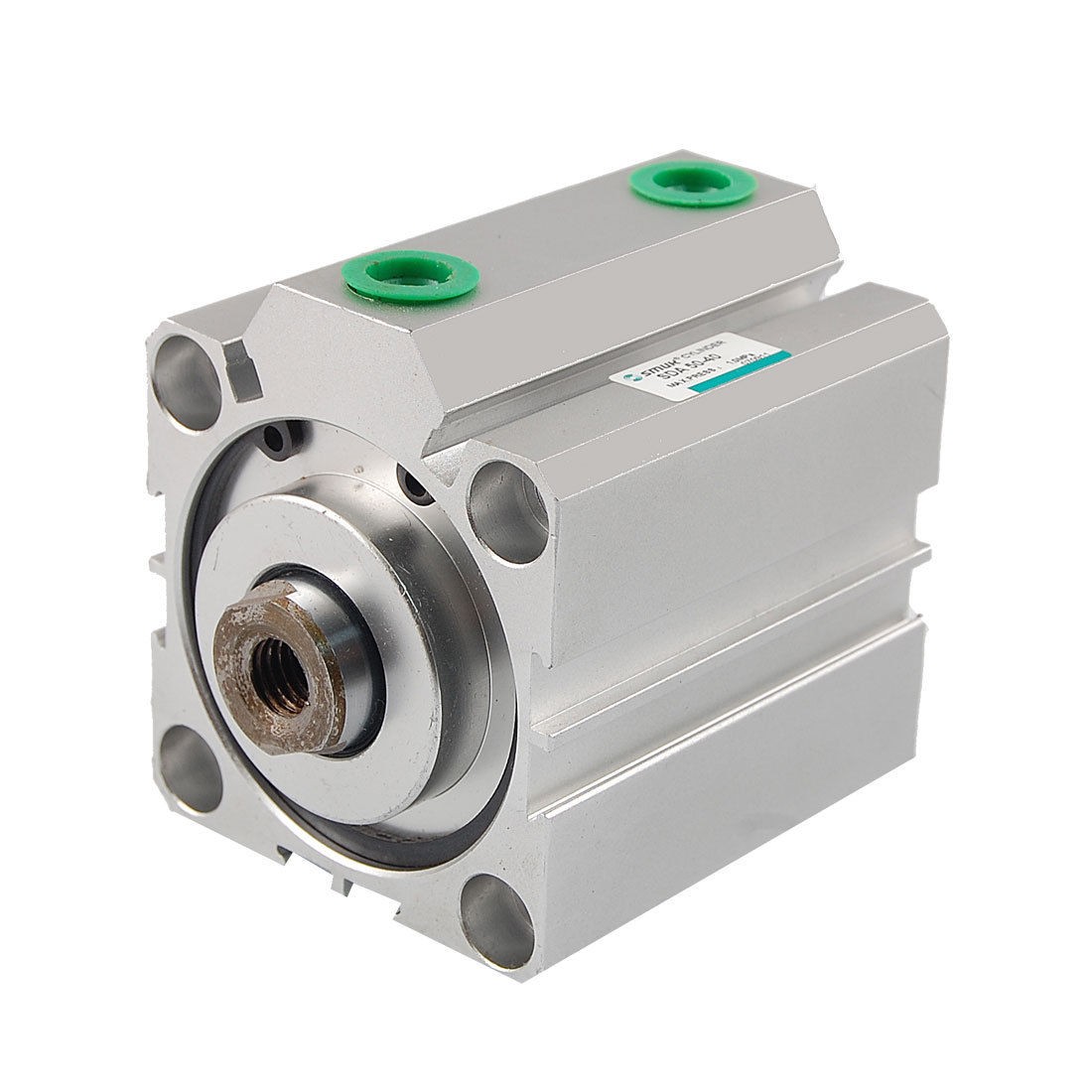

SDA 50mm Bore 40mm Stroke Double Action Compact Pneumatic Air Cylinder

SDA 50mm Bore 40mm Stroke Double Action Compact Pneumatic Air Cylinder

More Views

SDA 50mm Bore 40mm Stroke Double Action Compact Pneumatic Air Cylinder
$34.04

Availability: In stock

OR
Description

Details

SDA 50mm Bore 40mm Stroke Double Action Compact Pneumatic Air Cylinder

Product Name Air Cylinder
Model SDA 50x40
Material Aluminum Alloy
Color Silver Tone
Motion Type Double Action
Working Medium Pass Filtered and Lubricator Compress Air
Max Pressure 1.0Mpa
Bore 50mm/ 1.96"
Stroke 40mm/ 1.57"
Piston Rod Hole Diameter 8.8mm/ 0.346"
Mounting Hole Spacing 48mm/ 1.88"
Mounting Hole Diameter 7mm/0.275"
Inlet/Outlet Hole Diameter 11mm/ 0.433"
Overall Size 72 x 62 x 78mm/ 2.8" x 2.4" x 3.1"(L*W*H)
Net Weight 565g
Package Content 1 x Compact Air Cylinder
