  • PR18-8DN 8mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V

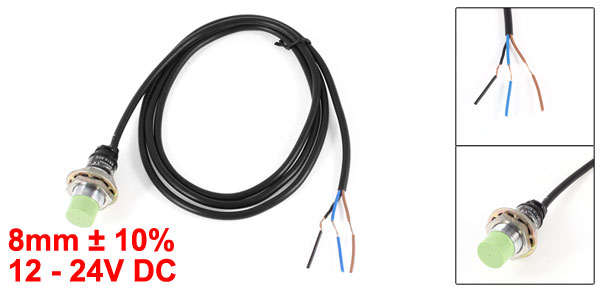

PR18-8DN 8mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V

PR18-8DN 8mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V

More Views

PR18-8DN 8mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V
$10.43

Availability: In stock

OR
Description

Details

PR18-8DN 8mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V

Product Name Proximity Sensor
Model PR18-8DN
Detecting Distance 8mm ± 10%
Standard Detecting Target 25 x 25 x 1mm
Setting Distance 0 to 5.6
Power Supply 12 - 24V DC
Current Consumption Max. 10mA
Response Frequency 200Hz
Residual Voltage Max. 15V
Control Output 200mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1500V AC, 50/60Hz for 1 Minute
Ambient Temperature -25C to 70C
Protection IP67
Output Type NPN  NO(Normal Open)
Column Sensor Diameter 16mm/0.63"
Thread Diameter 18mm/0.71"
Cable Length 144cm/4.7ft
Weight 51g
Package Content 1 x Proximity Sensor
