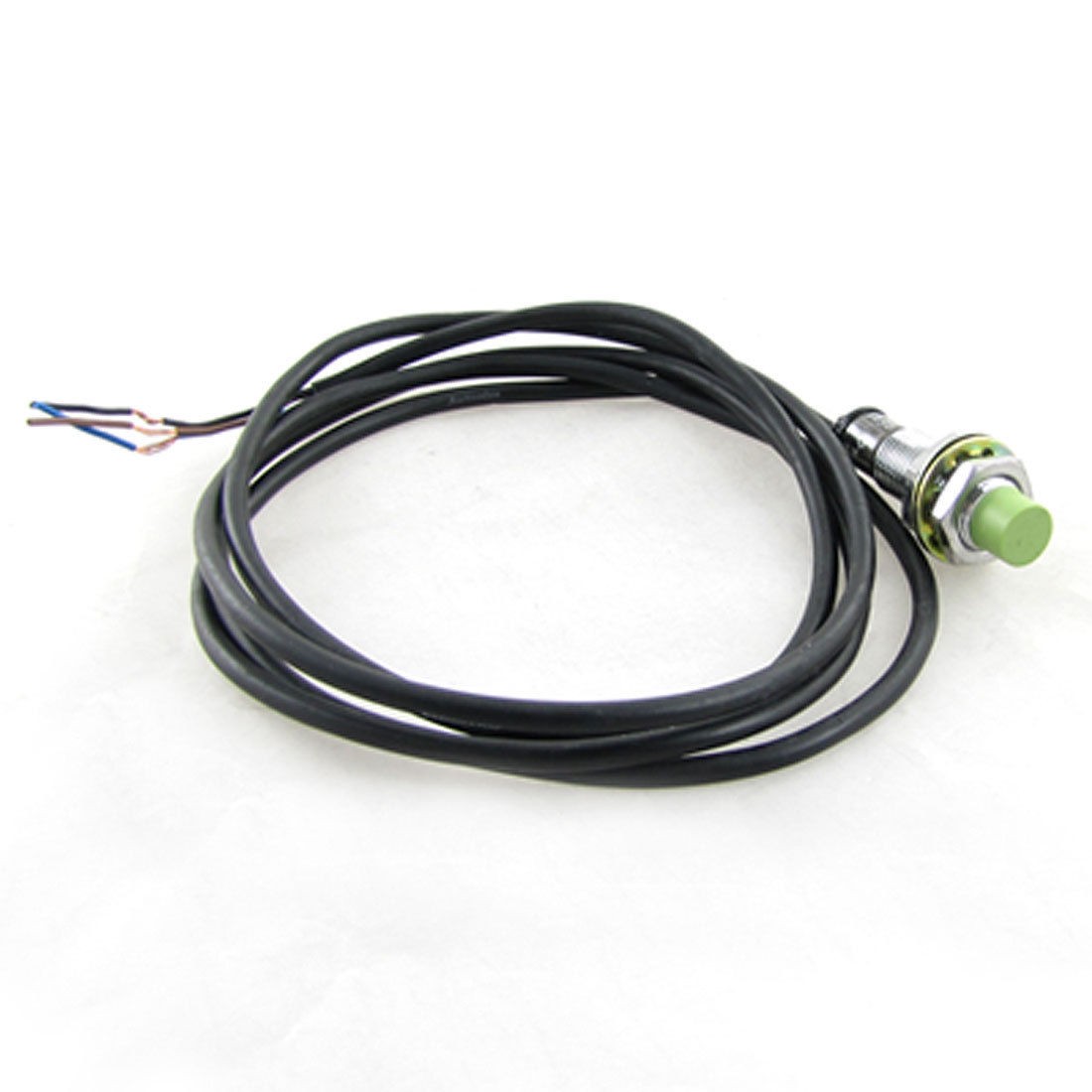

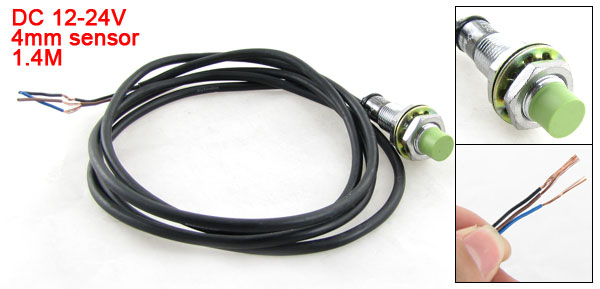

PR12-4DP PNP NO 3-wire 4mm Inductive Proximity Sensor Switch DC 12-24V
Product Name Proximity Switch Model PR12-4DP Wire Type 3 Wire Theory Inductive Sensor Output Type PNP NO(Normal Open) Diameter of Head 12mm Detecting Distance 4mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 12 x 12 x 1mm Material: Iron Setting Distance 0 to 2.8 Supply Voltage DC 12-24V Current Consumption 10mA Response Frequency 400Hz Residual Voltage Max. 1.5V Variation Due To Temp. Fluctuation Max. +20% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output 200mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse Polarity Protection, Surge Protection, Overload & Short Circuit Protection ( Exception PRS 12 ) Size 4 x 1.5cm / 1.6"' x 0.6'' ( L * Max. Dia ) Cable Length 140cm / 55.1" Extenal Material ABS Resin Net Weight 61g Color As Picture Show Package Content 1 x Proximity Switch 1 x English-Korean User Manual - Reviews
-
