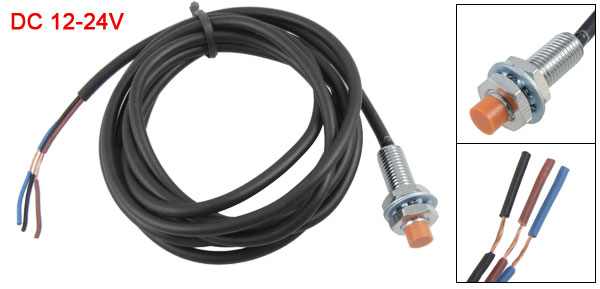

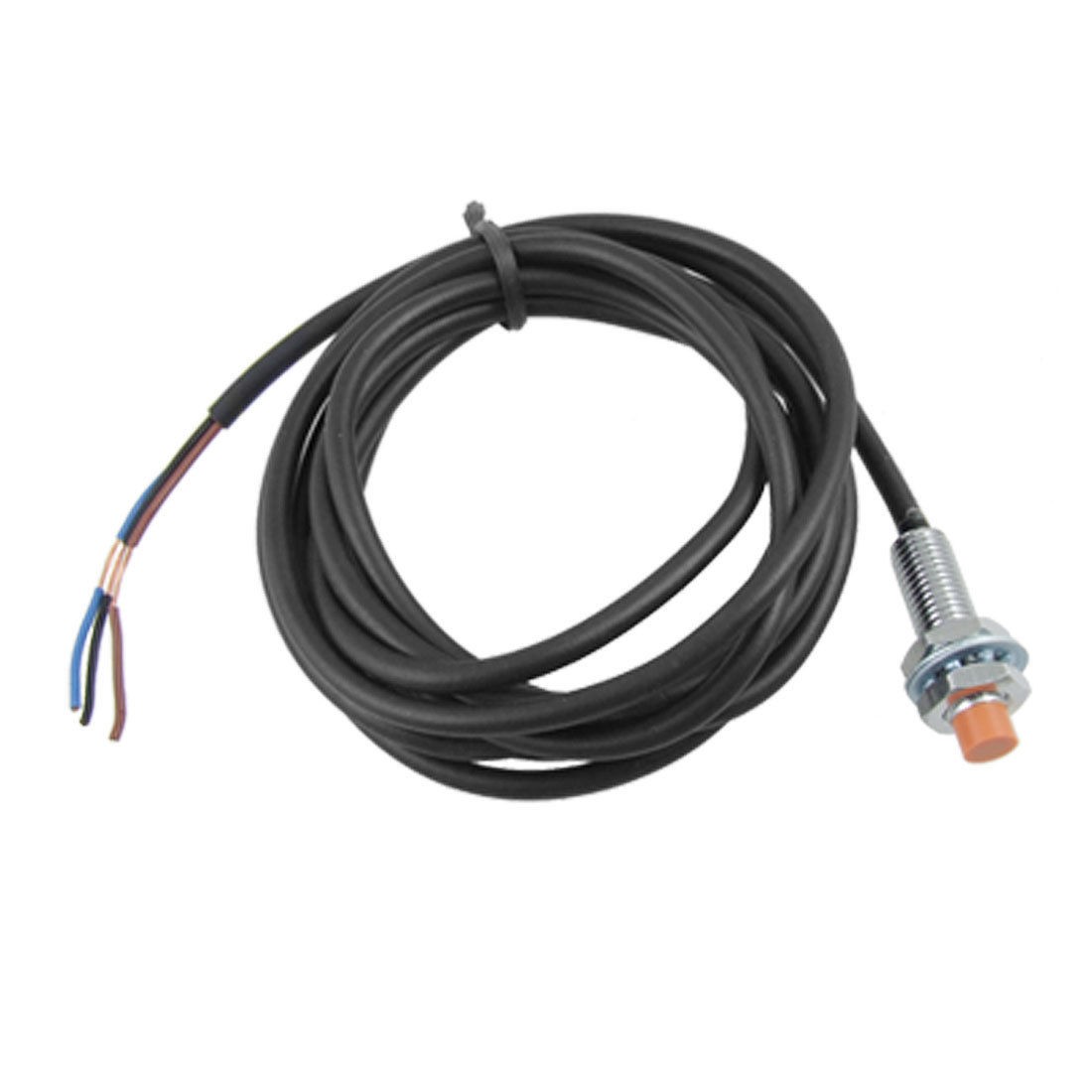

PR08-2-DP DC 12-24V PNP NO Inductive Proximity Sensor Switch Detector 2mm
Product Name Proximity Switch Model PR08-2-DP Wire Type 3 Wire Theory Inductive Sensor Output Type PNP NO(Normal Open) Diameter of Head 8mm Detecting Distance 2mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 12 x 12 x 1mm Material: Iron Setting Distance 0 to 1.4 Supply Voltage DC 12-24V Current Consumption 10mA Response Frequency 800Hz Residual Voltage Max. 2V Variation Due To Temp. Fluctuation Max. +20% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output Resistive Load: 200mA Inductive Load: 100mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse Polarity Protection Surge Protection Circuit Size 3 x 1.5cm/1.2'' x 0.6'' (L*Max. Dia) Cable Length 175cm/68.9" Extenal Material ABS Resin Net Weight 57g Color As Picture Show Package Content 1 x Proximity Switch 1 x English-Korean User Manual - Reviews
-
