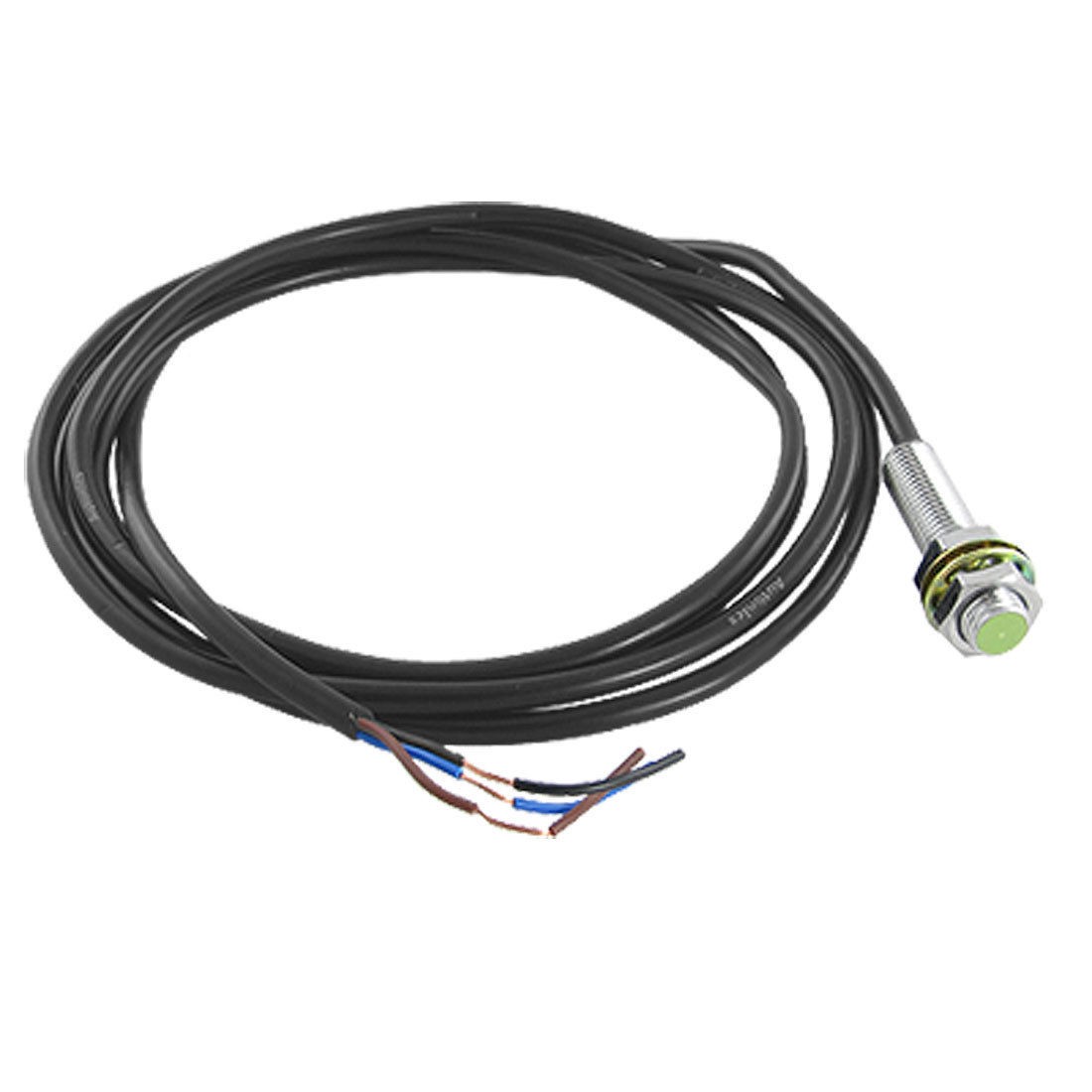

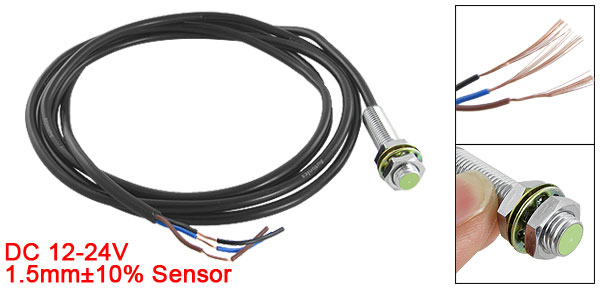

PR08-1.5DN DC 12-24V NPN NO 1.5mm Inductive Proximity Sensor Switch Detector
Product Name Proximity Switch Model PR08-1.5-DN Wire Type DC 3 Wire Type Theory Inductive Sensor Output Type NPN NO(Normal Open) Diameter of Head 8mm Detecting Distance 1.5mm±10% Hysteresis Max. 10% of Detecting Distance Standard Detecting Target Size: 8 x 8 x 1mm Material: Iron Setting Distance 0 to 1.05 Supply Voltage DC 12-24V Current Consumption 10mA Response Frequency 800Hz Residual Voltage Max. 2V Variation Due To Temp. Fluctuation Max. +20% of Detecting Distance at +20°C within Temperature Range of -25°C to +70°C Control Output 200mA Insulation Resistance Min. 50mΩ (500VDC) Electric Strength 1500V AC 50/60Hz for 1 Minute Vibration 1mm Amplitude at Frequency of 10 to 55Hz in Each of X, Y, Z Directions for 2 Hours Shock 500m/S*(50G) X, Y, Z Directions for 3 Times Indicator Red LED Operating Temperature -25°C to +70°C (Non-freezing Condition) Storage Temperature -30°C to +80°C (Non-freezing Condition) Ambient Humidity 35 to 95% RH Protection Circuit Reverse polarity protection, surge protection, overload & short circuit protection (exception PRS 12) Size 3.5 x 1.5cm / 1.4'' x 0.6'' ( L * Max. Dia ) Cable Length 150cm / 59" Extenal Material ABS Resin Net Weight 50g Color As Picture Show Package Content 1 x Proximity Switch 1 x English-Korean User Manual - Reviews
-
