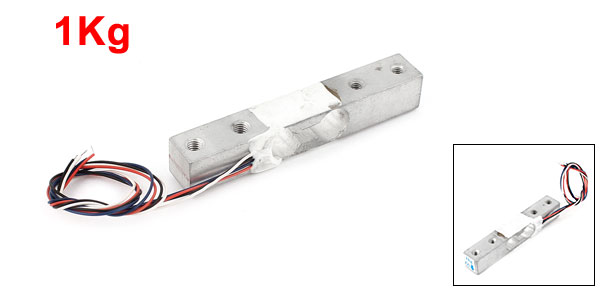

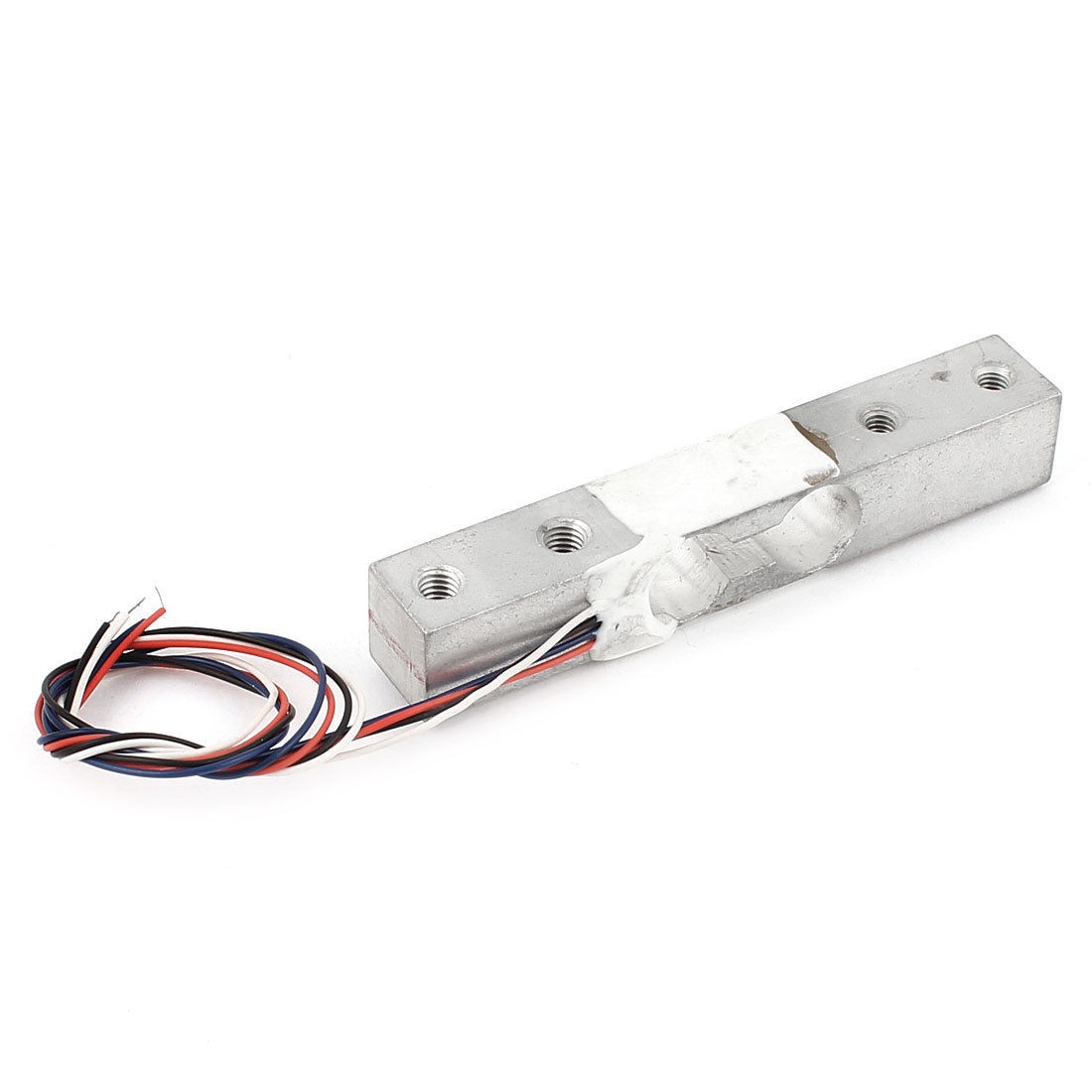

Portable Electronic Scale 4 Wire Connect Aluminium Alloy Mini Load Cell 1kg

Portable Electronic Scale 4 Wire Connect Aluminium Alloy Mini Load Cell 1kg

More Views

Portable Electronic Scale 4 Wire Connect Aluminium Alloy Mini Load Cell 1kg
$15.73

Availability: In stock

OR
Description

Details

Portable Electronic Scale 4-Wire Connect Aluminium Alloy Mini Load Cell 1Kg

Product Name Load Cell
Model YZC-131
Rated Load 1Kg /2.2lb
Rated Output 1.0 ±0.15mV/V
Input Resistance 1115±10% Ω
Output Resistance 1000 ± 10 Ohm
Insulation Resistance ≥1000 MΩ
Working Temperature -20°C~+65°C
Compensated Temperature Range -20°C~+60°C
Safety Overload 200%F.S
Recommend Excitation Voltage DC 5-12V
Max Excitation Voltage DC 15V
Total Size 80 x 12.7 x 12.7mm /3" x 0.5" x 0.5"(L*W*T)
Thead Hole Diameter 4mm / 0.16"
Cable Length 240mm/ 9''
Material Aluminium Alloy
Color Silver Tone
Weight 28g
Package Content 1 x Load Cell
