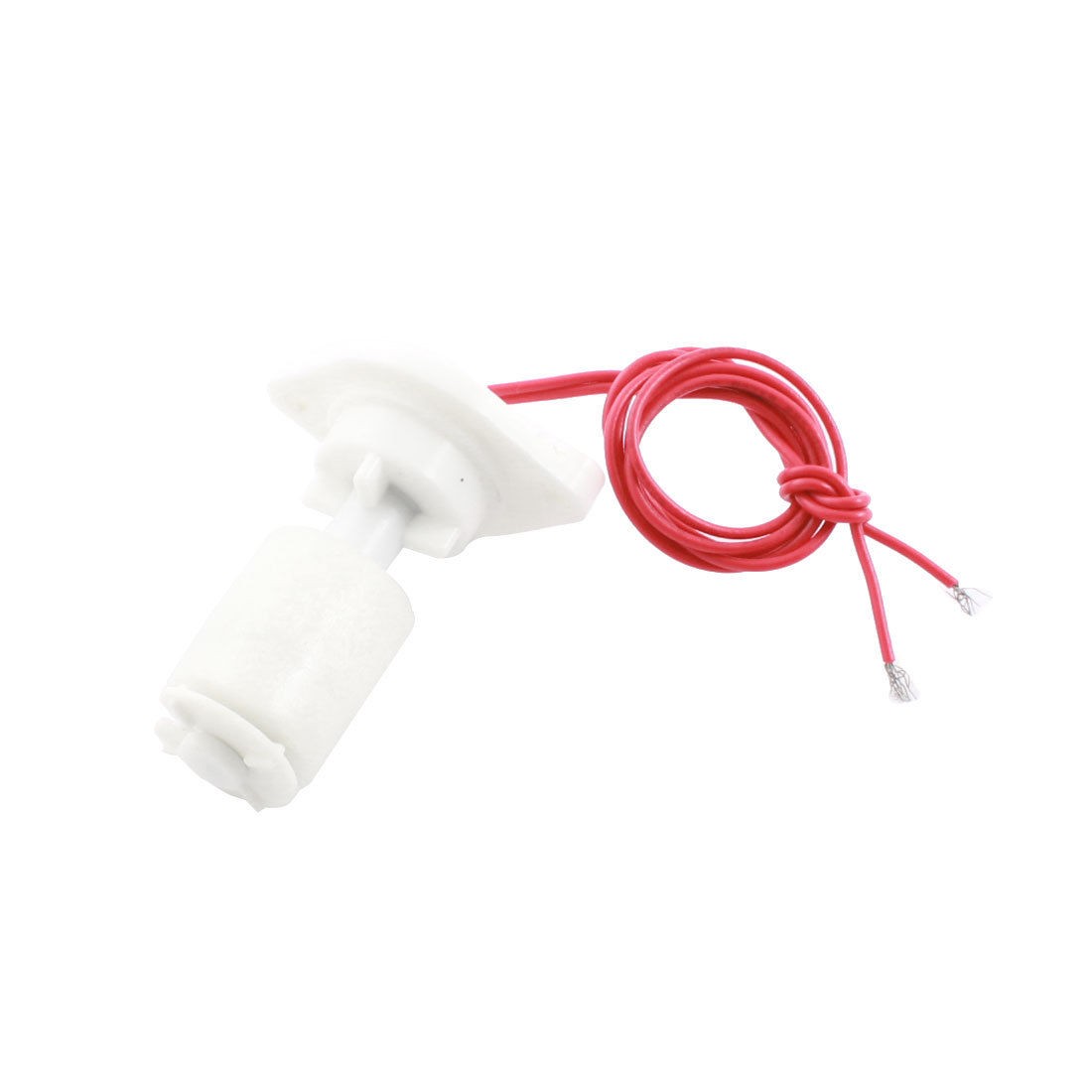

Pool Tank Water Level Sensor Vertical White Float Ball Switch 12"

Pool Tank Water Level Sensor Vertical White Float Ball Switch 12"

More Views

Pool Tank Water Level Sensor Vertical White Float Ball Switch 12"
$9.28

Availability: In stock

OR
Description

Details

Pool Tank Water Level Sensor Vertical White Float Ball Switch 12"

Product Name Float Switch
Max Contact Rating
10W
Max Switching Voltage DC 100V
Max Switching Current 0.5A
Max Breakdown Voltage DC 220V
Max Carry Current 1.0A
Max Contact Resistance 100 Ohm
Temperature Rating -10 ~ +60 C / 85 °C
Float Ball Size(Approx) 19 x 22mm /0.75" x 0.87"(D*H)
Bottom Clip Dia(Approx) 18mm / 0.71"
Straight Bar Dia 8mm/0.31"
Fixing Hole Dia 3mm/0.12"
Fixing Hole Center Distance 34mm/1.3"
Base Size 41.5 x 30 x 3mm/1.7" x 1.2" x 0.12"(L*W*T)
Body Total Height 50mm /2"
Total Length 30cm /12"
Material Plastic
Color White, Red
Net Weight 14g
Package Content 1 x Float Switch
