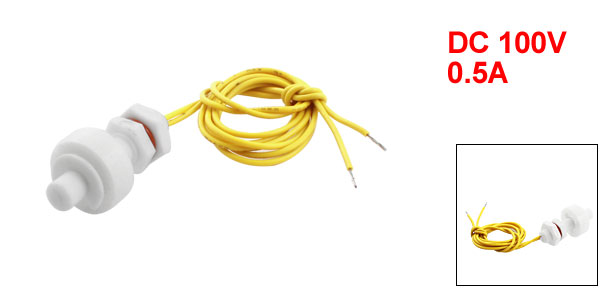

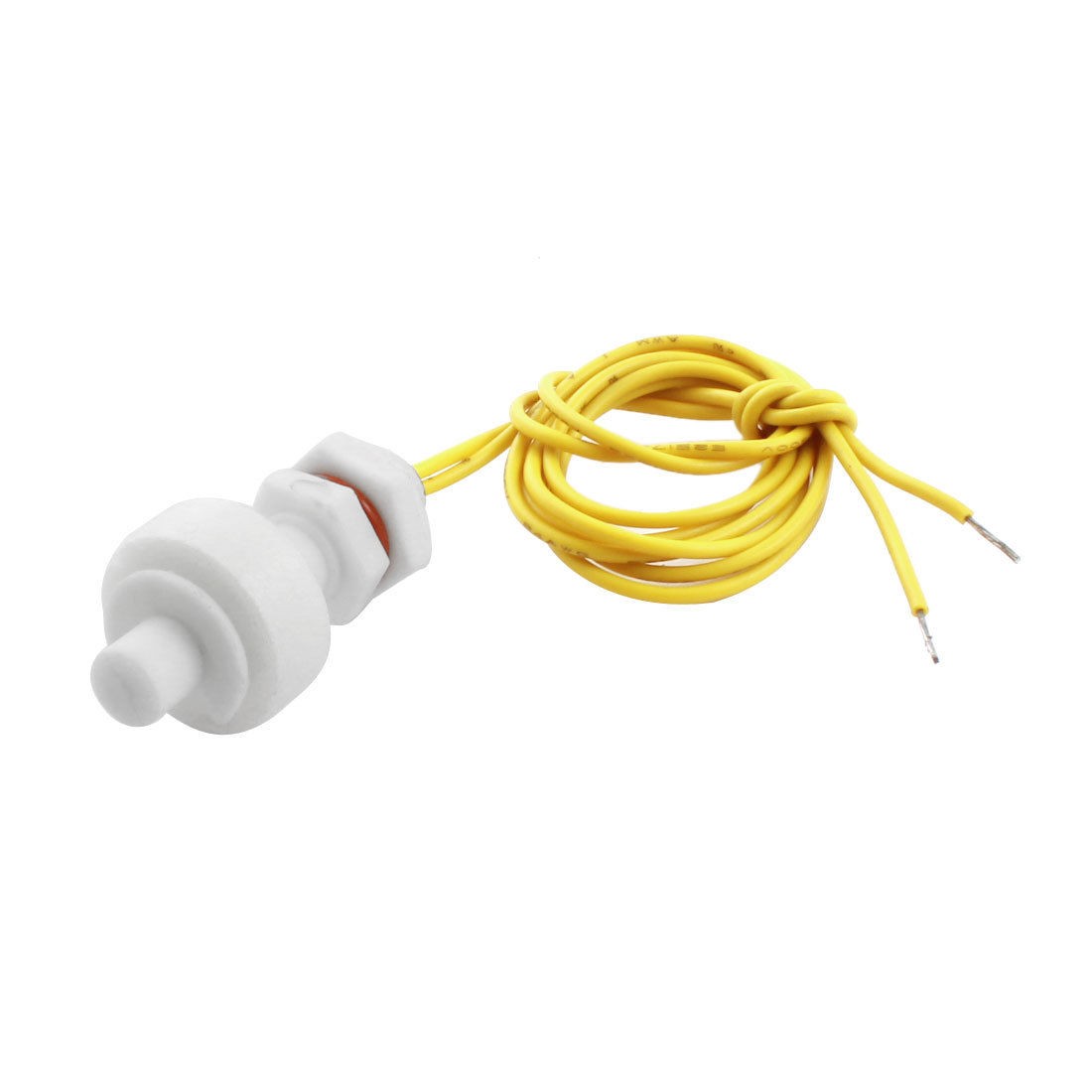

Pool Liquid Level Control Vertical Mount Plastic Float Ball Switch 16"

Pool Liquid Level Control Vertical Mount Plastic Float Ball Switch 16"

More Views

Pool Liquid Level Control Vertical Mount Plastic Float Ball Switch 16"
$9.78

Availability: In stock

OR
Description

Details

Pool Liquid Level Control Vertical Mount Plastic Float Ball Switch 16"

Product Name Float Switch
Max Contact Rating
10W
Max Switching Voltage DC 100V
Max Switching Current 0.5A
Max Breakdown Voltage DC 220V
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +60 °C / 85 °C
Float Ball Size(Approx) 18 x 7mm /0.71" x 0.28"(D*T)
Thread Dia(Approx) 8mm / 0.31"
Nut Dia(Approx) 15mm / 0.6"
Bottom Clip Dia(Approx) 13.5mm / 0.53"
Straight Bar Dia 6.5mm/0.25"
Body Total Length 35mm /1.4"
Total Length 40cm /16"
Material Plastic
Color White, Yellow
Net Weight 7g
Package Content 1 x Float Switch
