PM-1220S Two F type Female Connector C-Band One Cable Solution LNBF 5150/5750MHz

PM-1220S Two F type Female Connector C-Band One Cable Solution LNBF 5150/5750MHz

PM-1220S Two F type Female Connector C-Band One Cable Solution LNBF 5150/5750MHz

More Views

PM-1220S Two F type Female Connector C-Band One Cable Solution LNBF 5150/5750MHz

$45.30

Availability: In stock

Qty:

OR

Description

Details

PM-1220S Two F type Female Connector C-Band One Cable Solution LNBF 5150/5750MHz

Product Name	C-Band One Cable Solution LNBF
Model	PM-1220S
Input Frequency	3.7-4.2GHz
L.O.Frequency	5150/5750MHz
L.O.Frequency	+-2MHz(-40degree to +70degree)
Lo Leakage Input Port	-45dBm
Output Frequency	950 to 1450MHz, 1550 to 2050MHz
Conversion Gain	60dB(Min.)
Gain Flatness	+-1dB/36MHz
Supply Voltage	AC 13~24V/150mA(Max.)
Output Connector	Two F-female Connector
Noise Figure	17K
Size	200 x 75 x 80mm/ 7.8" x 3" x 3.14" (LWH)
Net Weight	361g

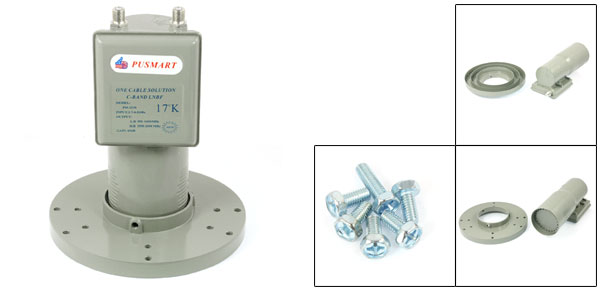

Content Package	1 x C-Band One Cable Solution LNBF 7pcs x Mounting Screws
