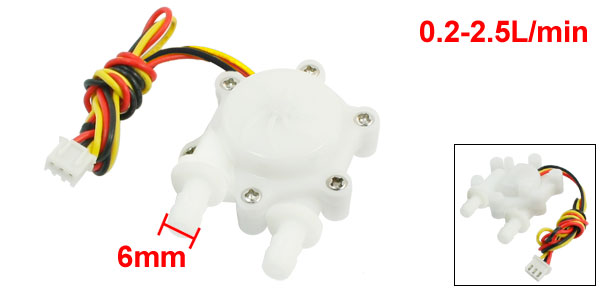

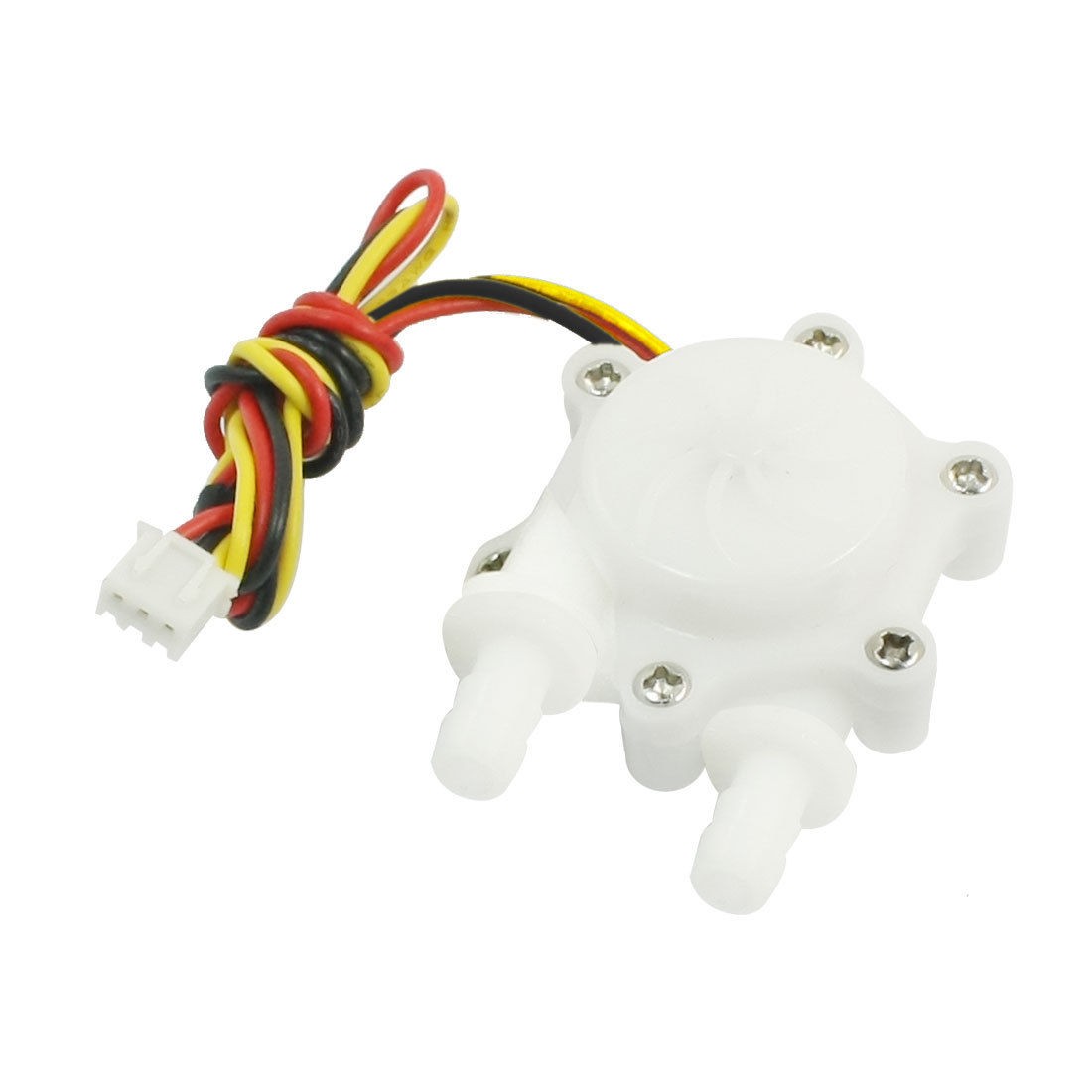

One Way 360 Degree 6mm Inlet Outlet Outer Dia Water Flow Sensor 0.2-2.5L/min

One Way 360 Degree 6mm Inlet Outlet Outer Dia Water Flow Sensor 0.2-2.5L/min

More Views

One Way 360 Degree 6mm Inlet Outlet Outer Dia Water Flow Sensor 0.2-2.5L/min
$10.02

Availability: In stock

OR
Description

Details

One Way 360 Degree 6mm Inlet Outlet Outer Dia Water Flow Sensor 0.2-2.5L/min

Product Name Water Flow Sensor
Model SEN-HW06C
Flow Range 0.2-2.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 0.8Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 55 x 40 x 23mm / 2.2" x 1.6" x 0.91"(L*W*T)
Outlet=Inlet Outer Diameter 6mm
Cable Length 32cm / 12.6"
Body Color White
Weight 26g
Package Content 1 x Water Flow Sensor
