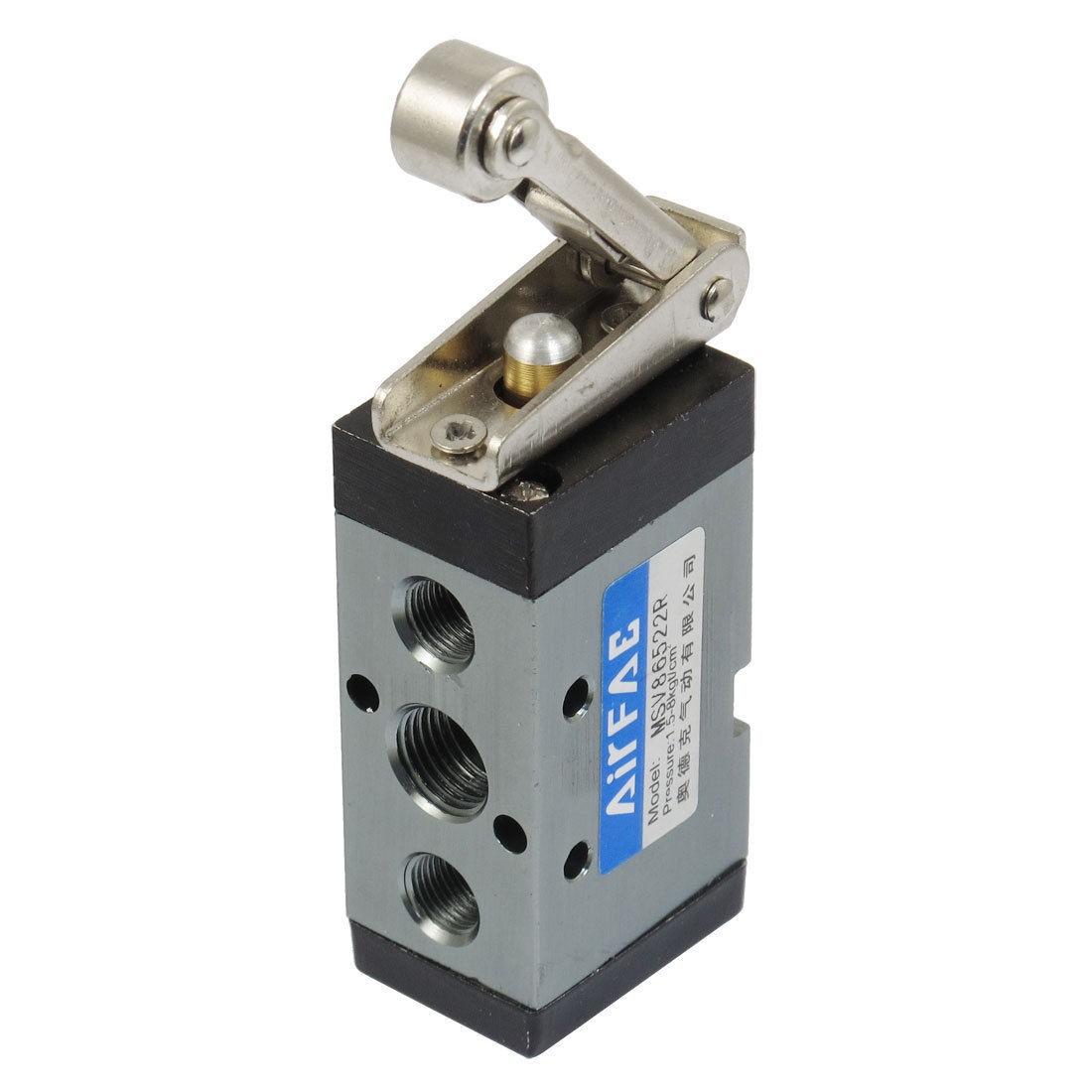

MSV-86522R 13mm Thread Input 2/5 Way Roller Type Solenoid Air Mechanical Valve
Product Name Mechanical Valve Model MSV-86522R Actuator Type Roller Type Fluid Air Position and Way No. 2 Position 5 Way Pipe Thread Diameter Air Inlet=Air Outlet=13mm
Exhaust=9.5mm

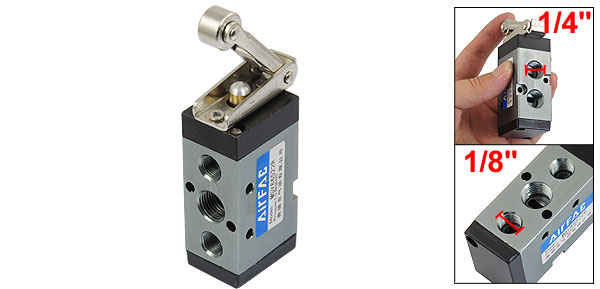

Pipe Size Air Inlet=Air Outlet=1/4" PT
Exhaust=1/8" PT
Hole Distance(Centre to Centre) 4mm/0.2" Working Pressure Range
1.5 - 8kgf/cm²
Roller Diameter 1.4cm / 0.5" Arm Size(not include roller) 3.4 x 1.2cm / 1.3" x 0.5" (L * W) Cylinder Size(Approx.) 6.6 x 3.4 x 2.5cm / 2.6" x 1..3" x 0.98"(L*W*H) Material Metal Color Black, Gray, Silver Tone Weight 181g Package 1 x Mechanical Valve - Reviews
-
