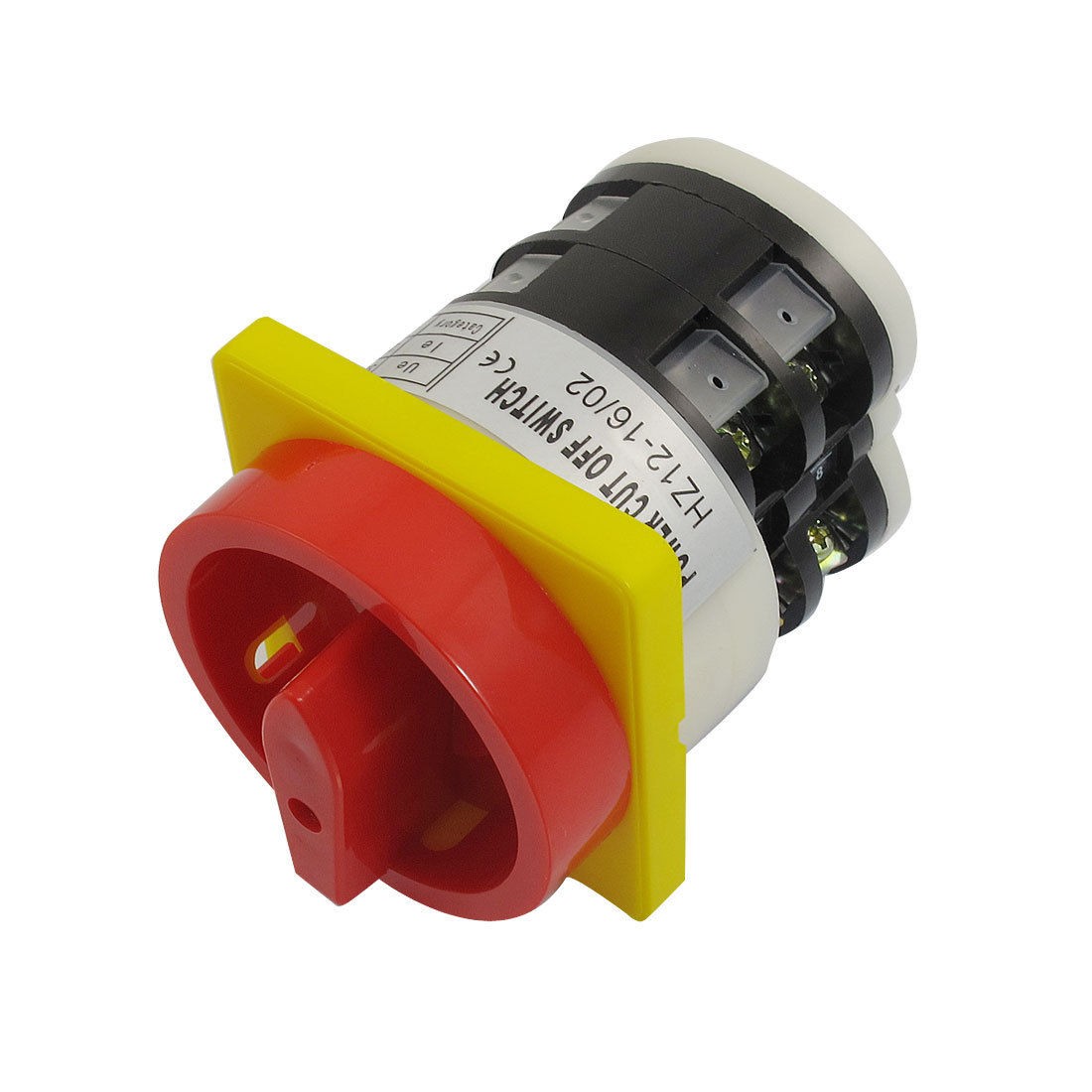

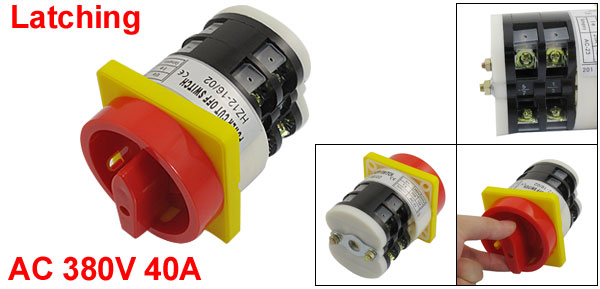

Lock 8 Terminals 2 Position AC 380V 40A Cam Combination Changeover Switch Rotary

Lock 8 Terminals 2 Position AC 380V 40A Cam Combination Changeover Switch Rotary

More Views

Lock 8 Terminals 2 Position AC 380V 40A Cam Combination Changeover Switch Rotary
$17.94

Availability: In stock

OR
Description

Details

Lock 8 Terminals 2 Position AC 380V 40A Cam Combination Changeover Switch Rotary

Product Name Changeover Switch
Model No. HZ12-16/02
Action Type Latching
Ui AC 380V
Ith 40A
Ue(AC-23) 380V/500V
Ie(AC-23) 25A/12A
Positions 2(0-1)
Terminal Number 8
Thread Hole Distance 56mm/ 2.2"(Center to Center)
Thread Hole Size 6 x 5mm/ 0.24" x 0.2"(L*W)
Body Diameter 70mm/ 2.76"
Overall Size 73x 73 x 110mm / 2.87" x 2.87" x 4.33"(L*W*H)
External Material Plastic
Net Weight 331g
Package Content

1 x Changeover Switch
