  • LJ30A3-15-Z/BX 15mm NPN Normal Open Inductive Sensor Proximity Switch DC6-36V

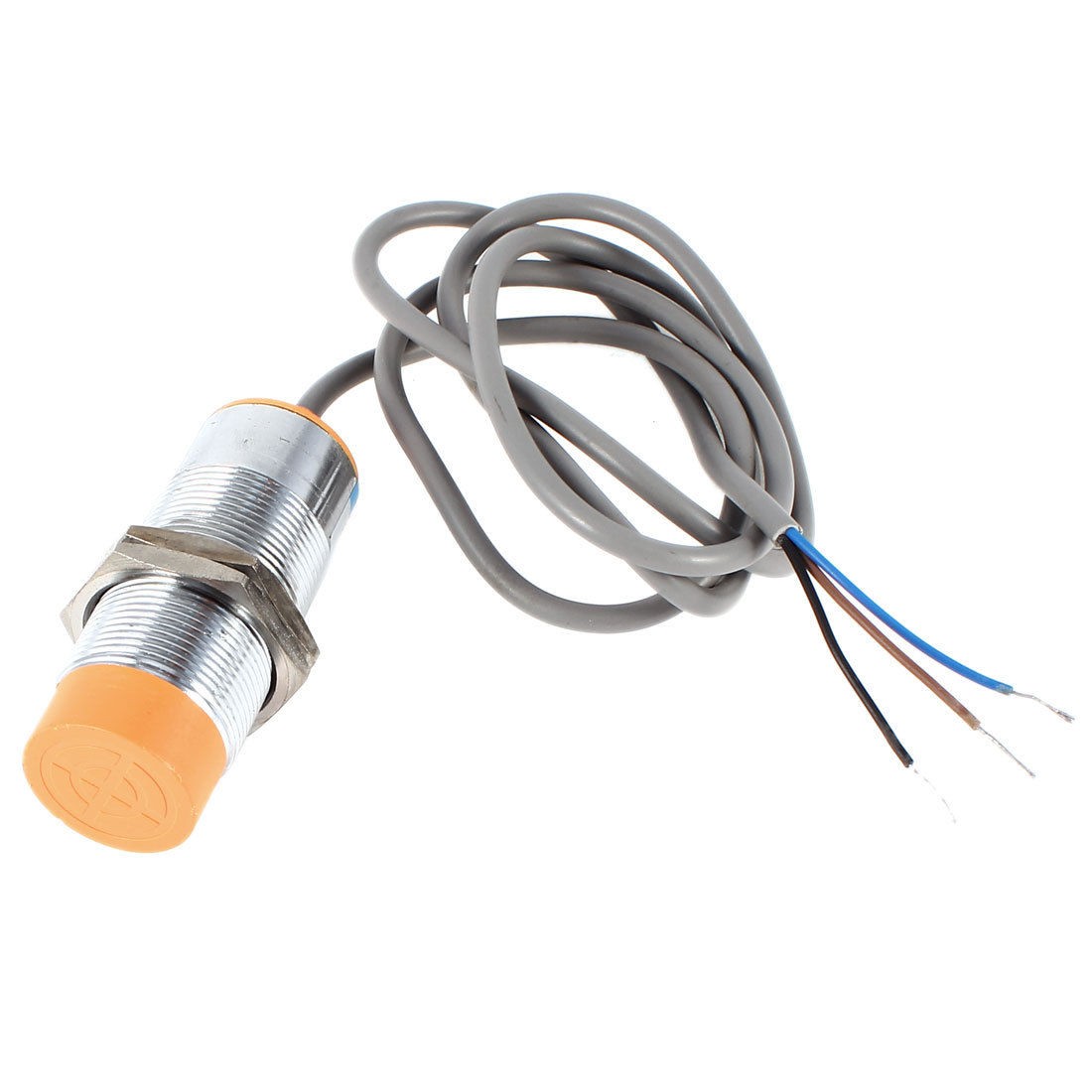

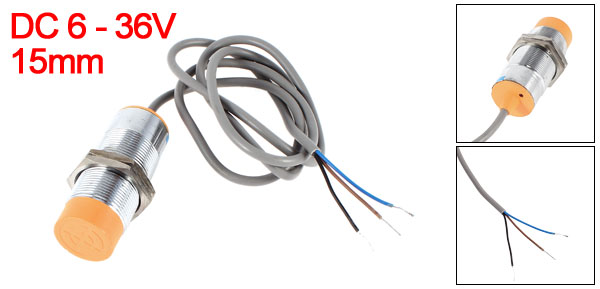

LJ30A3-15-Z/BX 15mm NPN Normal Open Inductive Sensor Proximity Switch DC6-36V

LJ30A3-15-Z/BX 15mm NPN Normal Open Inductive Sensor Proximity Switch DC6-36V

More Views

LJ30A3-15-Z/BX 15mm NPN Normal Open Inductive Sensor Proximity Switch DC6-36V
$14.03

Availability: In stock

OR
Description

Details

LJ30A3-15-Z/BX 15mm NPN Normal Open Inductive Sensor Proximity Switch DC6-36V

Product Name Proximity Sensor
Model LJ30A3-15-Z/BX
Detecting Distance 15mm ± 10%
Standard Detecting Target 30 x 30 x 1mm
Setting Distance 0 to 10.5
Power Supply DC 6 - 36V
Current Consumption Max. 10mA
Response Frequency 200Hz
Residual Voltage Max. 15V
Control Output 200mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1500V AC, 50/60Hz for 1 Minute
Ambient Temperature -25C to 70C
Protection IP67
Output Type NPN  NO(Normal Open)
Column Sensor Diameter 28mm/1.1"
Thread Diameter 30mm/1.2"

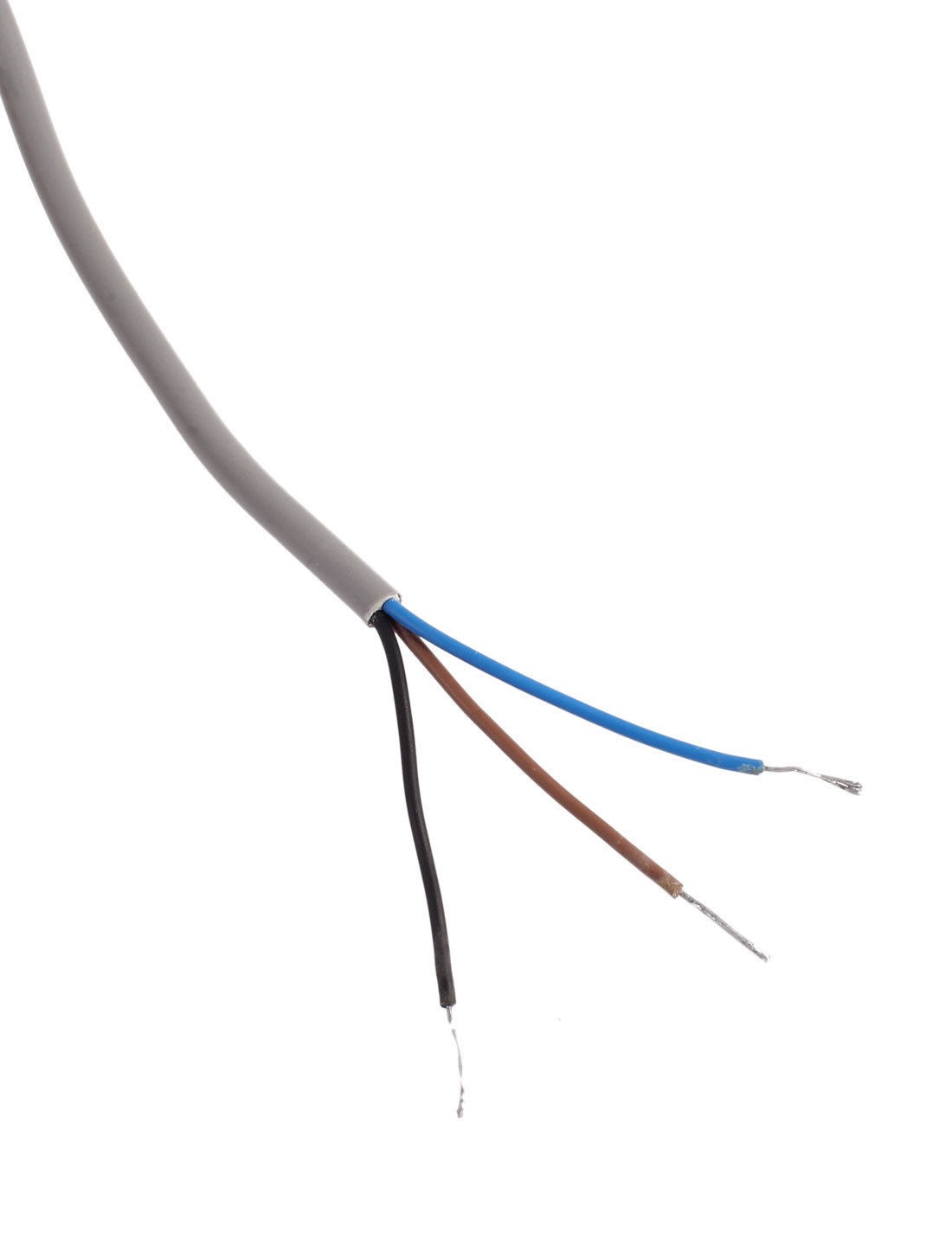

Cable Length 112cm/3.7ft
Weight 88g
Package Content 1 x Proximity Sensor
