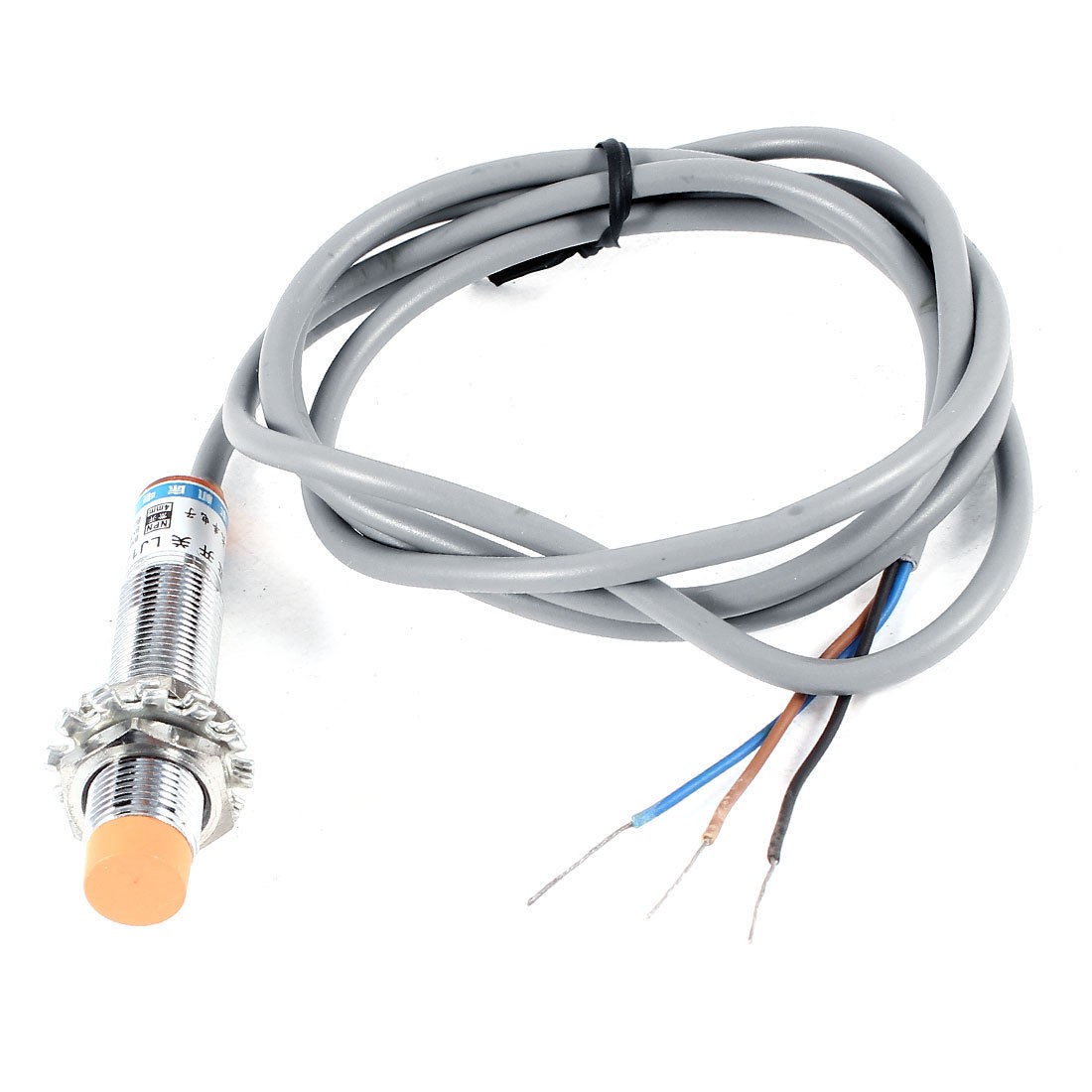

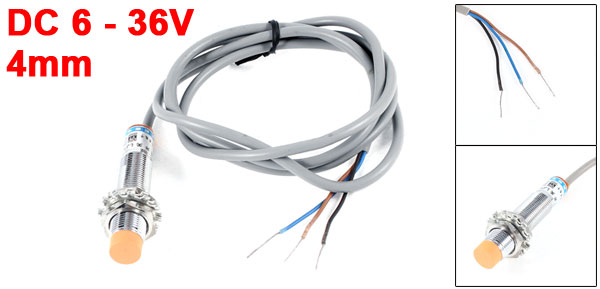

LJ12A3-4-Z/BX 4mm NPN Normal Open Inductive Sensor Proximity Switch

LJ12A3-4-Z/BX 4mm NPN Normal Open Inductive Sensor Proximity Switch

More Views

LJ12A3-4-Z/BX 4mm NPN Normal Open Inductive Sensor Proximity Switch
$9.46

Availability: In stock

OR
Description

Details

LJ12A3-4-Z/BX 4mm NPN Normal Open Inductive Sensor Proximity Switch

Product Name Proximity Sensor
Model LJ12A3-4-Z/BX
Detecting Distance 4mm ± 10%
Standard Detecting Target 15 x 15 x 1mm
Setting Distance 0 to 3.6mm
Power Supply DC 6 - 36V
Current Consumption Max. 13mA
Response Frequency 200Hz
Residual Voltage Max. 13V
Control Output 200mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1000V AC, 50/60Hz for 1 Minute
Ambient Temperature -20C to 60C
Protection IP65
Output Type NPN  NO(Normal Open)
Column Sensor Diameter 10.5mm/0.41"
Thread Diameter 12mm/0.47"
Cable Length 113cm/3.7ft
Weight 43g
Package Content 1 x Proximity Sensor
