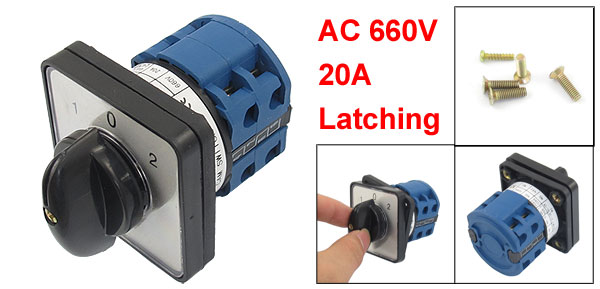

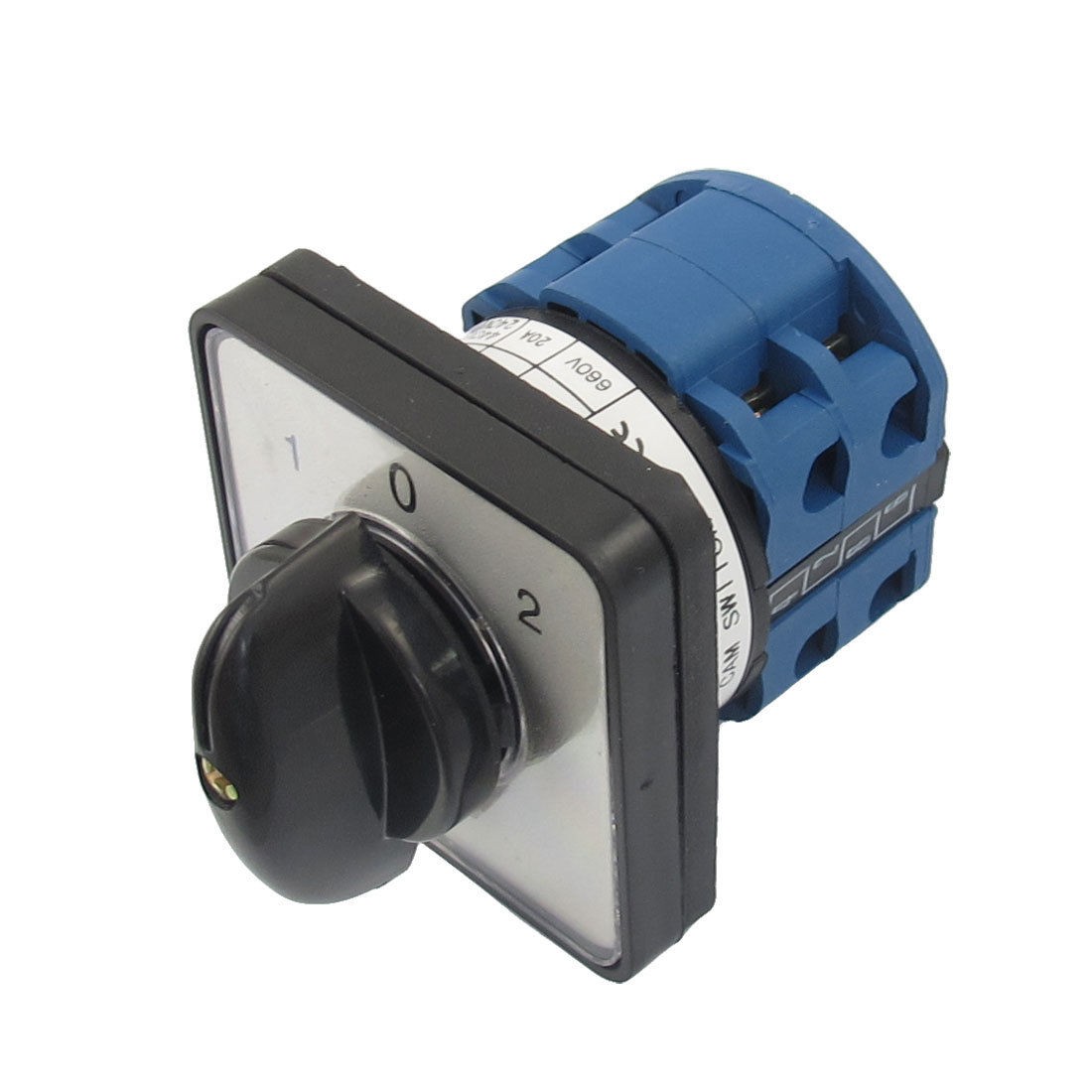

Latching AC 660V 20A 8 Terminal Three Position Cam Combination Changeover Switch
Product Name Changeover Switch Model No. SZW26-20/D0401.2 Action Type Latching Ui AC 660V Ith 20A Ue AC440V/240V Ie 0.95A/1.6A(AC-15)
0.14A(DC-13)
5A(AC-3)
Positions 3(1-0-2) Terminal Number 8 Suitable Board(Max.) 4mm/ 0.157"(Adjustable) Screw Size 14 x 3.8mm/ 0.55" x 0.15"(L*Dia)
14 x 3mm/ 0.55" x 0.12"(L*Dia)
Thread Hole Distance 36mm/ 1.42"(Center to Center) Thread Hole Duameter 4.2mm/ 0.165" Body Diameter 44mm/ 1.7" Overall Size 50x 50 x 69mm / 1.97" x 1.97" x 2.72"(L*W*H) External Material Plastic Net Weight 90g Package Content 1 x Changeover Switch
5 x Pcs Screws
