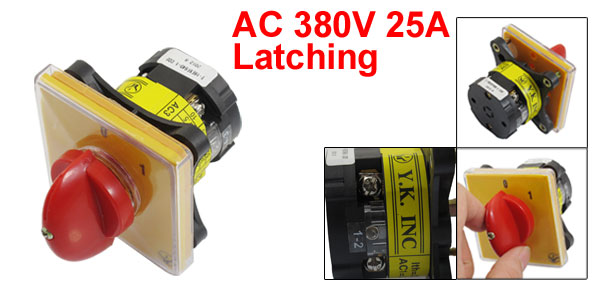

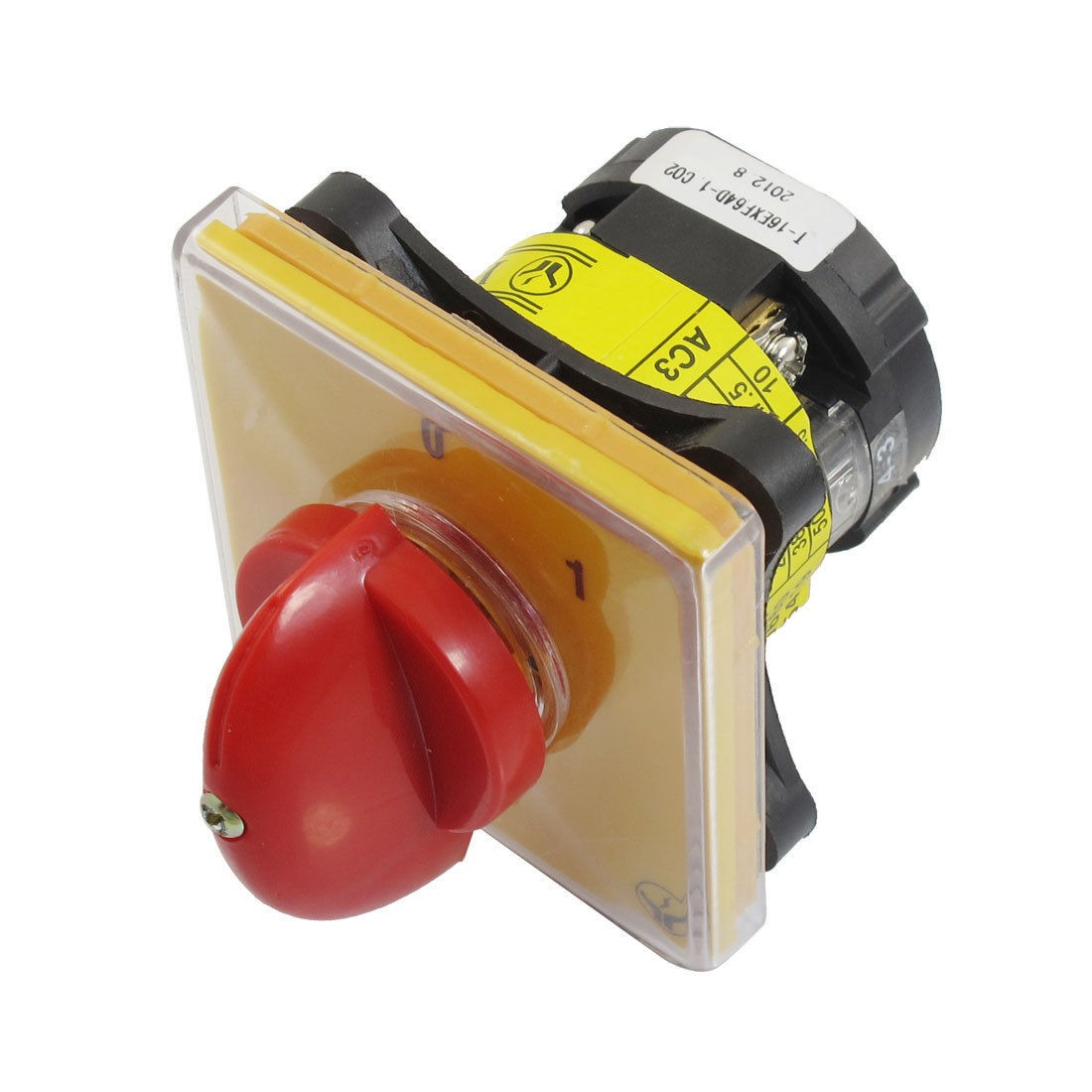

Latching 4 Terminals AC 380V 25A Two Position Cam Combination Changeover Switch

Latching 4 Terminals AC 380V 25A Two Position Cam Combination Changeover Switch

More Views

Latching 4 Terminals AC 380V 25A Two Position Cam Combination Changeover Switch
$10.50

Availability: In stock

OR
Description

Details

Latching 4 Terminals AC 380V 25A Two Position Cam Combination Changeover Switch

Product Name Changeover Switch
Model No. YK-1.C02
Action Type Latching
Rated Voltage AC 380V
Ith 25A
AC1 20A
Voltage 220V/380V/500V
Power

3.7KW/5.5KW/7.5KW

5HP/7.5HP/10HP
Positions 2(0-1)
Terminal Number 4
Suitable Board(Max.) 5mm/ 0.197"(Adjustable)
Thread Hole Distance 48mm/ 1.89"(Center to Center)
Thread Hole Diameter 4.5mm/ 0.18"
Body Diameter 45mm/ 1.77"
Overall Size 64x 64 x 78mm / 2.52" x 2.52" x 3.07"(L*W*H)
External Material Plastic
Net Weight 124g
Package Content

1 x Changeover Switch
