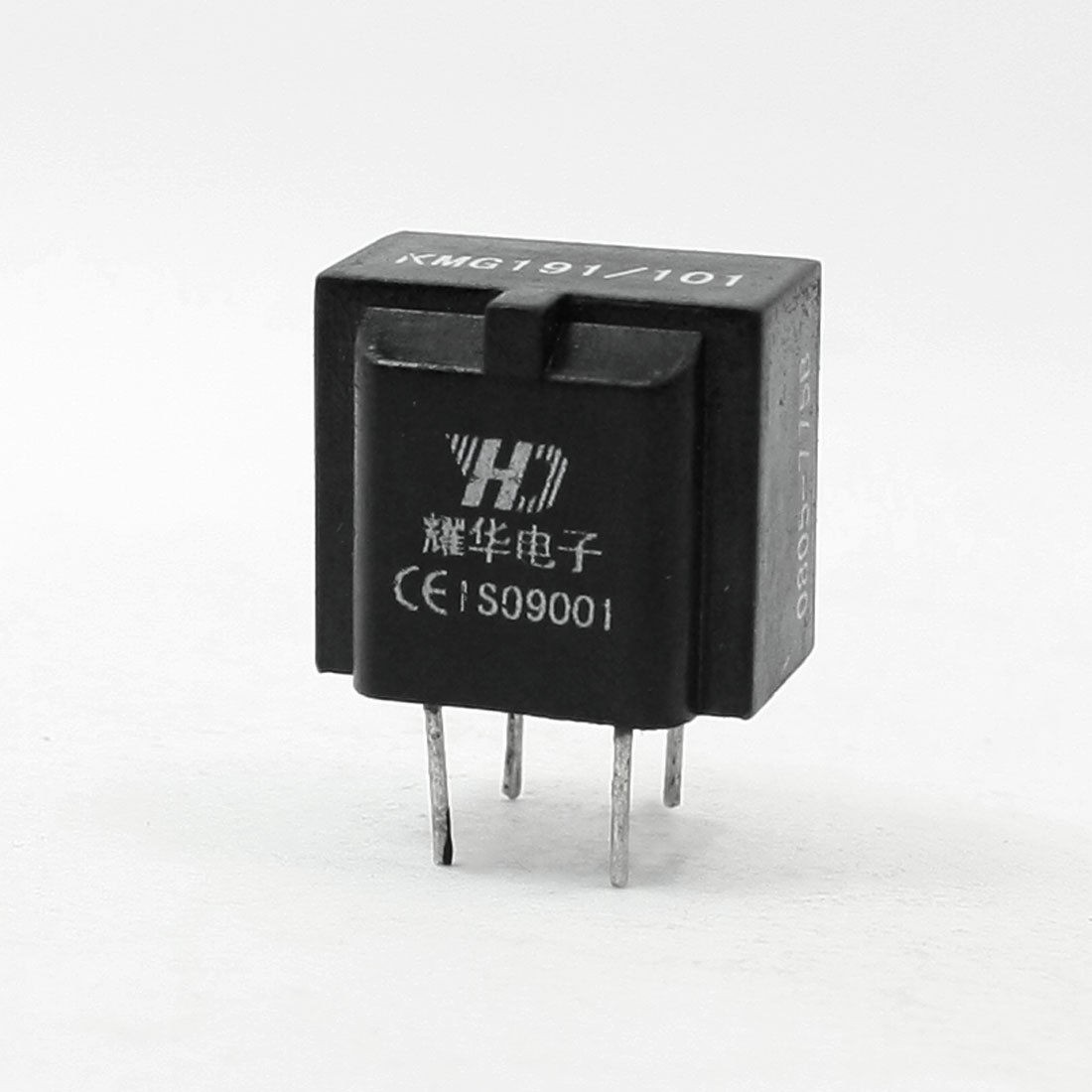

KMG191/101 1:1 4Pins PCB Mounting Pulse Transformer for SCR

KMG191/101 1:1 4Pins PCB Mounting Pulse Transformer for SCR

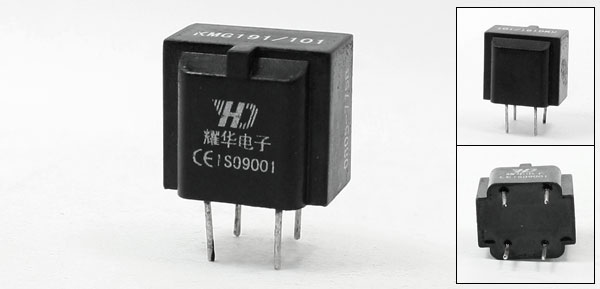

More Views

KMG191/101 1:1 4Pins PCB Mounting Pulse Transformer for SCR
$13.30

Availability: In stock

OR
Description

Details

KMG191/101 1:1 4Pins PCB Mounting Pulse Transformer for SCR

Product Name Pulse Transformer
Model KMG191/101
Dielectric Strength 10KV AC / 1min
Working Frequency 50Hz-1000Hz
Transformation Ratio 1:1
Transmission Pulse Width 500us
Highest Working Voltage in Major Loop 1500V
Triggering Mode(Recommended) Single Pulse or Pulse Train
Input Pulse Width 8V
Outout Pulse Width (RL=7Ω) >=5V
Pins Quantity 4
Distance Between Input Pins(for Each) 8mm
Distance Between Output Pins(for Each) 8mm
Distance Between Input and Output Pin Lines 12mm
Total  Size(Pins not Included) 22 x 17 x 19mm/0.86" x 0.67" x0.75"(L*W*H)
Color Black
Weight 75g
Package Content 1 x Pulse Transformer
