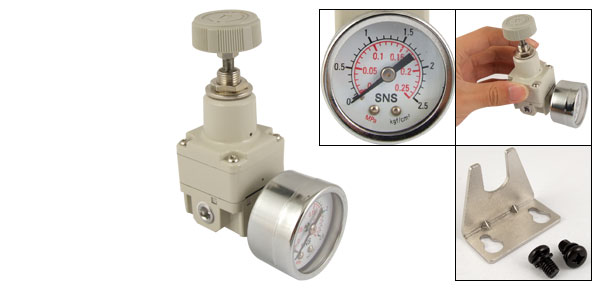

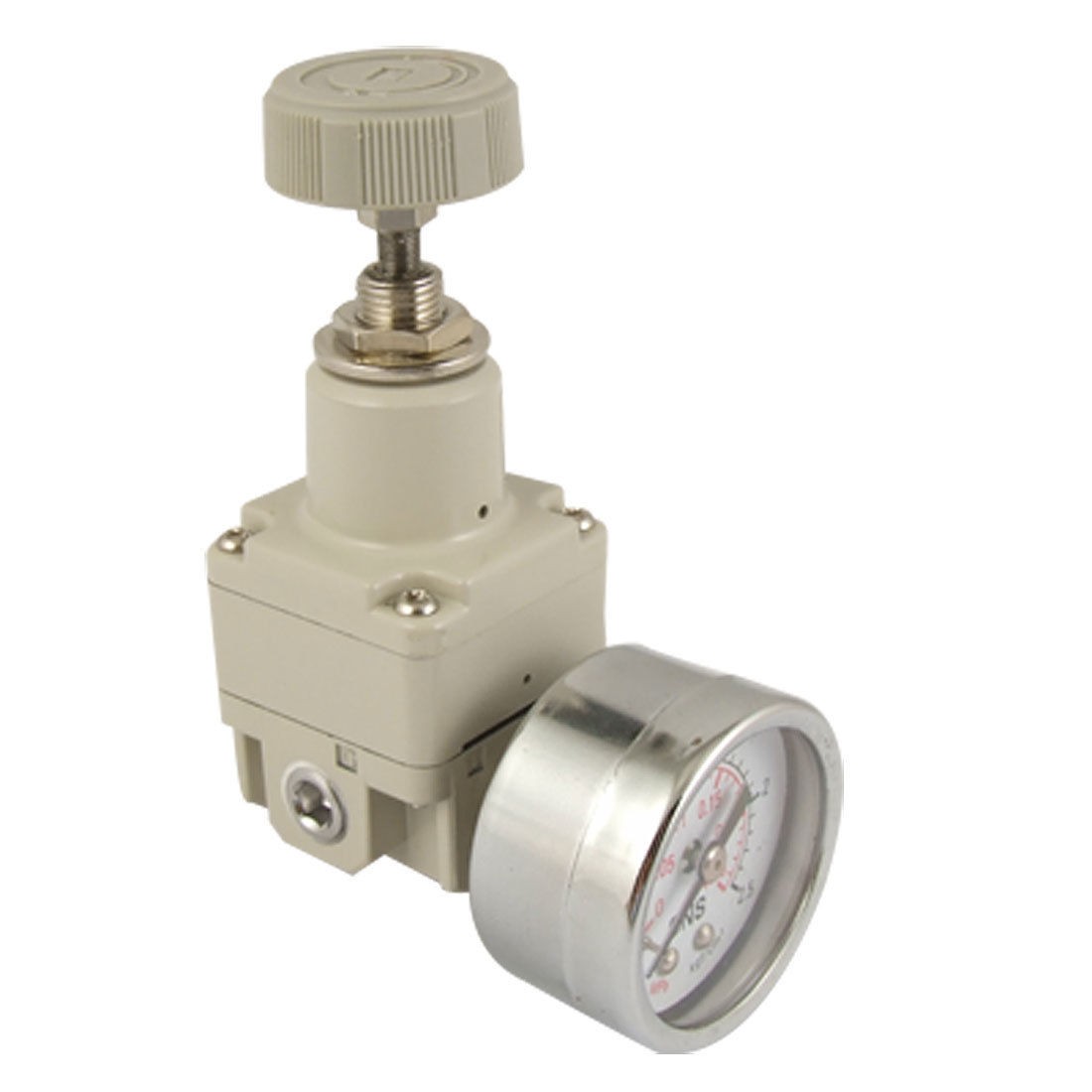

IR1000-01 Pneumatic Air Pressure Precision Regulator
Product Name Precision Regulator Model IR1000-01 Tread Diameter 8.6mm/ 0.3" Max. Supply Pressure 1.0MPa Compression Resistance 1.5MPa Voltage Regulation Range 0.005-0.2MPa Output Pressure(Max) 1MPa Output Pressure(Min) 0.05MPa Sensitivity <=0.2% Multiplicity <=0.5% Gauge Range 0~0.25 MPa, 0~2.5Kgf/cm² Guage Diameter 42mm/ 1.6" Regulator Size 3.5 x 3.5 x 9.1cm/ 1.4" x 1.4" x 3.6" (L*W*H) Bracket Size 4.2 x 3.5 x 2.2cm/1.6" x 1.4" x 0.8" (L*W*H) Material Metal, Plastic Color As Picture Shown Net Weight 206g Package Content 1 x Precision Regulator
1 x Bracket 2 x Screws - Reviews
-
