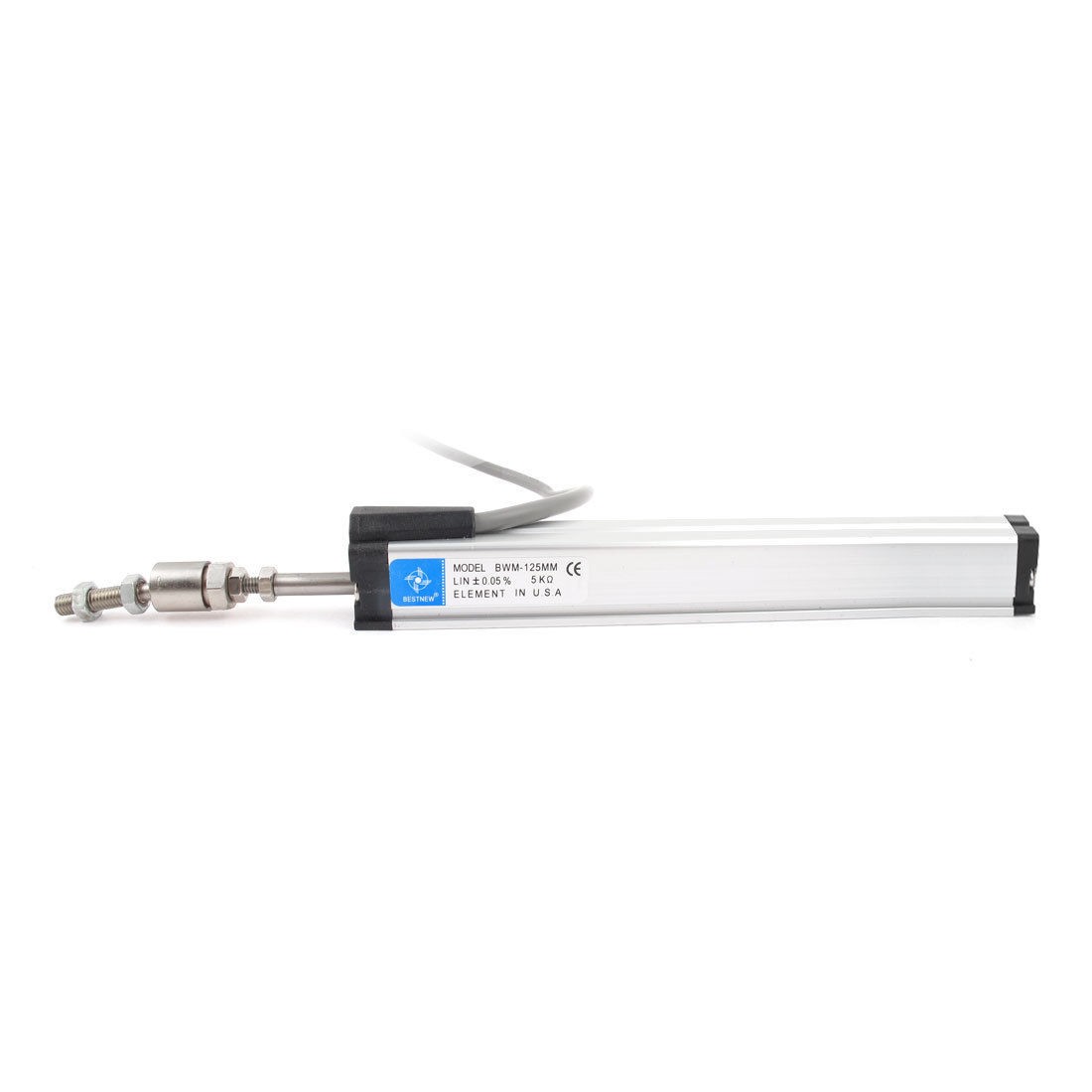

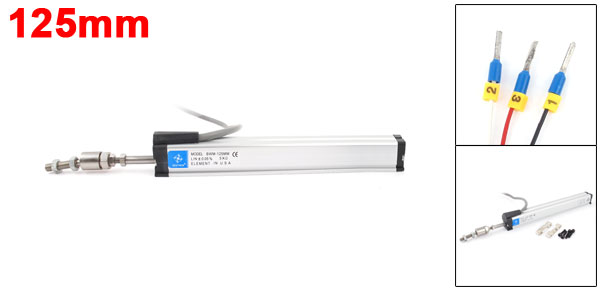

Injection Molding Machine 125mm Micro Linear Position Displacement Sensor BWM125

Injection Molding Machine 125mm Micro Linear Position Displacement Sensor BWM125

More Views

Injection Molding Machine 125mm Micro Linear Position Displacement Sensor BWM125
$64.48

Availability: In stock

OR
Description

Details

Injection Molding Machine 125mm Micro Linear Position Displacement Sensor BWM125

Product Name Linear Position Sensor
Model BWM125
Measuring Stroke 125mm
Repeated Accuracy 0.01mm
Output Wire Quantity 3
Resistance 5K Ohm(+/-10%)
Independent Linearity +/-0.05%
Mechanical Stroke 128mm
Resolution Infinite
Max. Working Speed 10m/s
Recommended Current <=10uA
Recommended Temperature -60-+150C
Body Size 169 x 18 x 18mm/6.7" x 0.7" x 0.7"(L*W*H)
Wire Length 129cm/4.2Ft
Universal Joint Thread Dia M5/0.2"
Mounting Screw Dia M4/0.16"
Materials Metal, Plastic
Net Weight 169g
Package Content 1 x Linear Position Sensor
1 x  Universal Joint
Several Installation Parts
