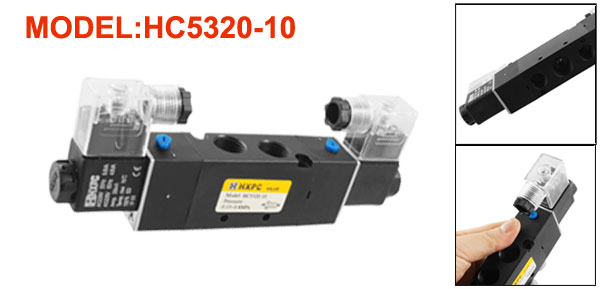

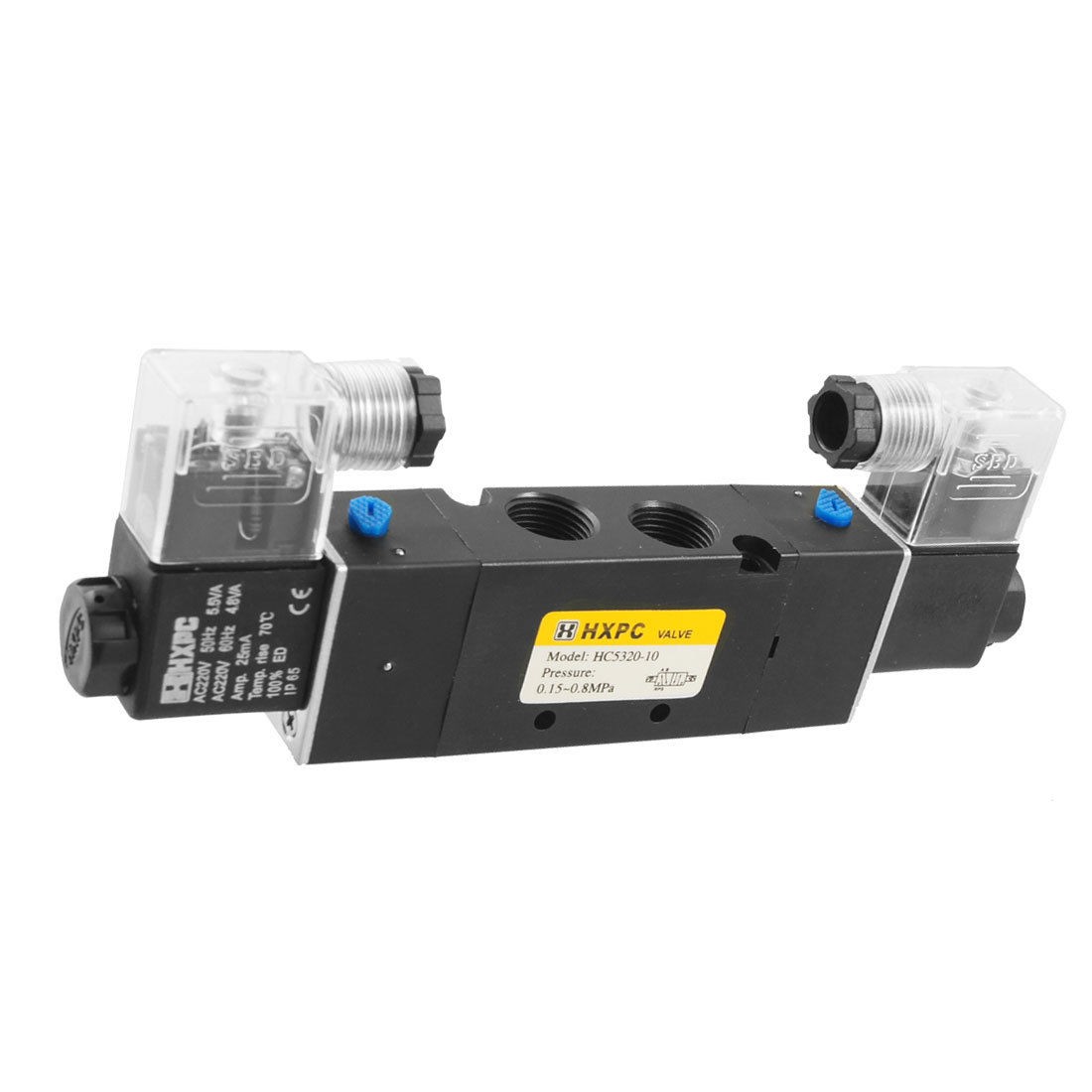

HC5320-10 AC 220V 25mA Pneumatic Solenoid Filter Air Valve 5 Port 2 Position

HC5320-10 AC 220V 25mA Pneumatic Solenoid Filter Air Valve 5 Port 2 Position

More Views

HC5320-10 AC 220V 25mA Pneumatic Solenoid Filter Air Valve 5 Port 2 Position
$36.08

Availability: In stock

OR
Description

Details

HC5320-10 AC 220V 25mA Pneumatic Solenoid Filter Air Valve 5 Port 2 Position

Product Name Pneumatic Solenoid Valve
Model HC5320-10
Type Inner Guide Type
Port Position 2 Position 5 Way
Working Medium Air(40 Micron Filtered Air)
Rating AC 220V 50HZ 5.5VA
AC 220V 60HZ 4.8VA
Current 25mA
ED 100%
Port Thread Diameter Air Inlet =Air Outlet=16mm, Exaust=12mm
Pipe Connection Air Inlet =Air Outlet=PT 3/8, Exaust =PT 1/4
Fixing Hole Diameter 4.2mm
Black Pull Into Hole Diameter 10.2mm / 0.4"
Pressure 0.15 - 0.8MPa
Operating Temperature -5 °C - 50°C
Total Size 191 x 68 x 26mm / 7.5" x 2.6" x 1" (L * W * T)
External Material Metal, Plastic
Color Black
Net Weight 382g
Package Content 1 x Pneumatic Solenoid Valve
