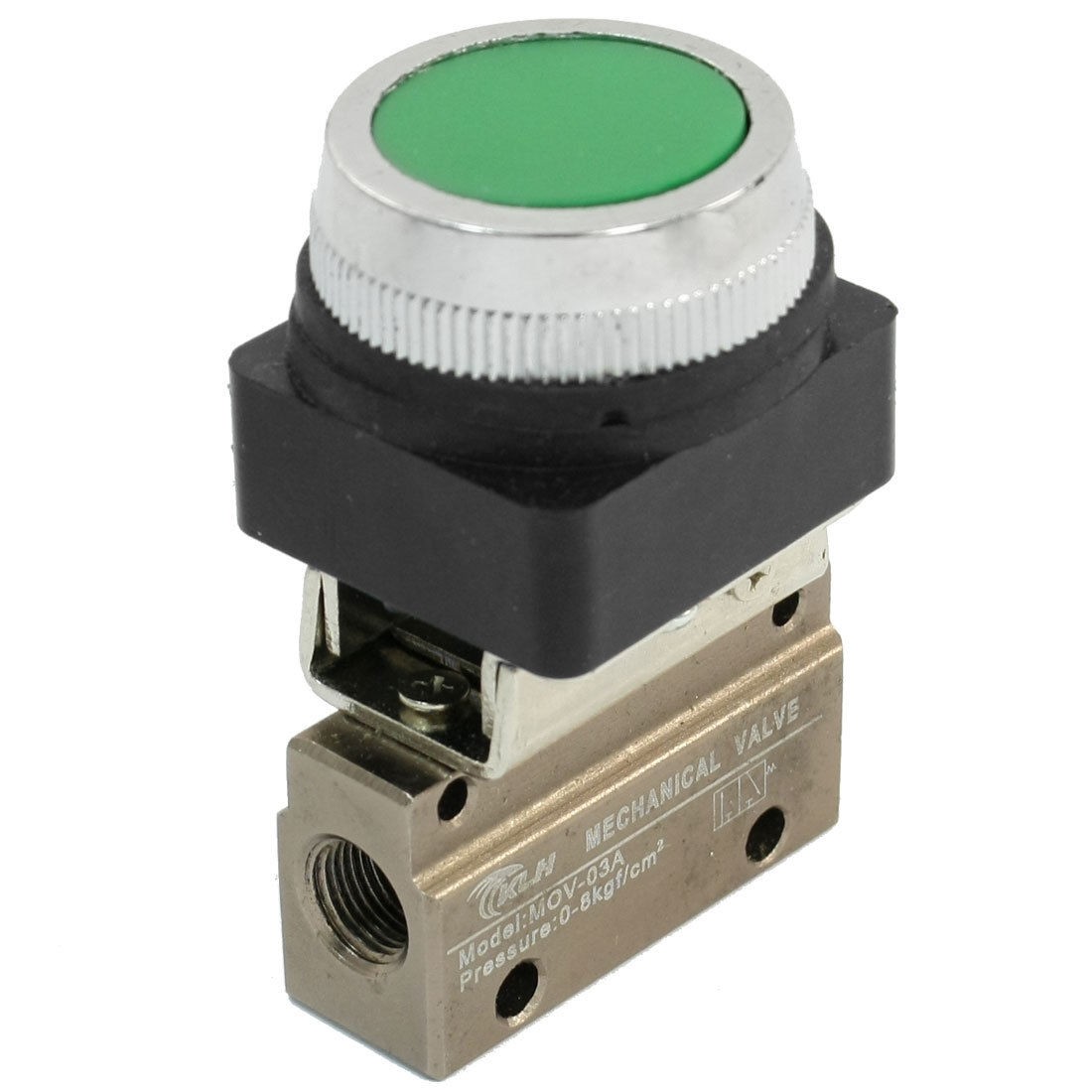

Green Push Button 2Position 3 Way Momentary Air Pneumatic Mechanical Valve 1/8PT

Green Push Button 2Position 3 Way Momentary Air Pneumatic Mechanical Valve 1/8PT

More Views

$12.79

Availability: In stock

Qty:

Description

Product Name	Mechanical Valve

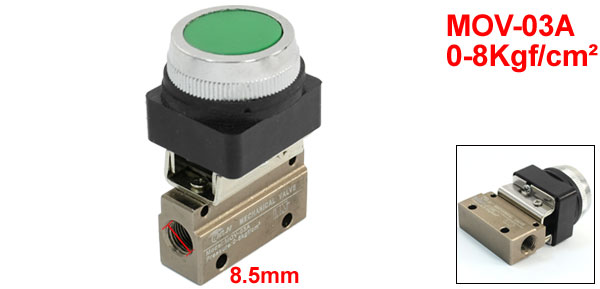

Model	MOV-03A
Action Type	Momentary
Button Type	Flat Round Button
Working Medium	Clear Air (40µm filteration)
Way Type	3
Position Type	2
Female Thread Diameter	8.5mm/1/8PT
Fix Hole Diameter	5.5mm/ 0.22"
Operating Temperature Range	0~ 70°C
Working Pressure Range	0-8Kgf/cm²
Button Diameter	25mm/ 1"
Body Size	43 x 15 x 35mm/ 1.7" x 0.6" x 1.4"(LWH)
Total Size(Approx)	65 x 43 x 32mm / 2.6" x 1.7" x 1.3" (LWH)
Fixed Hole Dia	4.3mm/0.17"
Material	Alloy, Plastic
Main Color	Gray, Black, Green
Net Weight	76g
Package Content	1 x Mechanical Valve
Package Content	1 x Mechanical Valve
