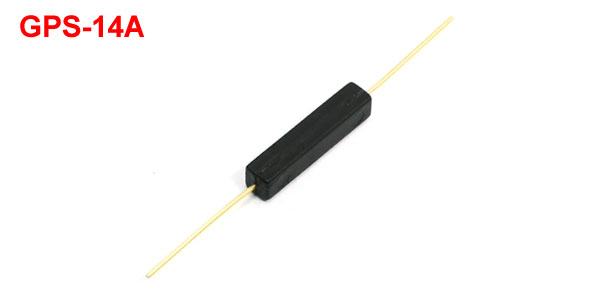

  • GPS-14A DC100V 0.5A Metal Wire Axial Lead Plastic Tube Reed Switch

GPS-14A DC100V 0.5A Metal Wire Axial Lead Plastic Tube Reed Switch

GPS-14A DC100V 0.5A Metal Wire Axial Lead Plastic Tube Reed Switch

More Views

GPS-14A DC100V 0.5A Metal Wire Axial Lead Plastic Tube Reed Switch
$3.64

Availability: In stock

OR
Description

Details

GPS-14A DC100V 0.5A Metal Wire Axial Lead Plastic Tube Reed Switch

Product Name Reed Switch
Model GPS-14A
Contact Type NO(Normal Open)
Max. Contact Rating 10W
Max. Switching Voltage DC 100V
Max. Switching Current 0.5A
Min. Breakdown Voltage DC 150V
Max. Initial Contact Resistance 100mOhm
Min. Insulation Resistance 109Ohm
Max. Release Time  0.1ms
Max. Operate Time   0.4ms
Tube Size (Approx.) 14 x 3mm/ 0.57" x 0.12" (L*D)
Lead Terminal Size(Each Side) 14 x 0.4mm/ 0.57" x 0.016"(L*D)
Total Length (Approx.) 42mm/ 1.7"
Material Plastic, Metal
Color Gold Tone, Black
Weight 1g
Package Content 1 x Reed Switch
