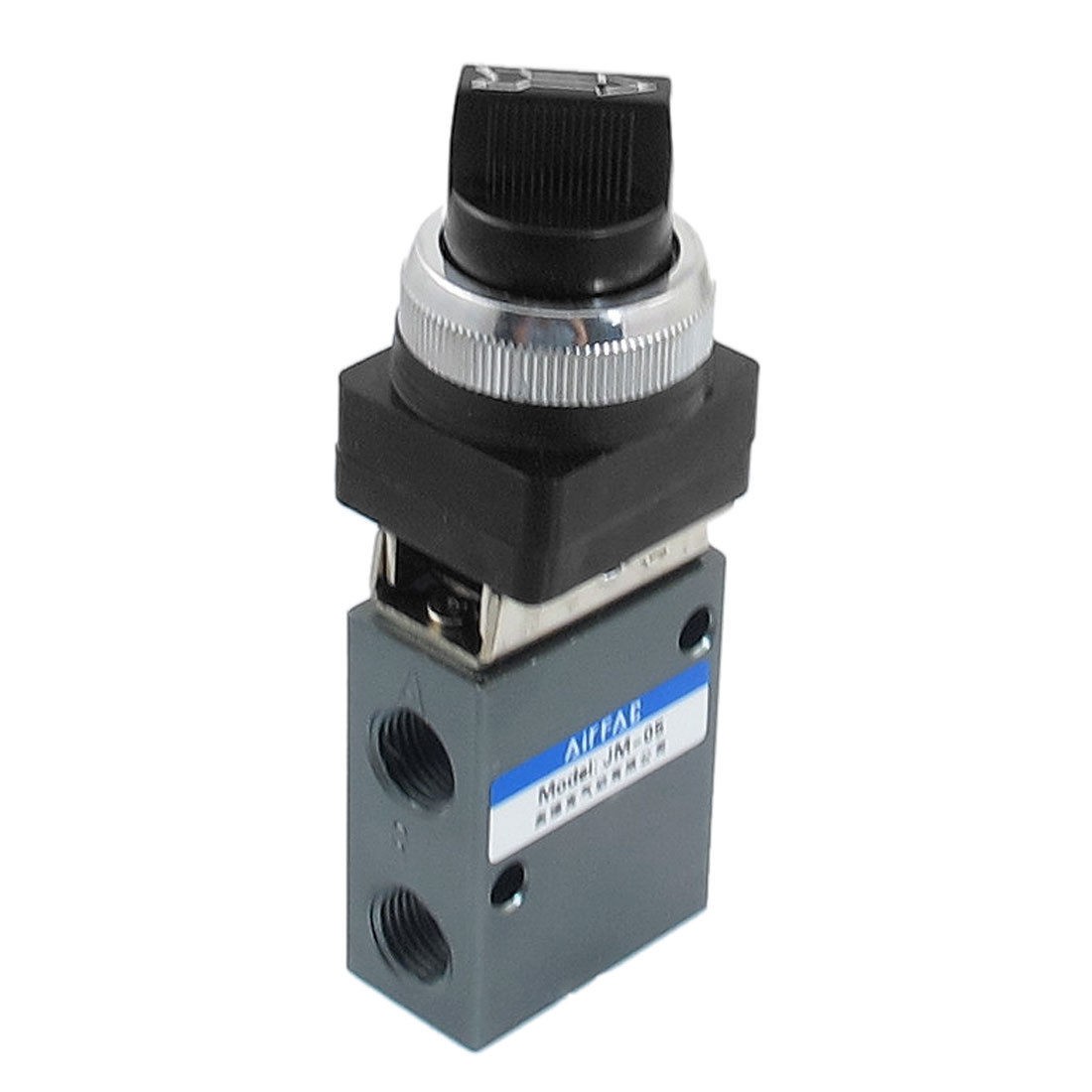

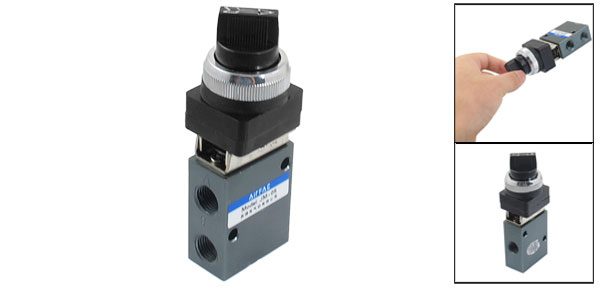

G1/4" 2 Position 3 Way Latching Knob Air Pneumatic Mechanical Valve

G1/4" 2 Position 3 Way Latching Knob Air Pneumatic Mechanical Valve

More Views

G1/4" 2 Position 3 Way Latching Knob Air Pneumatic Mechanical Valve
$12.74

Availability: In stock

OR
Description

Details

G1/4" 2 Position 3 Way Latching Knob Air Pneumatic Mechanical Valve

Product Name    Mechanical Valve
Model JM-05
Action Type Latching
Working Medium Clear Air (40µm filteration)
Way Type 3
Position Type 2
Female Thread Diameter 12mm
Female Thread Size G1/4"
Fix Hole Diameter 5.5mm/ 0.22"
Operating Temperature Range 0~ 60°C
Working Pressure Range 0 ~ 0.8MPa
Knob Diameter 24mm/ 0.94"
Body Size 40 x 22 x 50mm/ 1.57" x 0.87" x 1.97"(L*W*H)
Total Size(Approx) 40 x 32 x 115mm / 1.57" x 1.26" x 4.53" (L*W*H)
Material Alloy
Main Color Gray, Black
Net Weight 145g
Package Content 1 x Mechanical Valve
