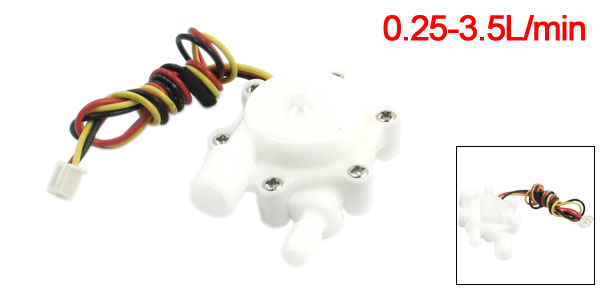

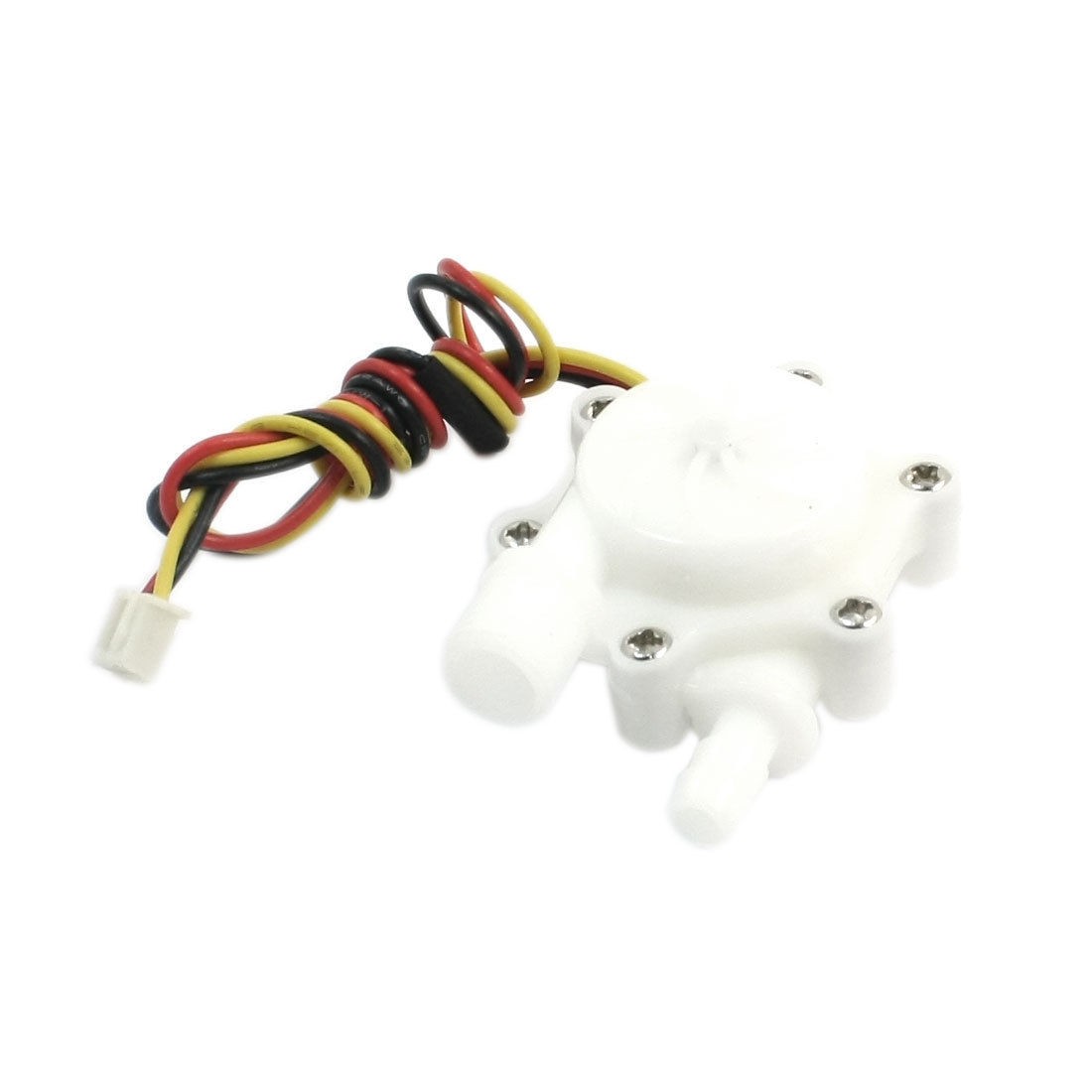

G1/4 Male Thread 6mm Outlet Outer Dia Water Flow Sensor 0.25-3.5L/min

G1/4 Male Thread 6mm Outlet Outer Dia Water Flow Sensor 0.25-3.5L/min

More Views

G1/4 Male Thread 6mm Outlet Outer Dia Water Flow Sensor 0.25-3.5L/min
$10.00

Availability: In stock

OR
Description

Details

G1/4 Male Thread 6mm Outlet Outer Dia Water Flow Sensor 0.25-3.5L/min

Product Name Water Flow Sensor
Model SEN-HW06FA
Flow Range 0.25-3.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 0.8Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 56 x 40 x 23mm / 2.4" x 1.6" x 0.91"(L*W*T)
Inlet Outer Diameter G1/4
Outlet Outer Diameter 6mm
Cable Length 33cm / 13"
Body Color White
Weight 25g
Package Content 1 x Water Flow Sensor
