  • G1/4 180 Degree Straight Hall Effect Water Flow Sensor 0.2-2.5L/min 0.8Mpa

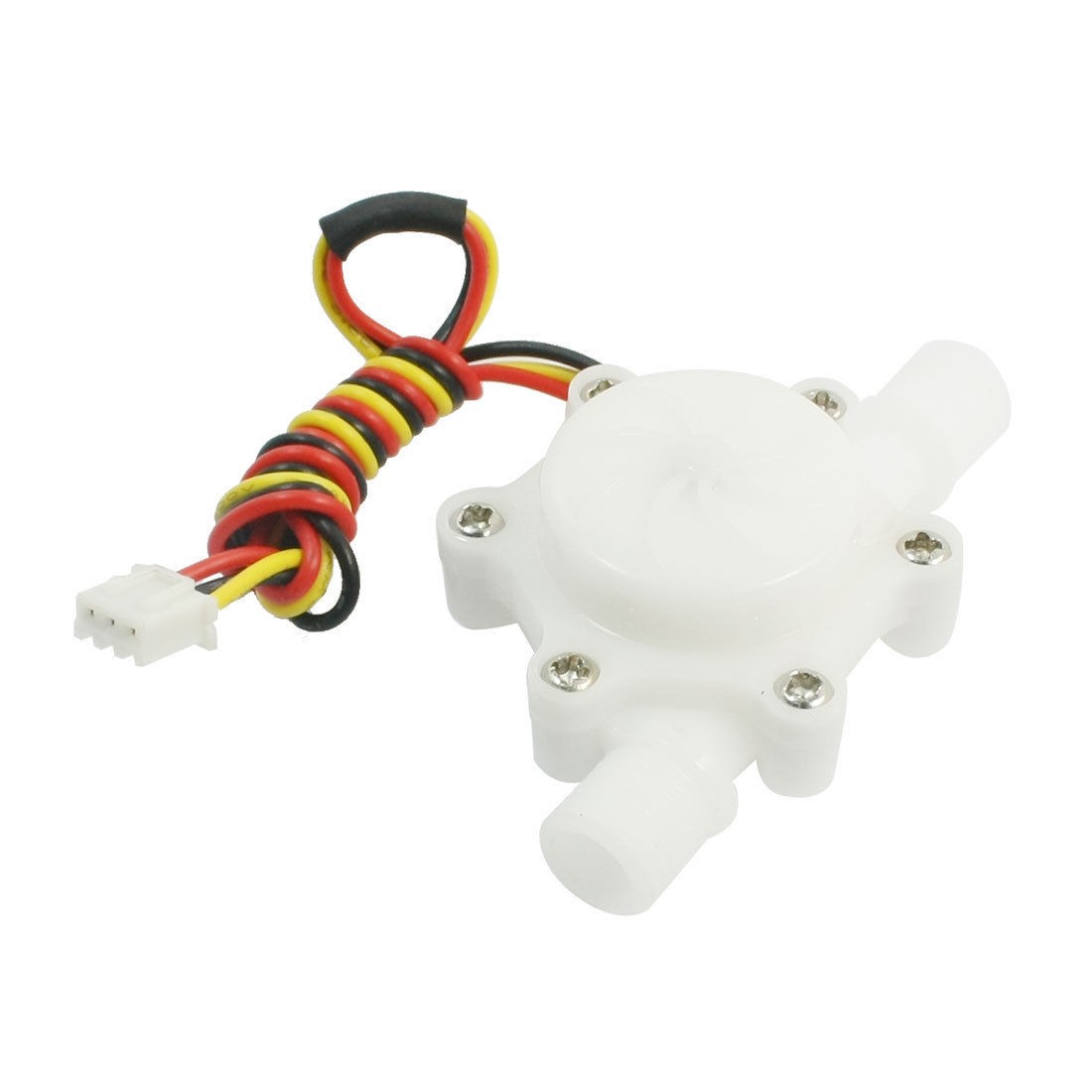

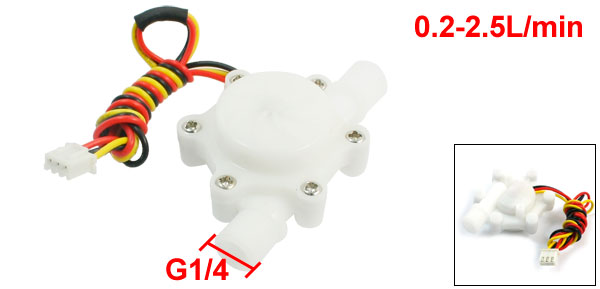

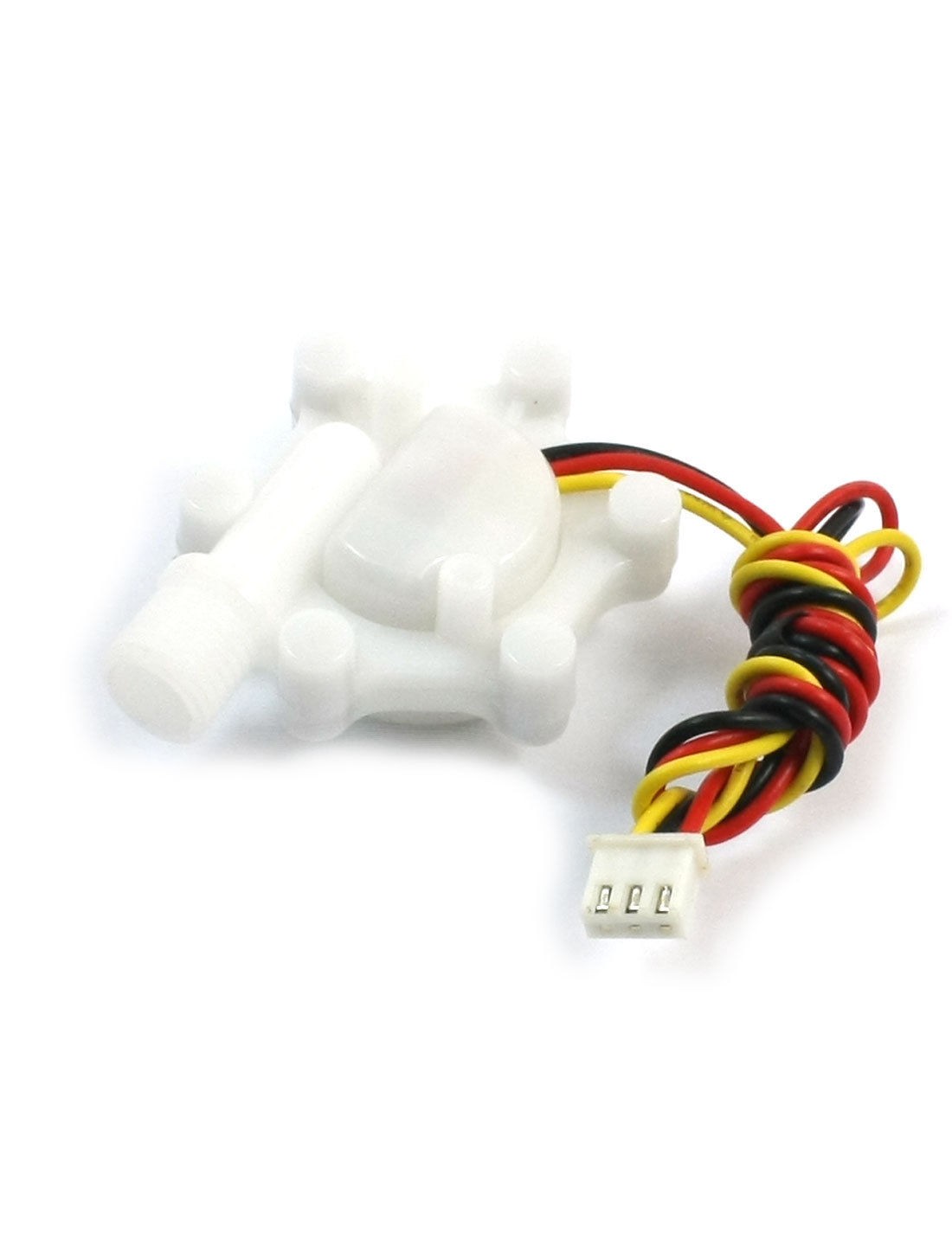

G1/4 180 Degree Straight Hall Effect Water Flow Sensor 0.2-2.5L/min 0.8Mpa

G1/4 180 Degree Straight Hall Effect Water Flow Sensor 0.2-2.5L/min 0.8Mpa

More Views

G1/4 180 Degree Straight Hall Effect Water Flow Sensor 0.2-2.5L/min 0.8Mpa
$10.02

Availability: In stock

OR
Description

Details

G1/4 180 Degree Straight Hall Effect Water Flow Sensor 0.2-2.5L/min 0.8Mpa

Product Name Water Flow Sensor
Model SEN-HZ06W
Type Straight Type
Flow Range 0.2-2.5L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V
Low Level of Pulse Output <0.5V
Max Pressure 0.8Mpa
Insulation Performance(Min.) 100MΩ
Connector Type 3Pin JST Connector
Main Material POM
Total Size 60 x 40 x 22mm / 2.4" x 1.6" x 0.87"(L*W*T)
Outlet=Inlet Outer Diameter G1/4
Cable Length 33cm / 13"
Body Color White
Weight 26g
Package Content 1 x Water Flow Sensor
