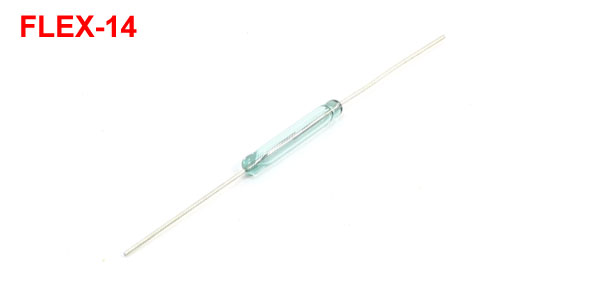

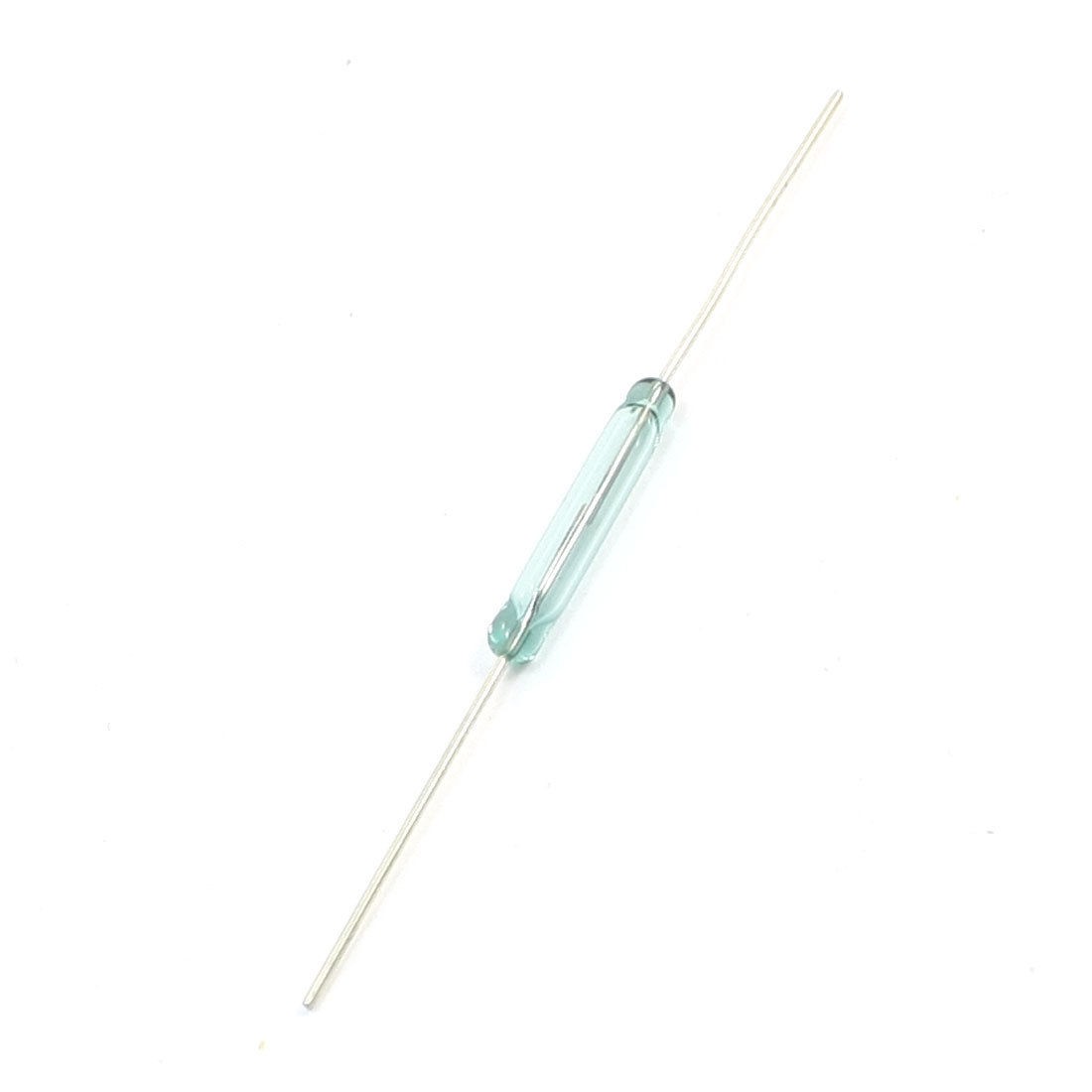

FLEX-14 DC 200V 0.5A Metal Wire Axial Lead Glass Tube Reed Switch

More Views

$3.44

Availability: In stock

Qty:

Description

Product Name	Reed Switch
Model	FLEX-14
Contact Type	NO(Normal Open)
Max. Contact Rating	10W
Max. Switching Voltage	DC 200V
Max. Switching Current	0.5A
AT Range	10-13
Max. Onload Current	0.8A
Min. Breakdown Voltage	DC 600V
Max. Initial Contact Resistance	100mOhm
Min. Insulation Resistance	1012Ohm
Max. Release Time	0.2ms
Max. Operate Time	0.6ms
Tube Size (Approx.)	13 x 2mm/ 0.51" x 0.08" (L*D)
Lead Terminal Size(Each Side)	16 x 0.3mm/ 0.67" x 0.012"(L*D)
Total Length (Approx.)	45mm/1.8"
Material	Glass, Metal
Color	Gold Tone, Clear
Weight	1g
Package Content	1 x Reed Switch
