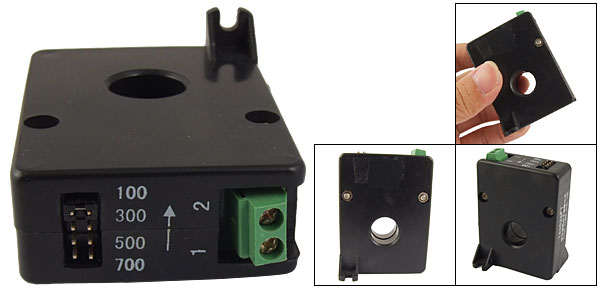

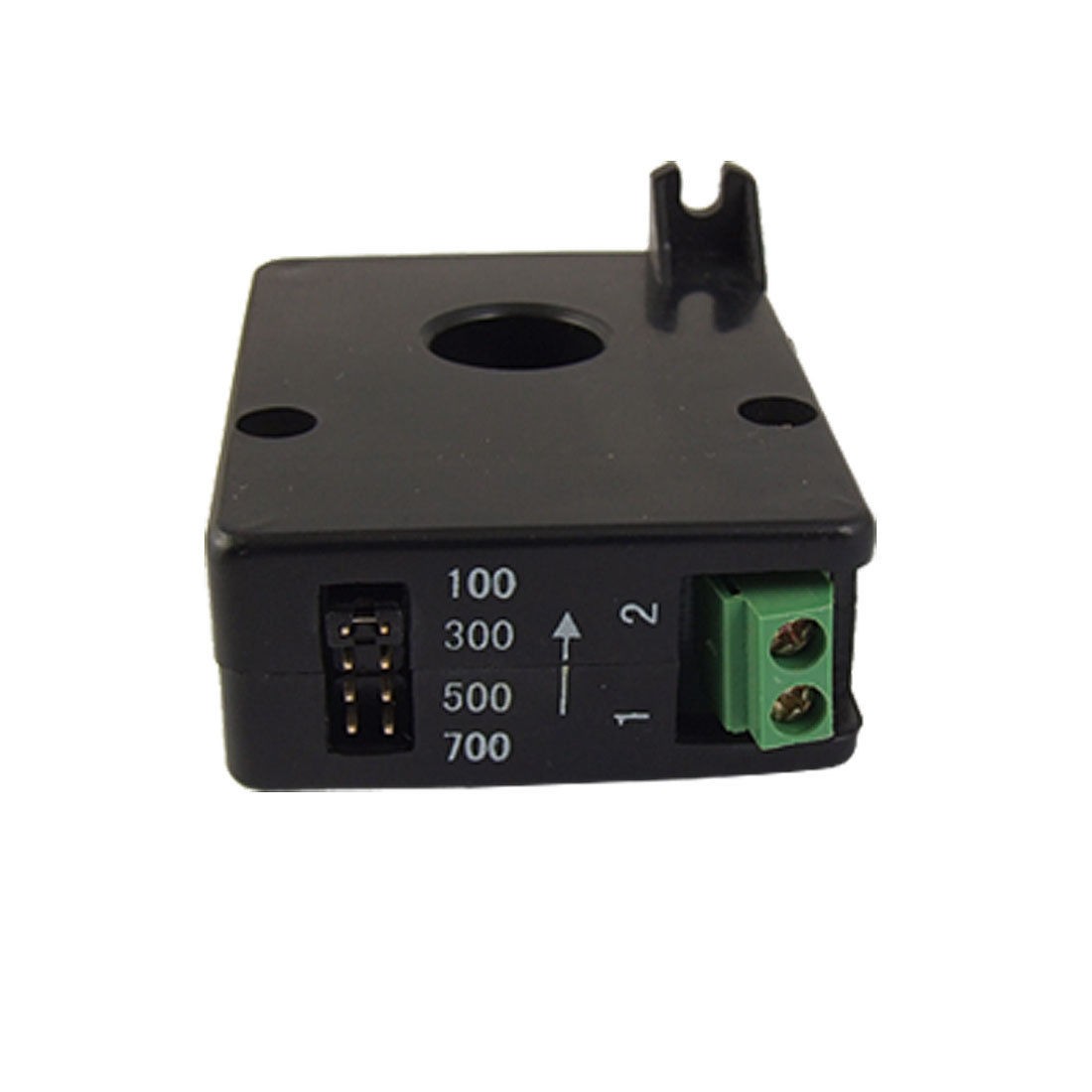

Epoxy Resin Embedding Four-range Current Transformer

Product NameCurrent Transformer
Model No.TA3523FT
Working Frequency20Hz-20KHz
Dielectric Strength6000V AC/1min
Operational Temperature0°C~+70°C

Secondary Line Diameter

0.18mm

Secondary Turns(n)

1750
Max. Measuring Current 10A(at 100 Range)Sensibility 200mV/A
Max. Measuring Current 30A(at 300 Range)Sensibility 66.7mV/A
Max. Measuring Current 50A(at 500 Range)Sensibility 40mV/A
Max. Measuring Current 70A(at 700 Range)Sensibility 28.6mV/A
Measuring Error<=0.5%
Central Hole Diameter14mm/0.55"
Mounting Hole Diameter4mm/0.157"
Overall Size(Approx.)45 x 36 x 60mm/0.68" x 0.68" x 0.27"(L*W*H)
ColorBlack
Weight91g
Package Content1 x Current Transformer
