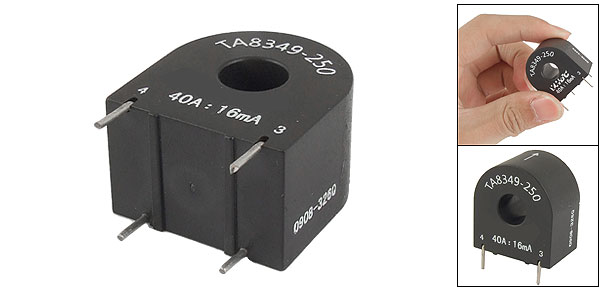

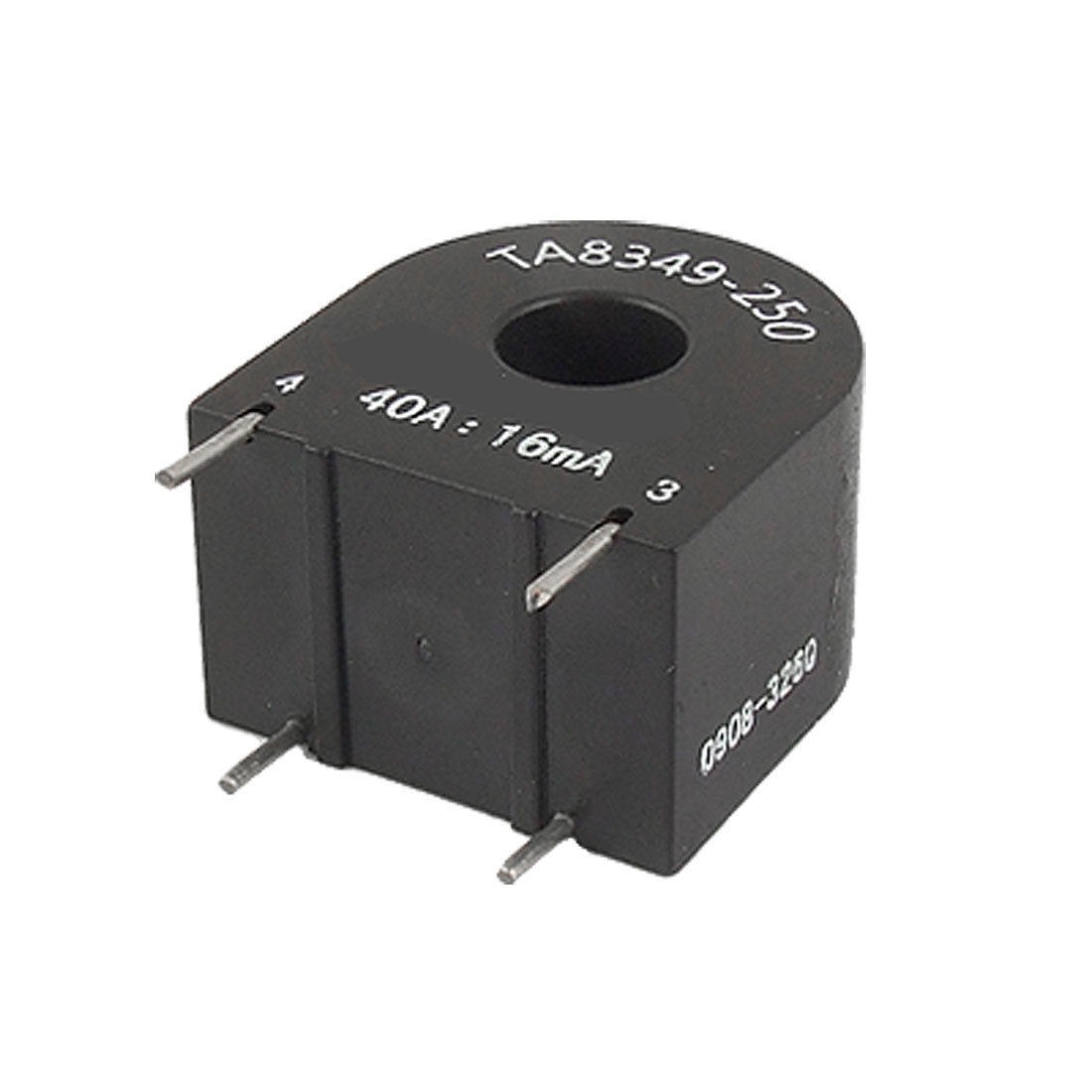

Epoxy Resin Embedding Current Transformer TA8349-250

Epoxy Resin Embedding Current Transformer TA8349-250

More Views

Epoxy Resin Embedding Current Transformer TA8349-250
$11.95

Availability: In stock

OR
Description

Details

Epoxy Resin Embedding Current Transformer TA8349-250

Product NameCurrent Transformer
Model No.TA8349-250
Ratio1:2500
Input Current0-40A
Output Current0-16mA
Sample Resistance300Ω
Sampling Voltage4.8V
Nonlinear Scale<=0.2%
Phase Drift<=15'
Working Frequency20Hz-20KHz
Working Temperature-55°C--+85°C
Dielectric Strength6KV AC/1min
Pin Diameter1mm/0.039"
Distance Between Two Pins19mm/0.748"; 15mm/0.59"; 15.5mm/0.61"
Shot-hole Diameter9mm/0.35"
Mounting Height28mm/1.1"
Overall Size(Approx.)26 x 17 x 33mm/1.02" x 0.67" x 1.3"(L*W*H)
ColorBlack
Weight23g
Package Content1 x Current Transformer
