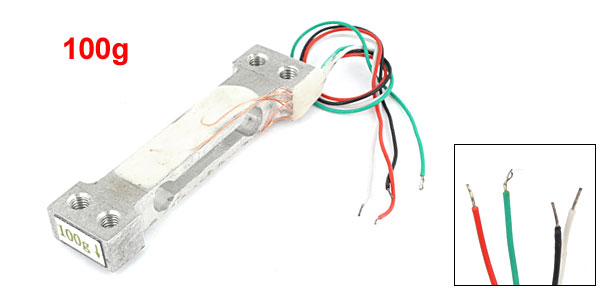

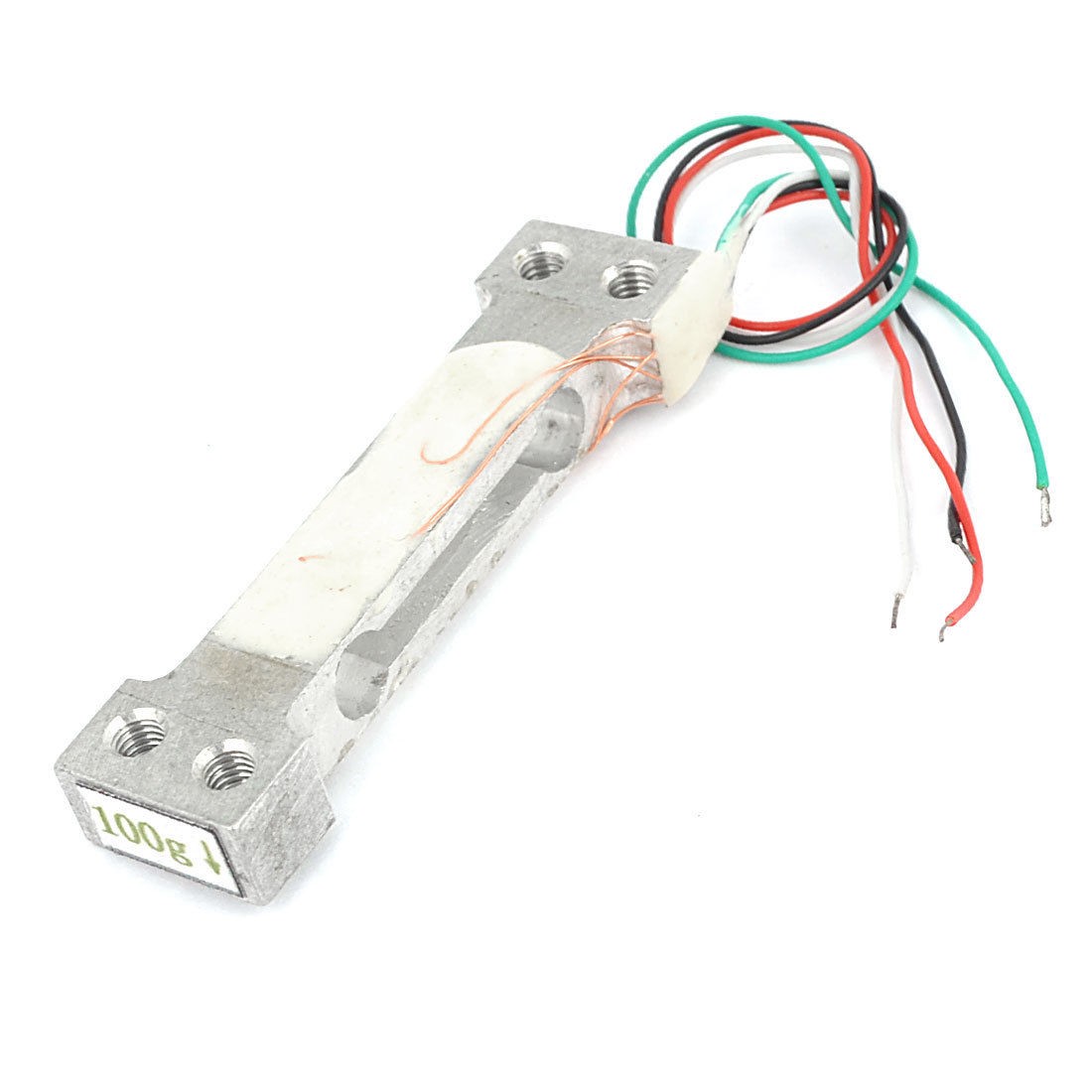

Electronic Balance Four Wire Weighing Load Cell Sensor 100g
Product Name Weighing Load Cell Capacity 100g Sensitivity 0.7±0.1mV/V Bridge Model Full Bridge Zero Balance ±0.1MV/V Non-linearity ±0.03% Hysteresis Error ±0.04% Repeatability ±0.03% Creep ±0.05% Insulation Resistance (100V) =/>2000M Input Impedance 1000±10%Ω Output Impedance 1043±10%Ω TC SPAN 0.10±0.09%FS/15°C TC Zero ±1.0%FS/15°C Operating Temperature Range 0°C~40°C Storage Temperature Range -20°C~70°C Reference Excitation Voltage =/<100V DC Safe Load 150% Max Load 200% Overall Size 4.7 x 1.2 x 0.63cm/1.85" x 0.47" x 0.2"(L*W*H) Thread Diameter 2.5mm/0.098" Cable Length 9cm/3.5" Material Aluminium Alloy Color As Picture Shown Net Weight 7g Package Content 1 x Weighing Load Cell - Reviews
-
