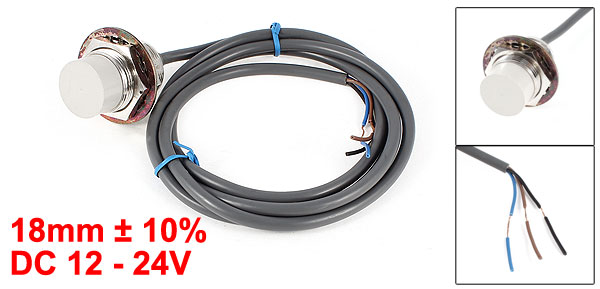

E2E-X18ME1 18mm NPN Normal Open Inductive Sensor Proximity Switch DC 12-24V

Product Name Proximity Sensor
Model E2E-X18ME1
Detecting Distance 18mm ± 10%
Standard Detecting Target 54 x 54 x 1mm
Setting Distance 0 to 14.0
Power Supply DC 12 - 24V
Current Consumption Max. 10mA
Response Frequency 100Hz
Residual Voltage Max. 15V
Control Output 200mA
Insulation Resistance Min. 50M ohm
Dielectric Strength 1500V AC, 50/60Hz for 1 Minute
Ambient Temperature -25C to 70C
Protection IP67
Output Type NPN  NO(Normal Open)
Column Sensor Diameter 27mm/1.1"
Thread Diameter 30mm/1.2"
Cable Length 157cm/5.2ft
Weight 120g
Package Content 1 x Proximity Sensor
