Double Action 25/64" Bore 19/32" Stroke 1.0 Mpa Stainless Steel Air Cylinder

Double Action 25/64" Bore 19/32" Stroke 1.0 Mpa Stainless Steel Air Cylinder

More Views

Double Action 25/64" Bore 19/32" Stroke 1.0 Mpa Stainless Steel Air Cylinder
$8.13

Availability: In stock

OR
Description

Details

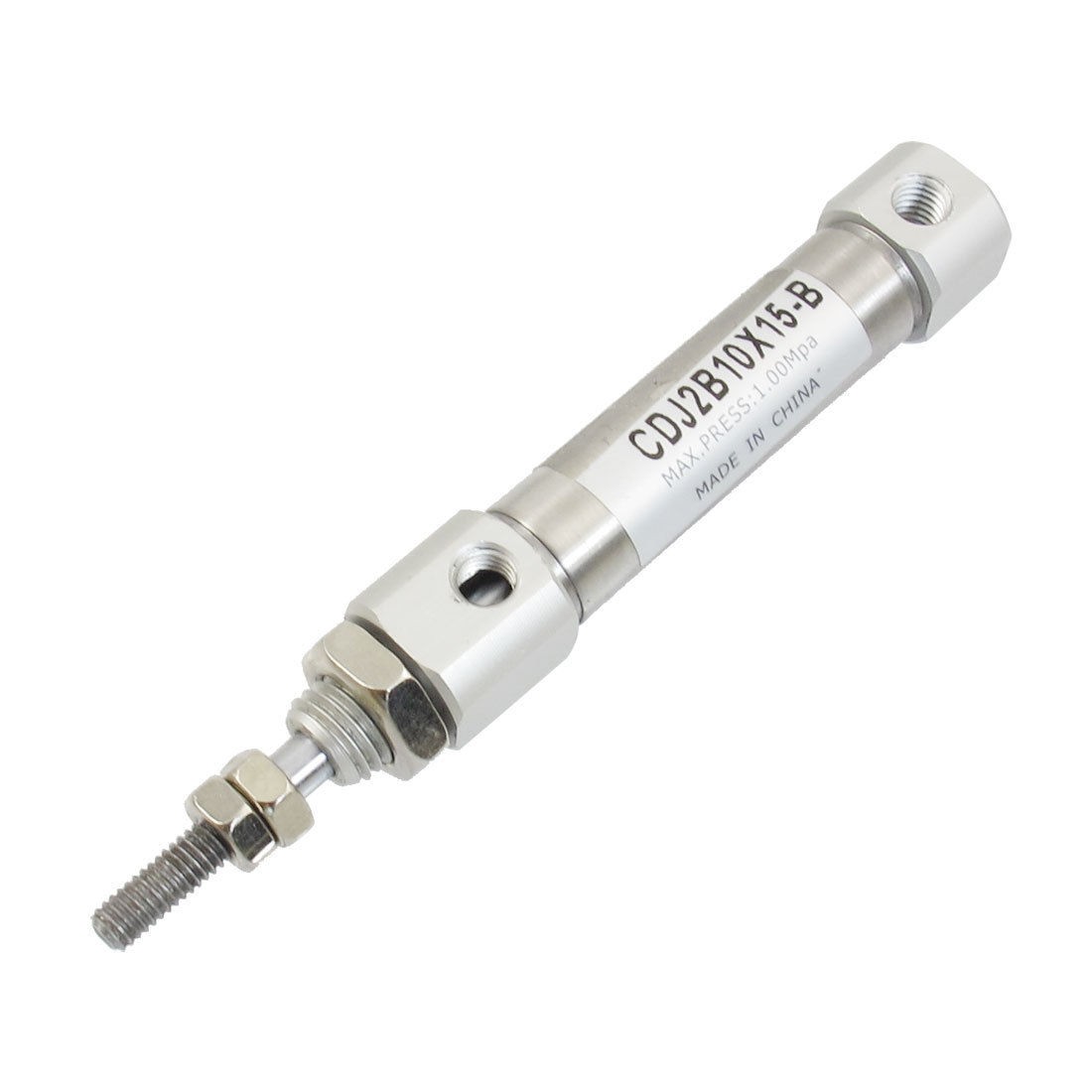

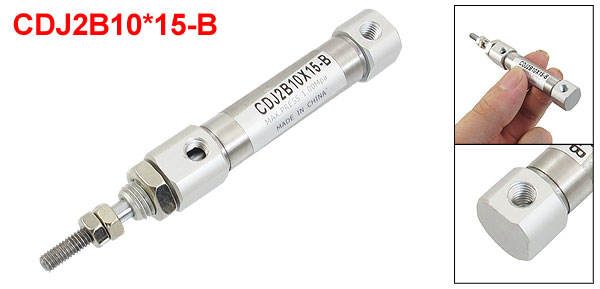

Double Action 25/64" Bore 19/32" Stroke 1.0 Mpa Stainless Steel Air Cylinder

Product Name Air Cylinder
Model CDJ2B10*15-B
Action Double Action
Rod Type Single Rod
Bore 10mm/ 25/64"
Stroke 15mm/ 19/32"
Piston Rod Hex Size 7mm/ 0.28"
Piston Rod Thread Diameter 4mm/ 0.16"
Piston Rod Thread Length 10mm/ 0.39
Thread Diameter 8mm/ 0.31"
Thread Hole Diameter 4.5mm/ 0.18"
Max Press 1.0 Mpa
Overall Size(Approx) 89 x 14mm/ 3.5" x 0.6"(L*Max Dia.)
Material Stainless Steel, Aluminum
Color Silver Tone
Weight 27g
Package Content 1 x Air Cylinder
