  • DC3V-18V 1-30L/min G1/4 Hall Effect Water Flow Sensor for Water Purifier

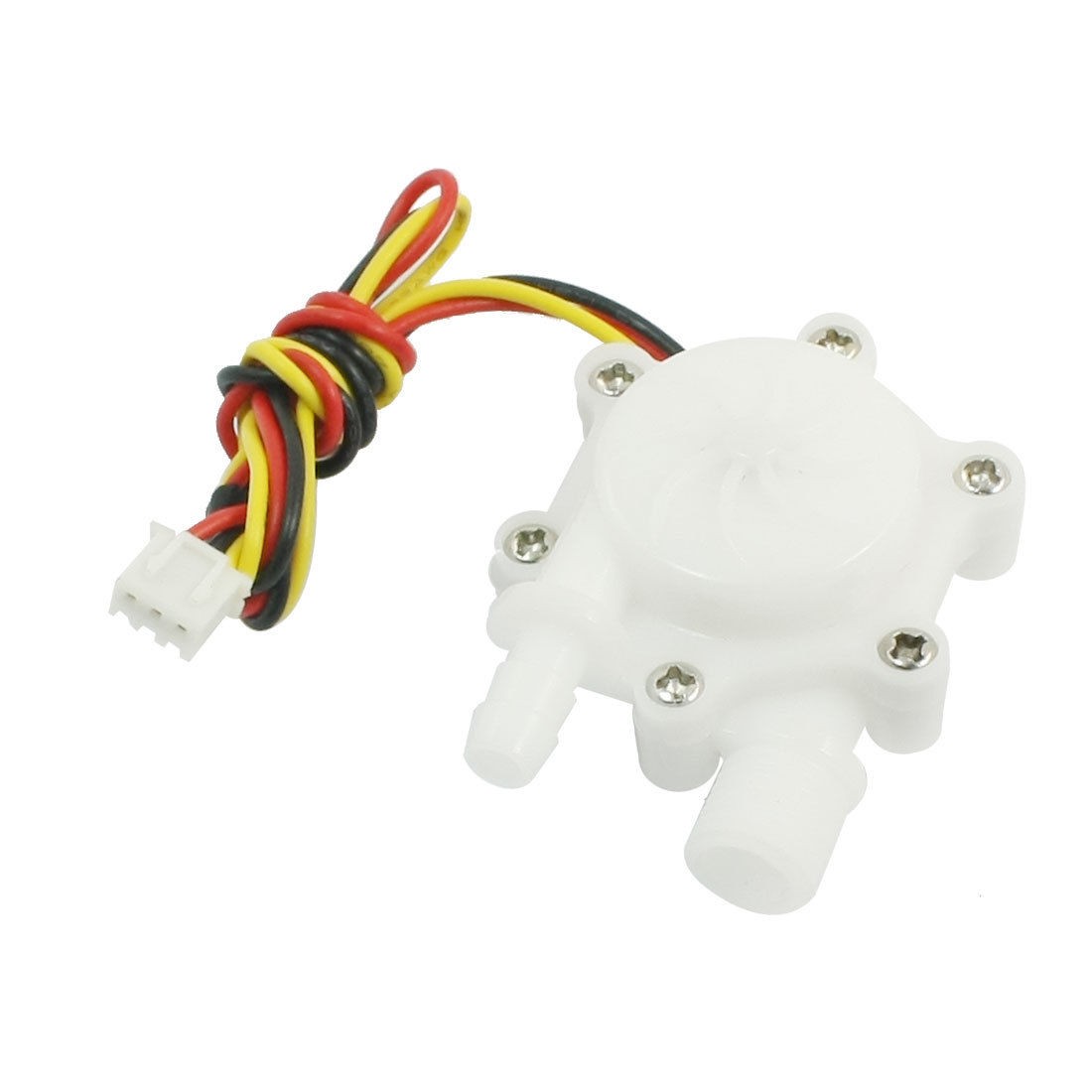

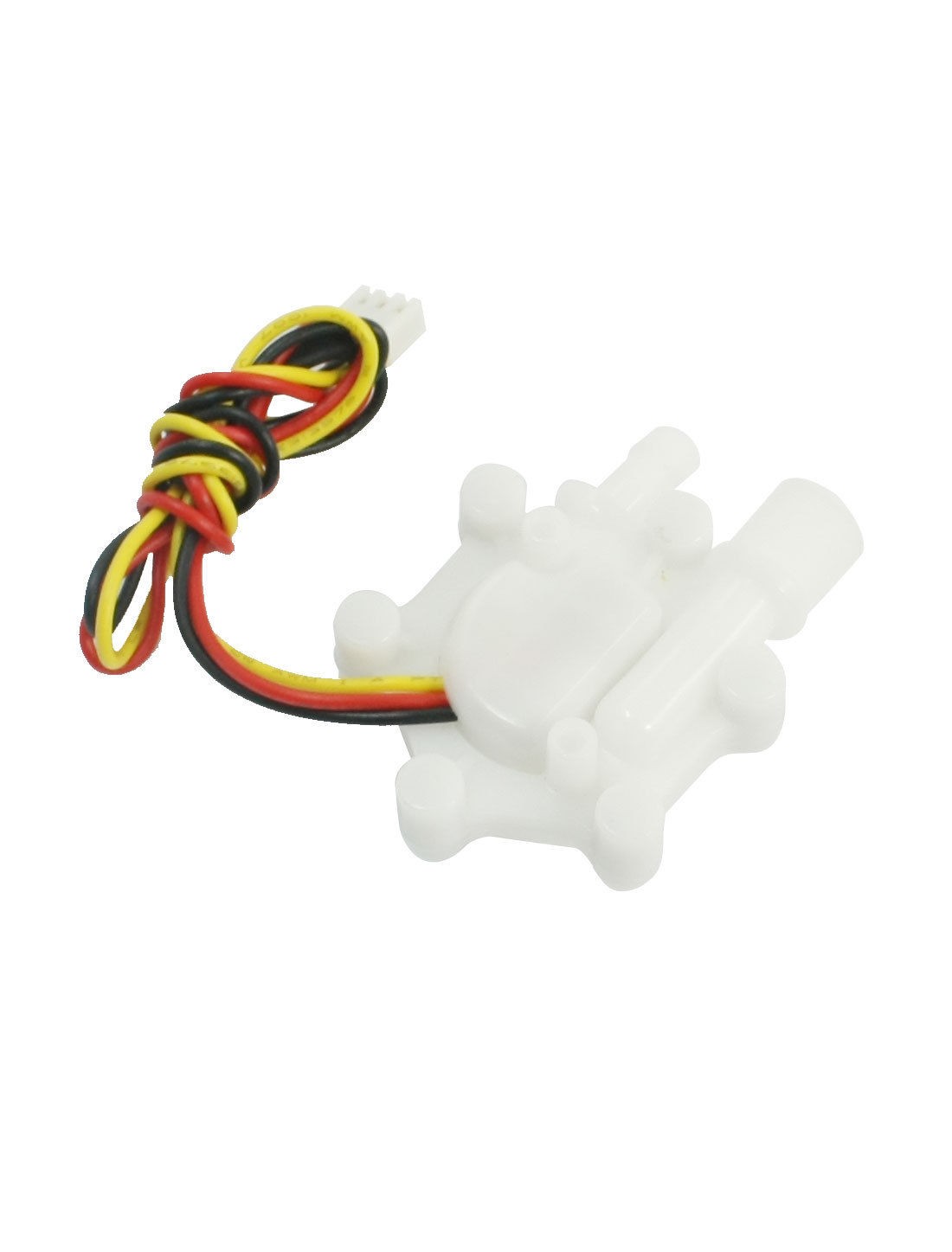

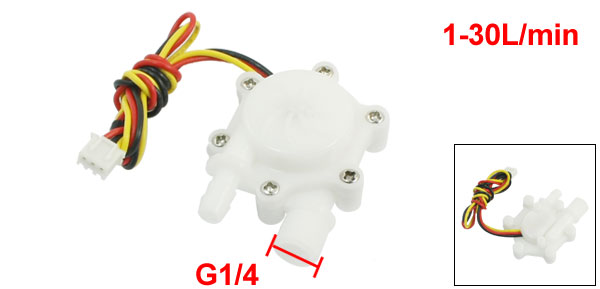

DC3V-18V 1-30L/min G1/4 Hall Effect Water Flow Sensor for Water Purifier

DC3V-18V 1-30L/min G1/4 Hall Effect Water Flow Sensor for Water Purifier

More Views

DC3V-18V 1-30L/min G1/4 Hall Effect Water Flow Sensor for Water Purifier
$10.00

Availability: In stock

OR
Description

Details

DC3V-18V 1-30L/min G1/4 Hall Effect Water Flow Sensor for Water Purifier

Product Name Water Flow Sensor
Model SEN-HW06FB
Flow Range 1-30L/min
Working Voltage & Current DC3V-18V, 10mA
Rated Voltage DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V (DC5V)
Low Level of Pulse Output <0.5V (DC5V)
Max Pressure 1.75Mpa
Insulation Performance 100MΩ
Connector Type 3Pin JST Connector
Main Material Plastic
Total Size 55 x 40 x 22mm / 2.2" x 1.6" x 0.87"(L*W*T)
Inlet Diameter 6mm/0.24"
Male Thread Port Diameter G1/4
Cable Length 32cm / 12.6"
Body Color White
Weight 25g
Package Content 1 x Water Flow Sensor
