  • DC3V-18V 0.2-2.5 L/min G1/4 Male Thread Hall Effect Water Flow Sensor

DC3V-18V 0.2-2.5 L/min G1/4 Male Thread Hall Effect Water Flow Sensor

DC3V-18V 0.2-2.5 L/min G1/4 Male Thread Hall Effect Water Flow Sensor

More Views

DC3V-18V 0.2-2.5 L/min G1/4 Male Thread Hall Effect Water Flow Sensor
$10.04

Availability: In stock

OR
Description

Details

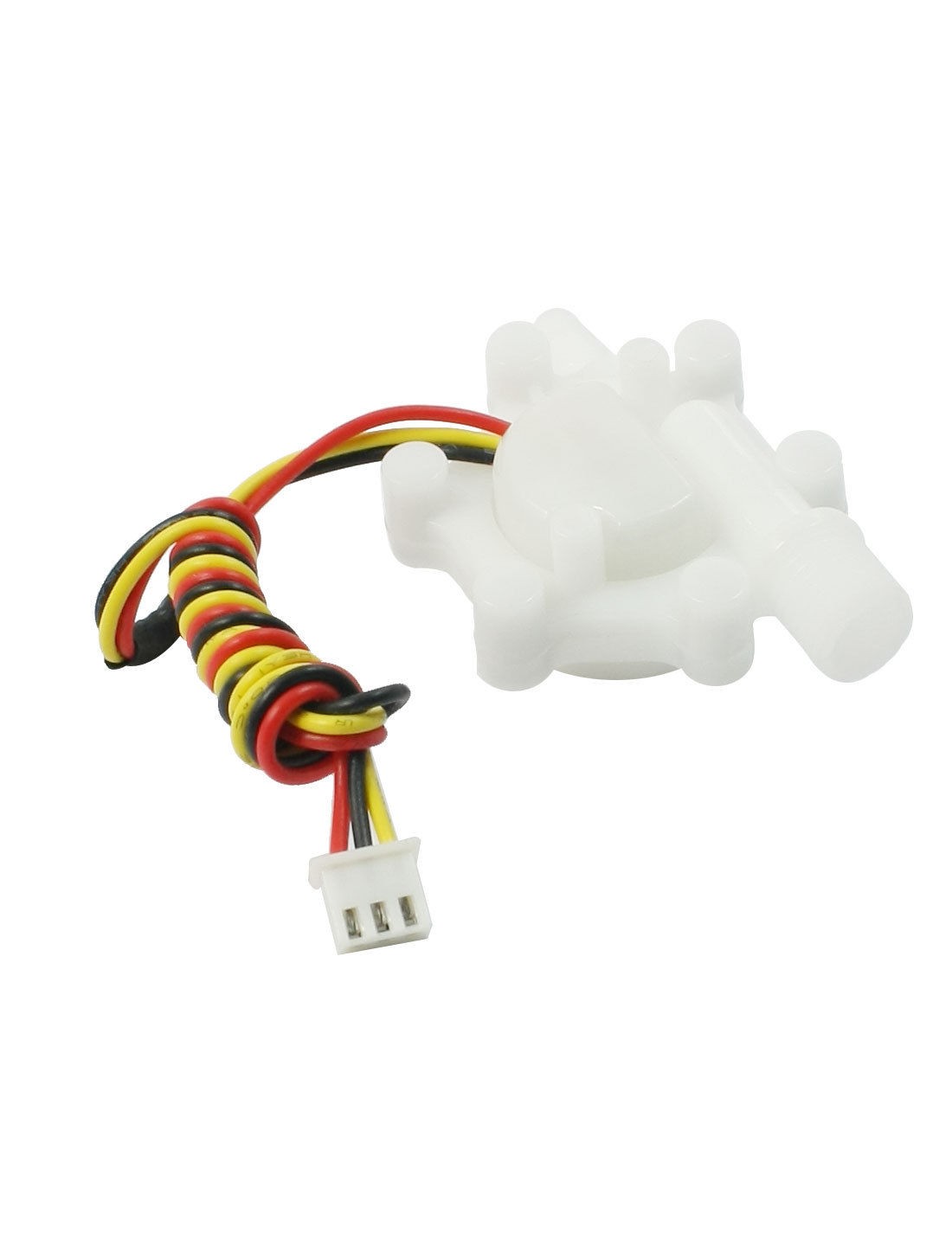

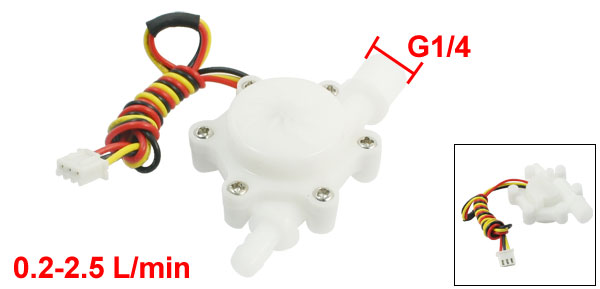

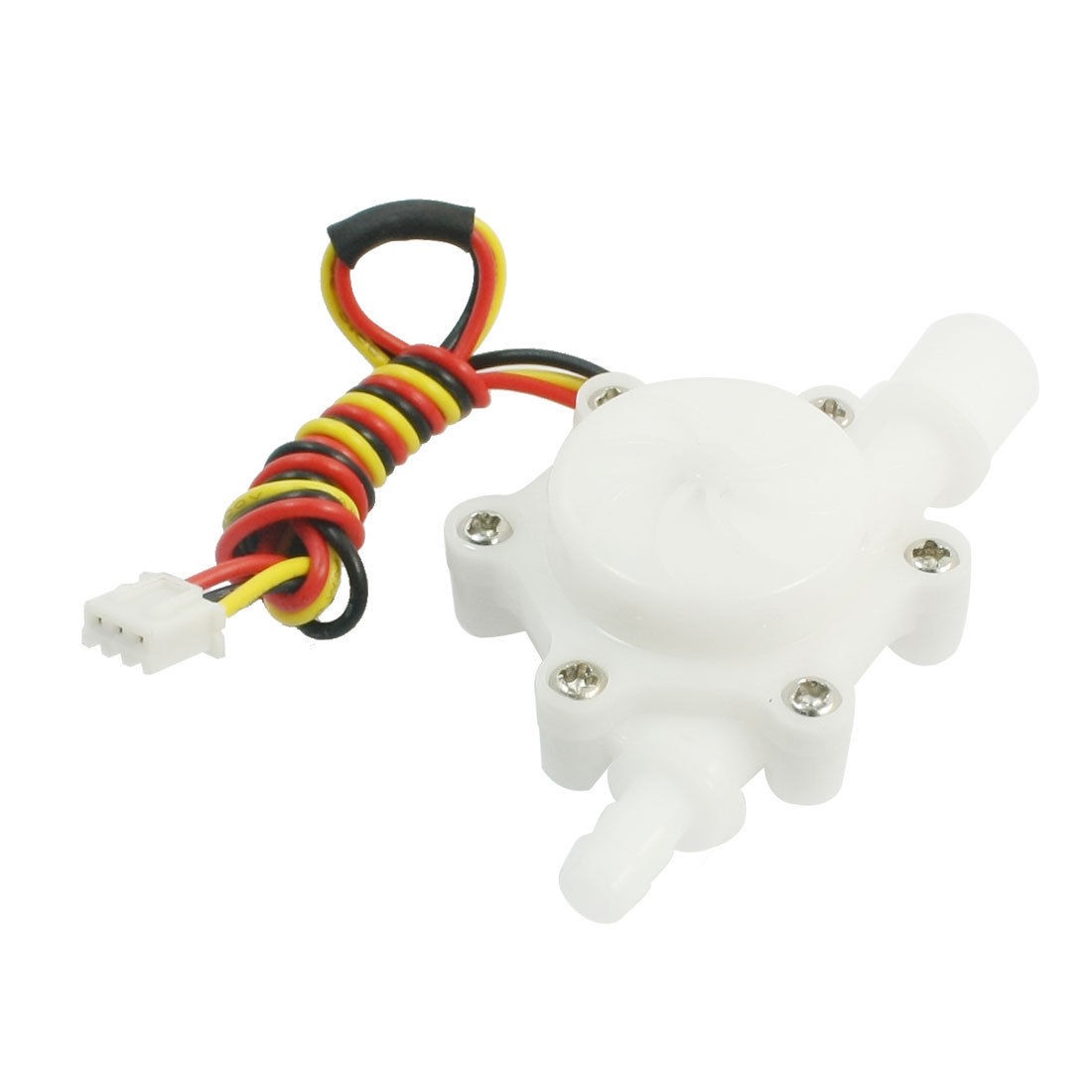

DC3V-18V 0.2-2.5 L/min G1/4 Male Thread Hall Effect Water Flow Sensor

Product Name Water Flow Sensor
Flow Range 0.2-2.5 L/min
Voltage & Current DC3V-18V, 10mA
Standard DC5V
Pulse Duty Factor 50 %
High Level of Pulse Output >4.5V (DC5V)
Low Level of Pulse Output <0.5V (DC5V)
Max Pressure 0.8Mpa
Insulation Performance 100MΩ
Connector Type JST Connector
Main Material Plastic
Total Size 63 x 40 x 22mm / 2.5" x 1.6" x 0.87"(L*W*T)
Outlet Diameter 6mm/0.24"
Male Thread Port Diameter G1/4
Cable Length 32cm / 12.6"
Weight 26g
Package Content 1 x Water Flow Sensor
