- Description
-
Details

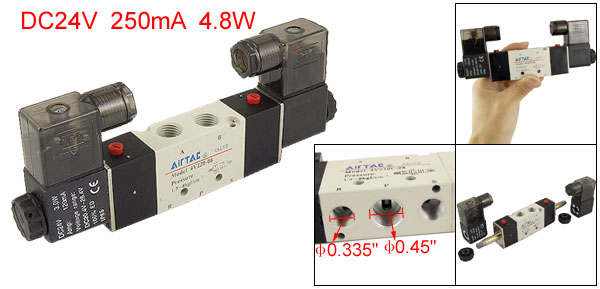

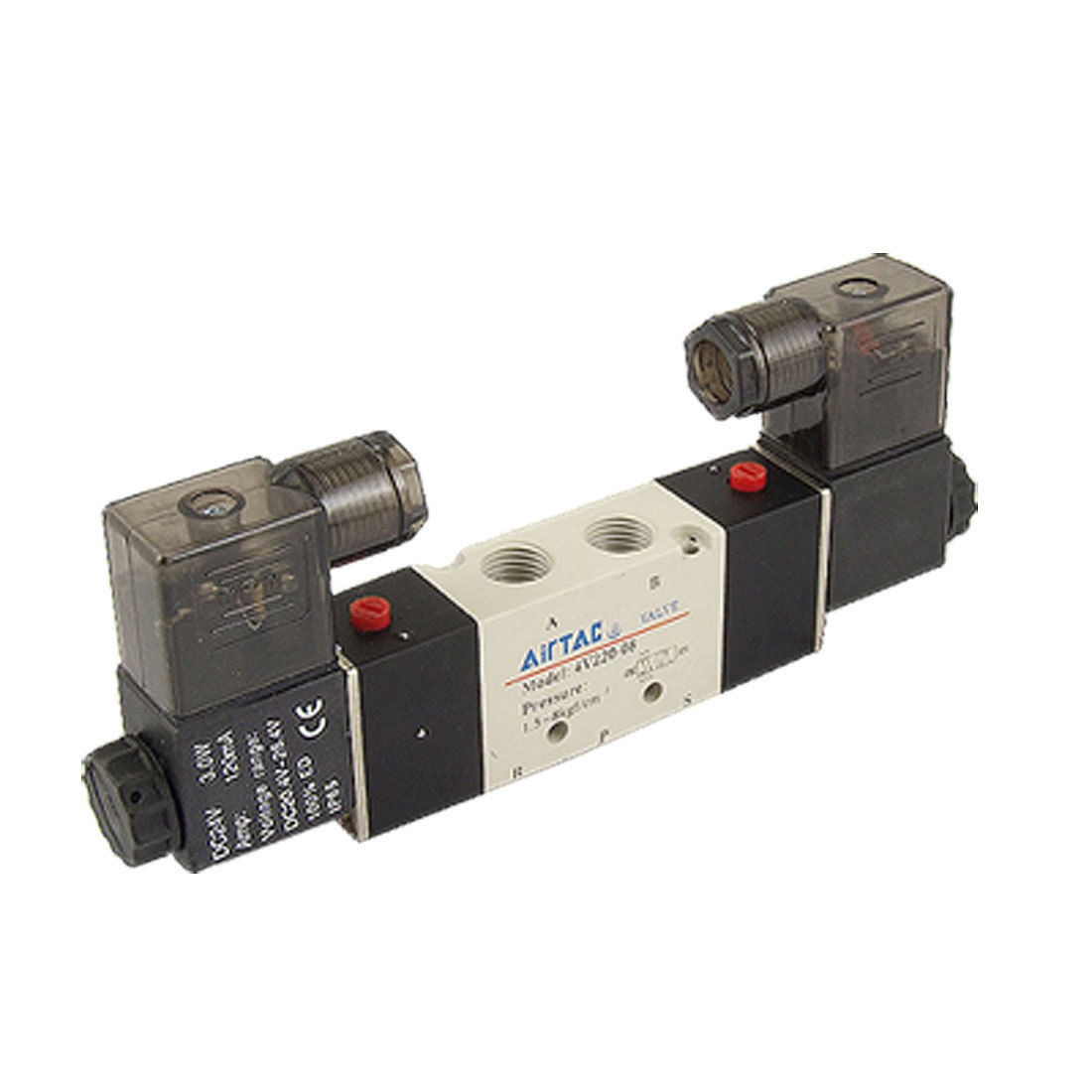

DC24V Inner Guide Type 2 Position 3 Way Solenoid Valve
Product Name Pneumatic Solenoid Valve Model 4V220-08 Working Medium
40 Micron Filtered Air
Motion Pattern
Inner Guide Type
Type 2 Position 3 Way Material Resin, Plastic Working Voltage/Current/Power DC24V, 250mA, 4.8W
Temperature Rise 35°C Operating Pressure 1.5 ~ 8kgf/cm² Effective Area 16mm² Port Connection Air Inlet =Air Outlet=PT 1/4, Exaust =PT 1/8 AirInlet Diameter 1.15cm/ 0.45" Air Exhaust Diameter 0.85cm/0.335 Black Pull Into Diameter 1cm/ 0.39" Wiring Form
Direct Lead Wire or Connector Total Size (Approx.) 17.5 x 6.7 x 2.2cm / 6.9" x 2.6" x 0.87" (L * W * T) Color White, Black Weight 314g Package Content 1 x Pneumatic Solenoid Valve - Reviews
-
